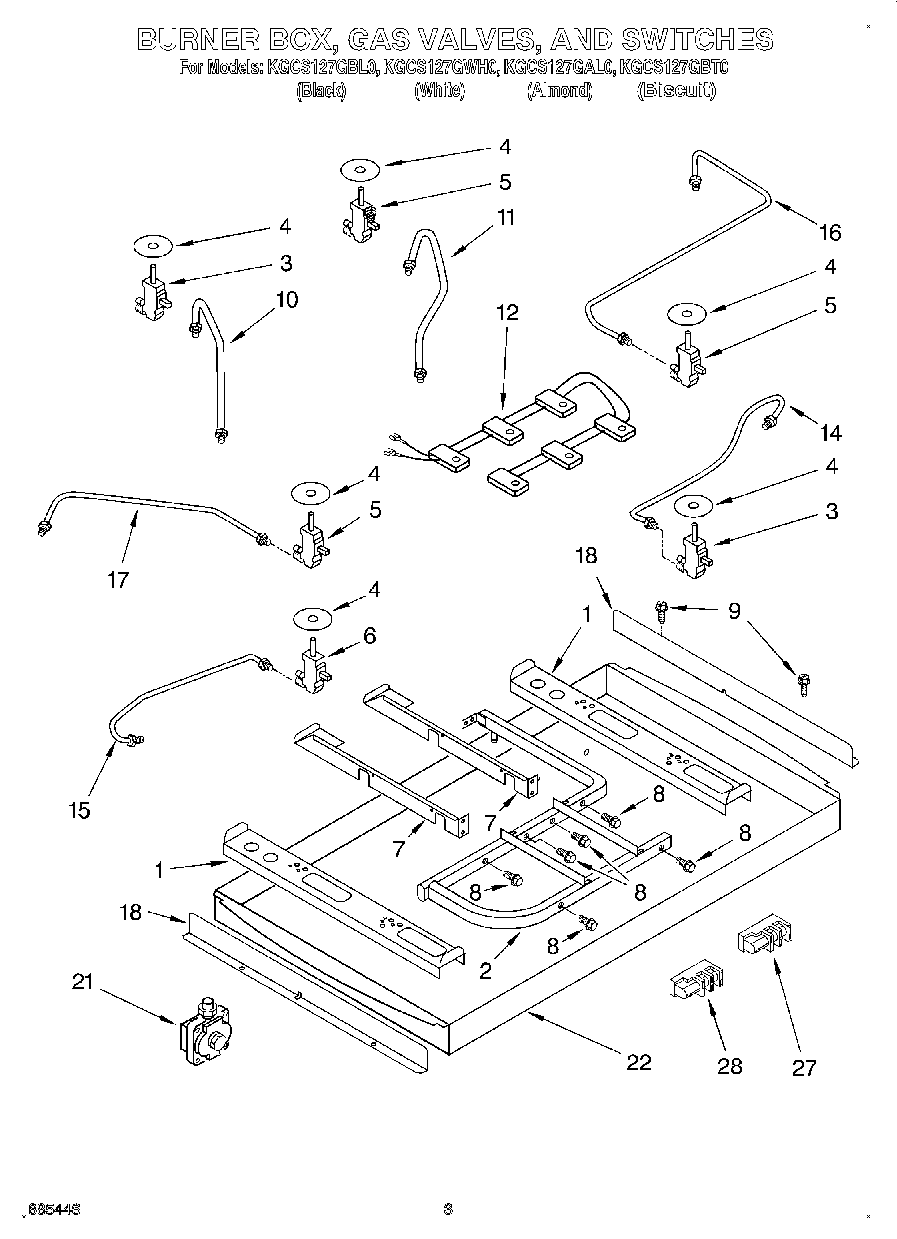

KGCS127GBL0 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Hardware, Mounting
Conversion Kit Natural Gas To L.P.
Harness, Jumper
Screw
28“
15“
Seal, Foam-Cooktop
Wiring Diagram
WP3177991 Whirlpool Screw
4173634 Whirlpool Bushing
W10392007 Whirlpool Power Cord
Safer Cooking Tips
Installation Instructions
8186533 Whirlpool Hardware
Nut, Tinnerman (2)
Use & Care Guide
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
8Bolt, Gas Valve
10Tubing, Gas Burner (LC)
11Tubing, Gas Burner (RC)
12Harness & Switches
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
21Regulator, Pressure
22Burner Box
27WP8053421 Whirlpool Oven Spark Module
28Module Spark Reignition
