KGCS166GBT0 02 – SECTION

Products

PositionProduct
Hardware, Mounting
Conversion Kit Natural Gas To L.P.
Wire, Ground
Use & Care Guide
LITERATURE PARTS (Wiring Diagram)
Conversion Instructions
28“
15“
4173634 Whirlpool Bushing
W10392007 Whirlpool Power Cord
Safer Cooking Tips
Screw
8186533 Whirlpool Hardware
Nut, Tinnerman (2)
Installation Instructions

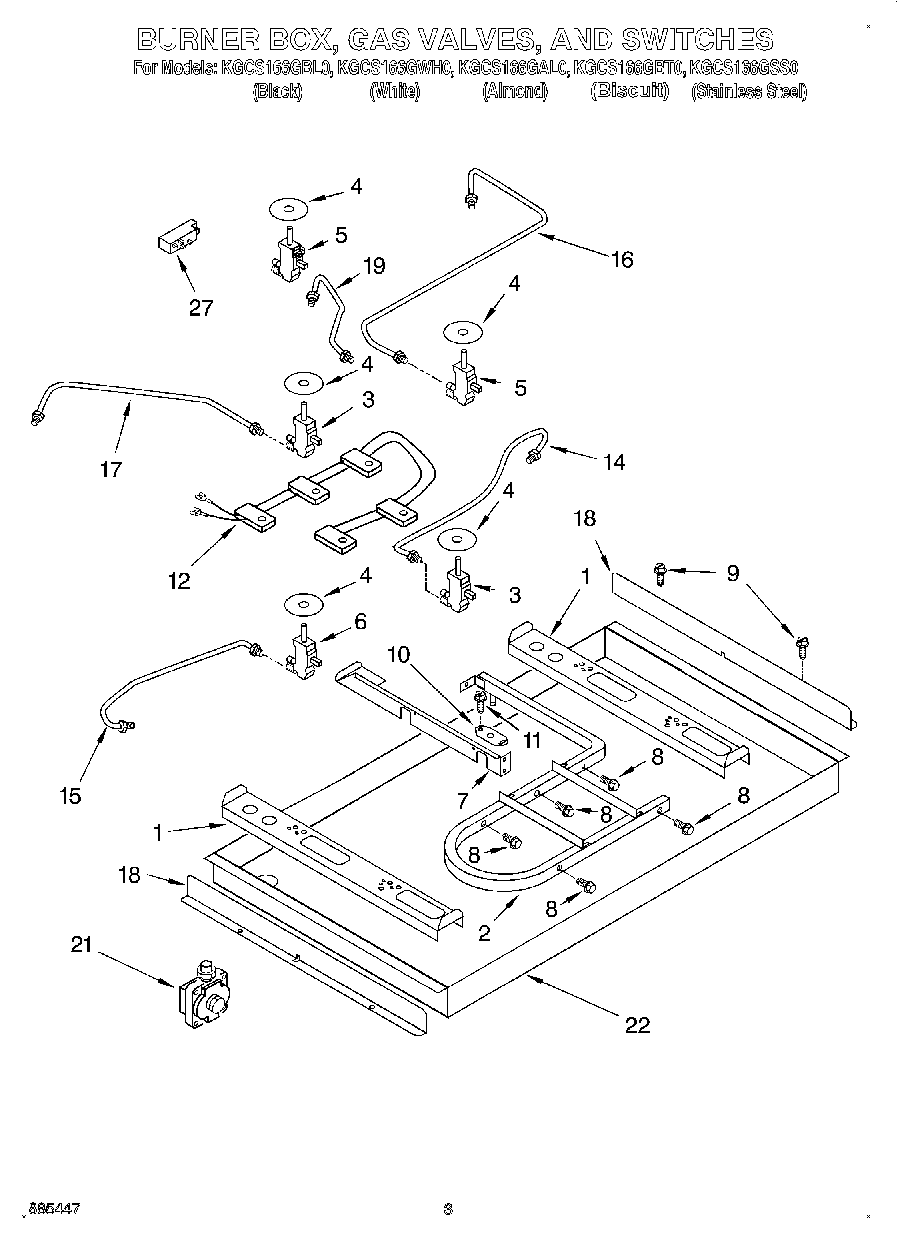

1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6Valve, Burner (Silver)
7Rail, Center
8Bolt, Gas Valve
9WP3177991 Whirlpool Screw
103192491 Whirlpool Support Bracket
11W10491985 Whirlpool Screw
12Harness & Switches
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
19Tubing, Gas Burner (CR)
21Regulator, Pressure
22Burner Box
27WPW10110486 Whirlpool Spark Module
