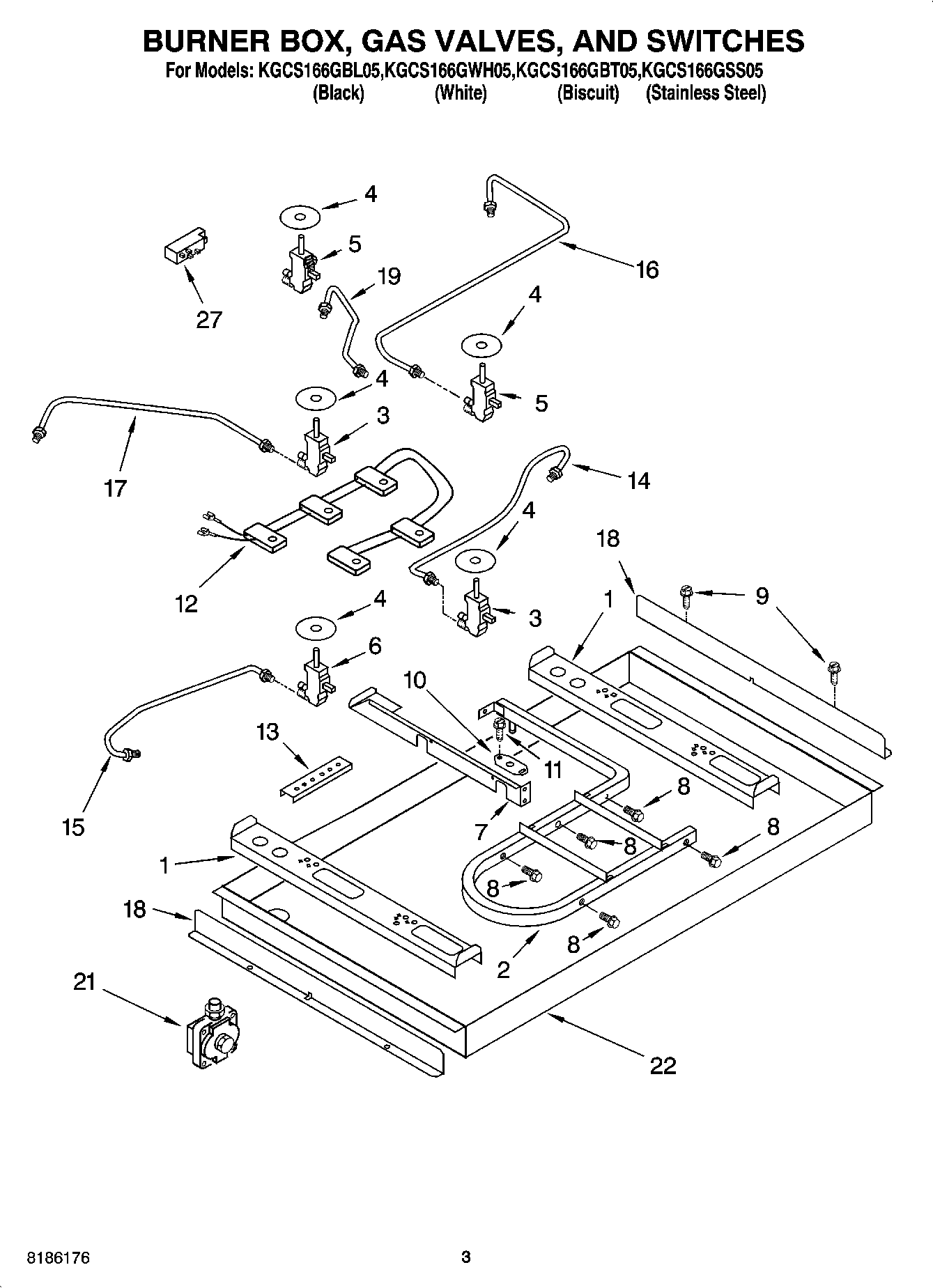

KGCS166GBT05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	WP4456816 Whirlpool Burner Valve
3	WP4456817 Whirlpool Burner Valve
3	Valve, Burner (Bronze)
4	WP3188425 Whirlpool Seal Switch
5	VALVE
6	VALVE
7	Rail, Center
8	WP3186217 Whirlpool Screw
9	WP12990527 Whirlpool Microwave Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	WP4456901 Whirlpool Wire Harness
13	WP3400093 Whirlpool Screw
13	8186533 Whirlpool Hardware
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
19	Tubing, Gas Burner (CR)
21	Regulator, Pressure
22	Burner Box
27	Hardware Kit (Mounting)
27	W10392007 Whirlpool Power Cord
27	WIRING HARNESS PARTS
27	Miscellaneous
27	FOLLOWING PARTS NOT ILLUSTRATED
27	4173634 Whirlpool Bushing
27	WP3177991 Whirlpool Screw
27	WPW10110486 Whirlpool Spark Module
27	4456627 Whirlpool Wire Harness
27	8285402 Whirlpool Oven Grounding Wire
27	4456626 Whirlpool Wire
27	WP3192741 Whirlpool LP Conversion Kit
