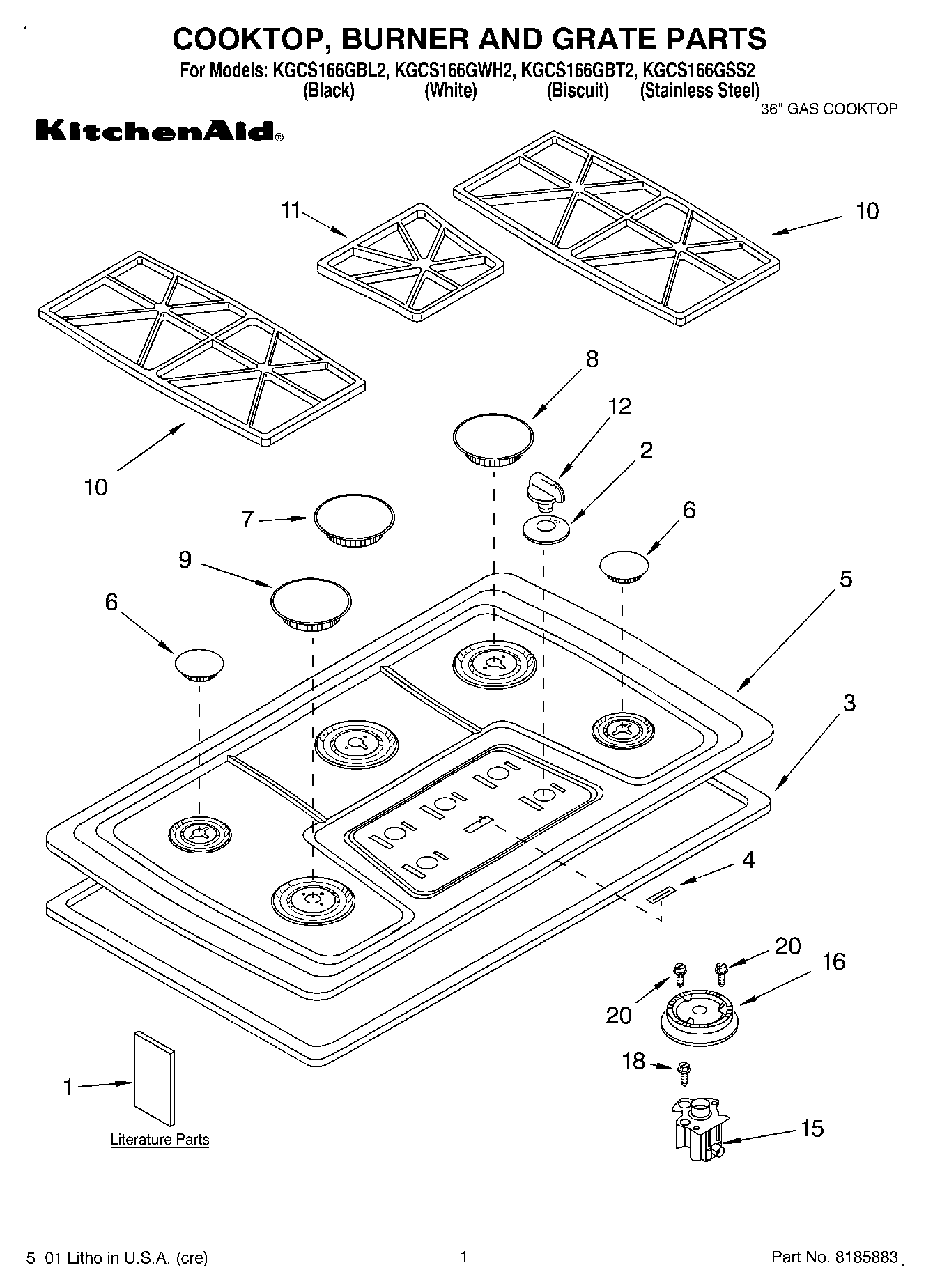

KGCS166GBT2 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	LITERATURE PARTS (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	LP Conversion Instructions
2	Collar, Knob (Biscuit)
2	WP4457192 Whirlpool Cooktop Black Bezel Knob
2	Collar, Knob (White)
3	Seal, Foam
4	Nameplate (White)
4	Nameplate (Black)
4	Nameplate (Biscuit)
5	Cooktop (Stainless Steel)
5	Cooktop (Biscuit)
5	Cooktop (Black)
5	Cooktop (White)
6	Cap, (RF) (LR) (Biscuit)
6	Cap, (RF) (LR) (White)
6	Cap, (RF) (LR) (Black)
6	WP3192486 Whirlpool Burner Cap
7	Cap, (CR) (White)
7	WP3191731 Whirlpool Burner Cap
7	Cap, (CR) (Use w/Stainless Steel Model)
7	Cap, (CR) (Biscuit)
8	Cap, (RR) (Use w/Stainless Steel Model)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (Black)
8	Cap, (RR) (White)
9	Cap, (LF) (White)
9	Cap, (LF) (Black)
9	Burner Caps (LF)
9	Cap, (LF) (Biscuit)
10	Grate, Burner (Black)
10	Grate, Burner (White)
10	Grate, Burner (Biscuit)
10	WP9759505 Whirlpool Burner Grate
11	Grate, Filler (Use w/Stainless Steel Model)
11	Grate, Filler (Biscuit)
11	Grate, Filler (White)
11	Grate, Filler (Black)
12	WPL 3191923
12	WP3191922 Whirlpool Control Knob
12	WPL 3191925
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	814513 Whirlpool Top Burner
15	Orifice Holder (Turbi)
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455980 Whirlpool Burner Head
16	WP4455981 Whirlpool Burner Head
16	Burner Head (Turbi)
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
