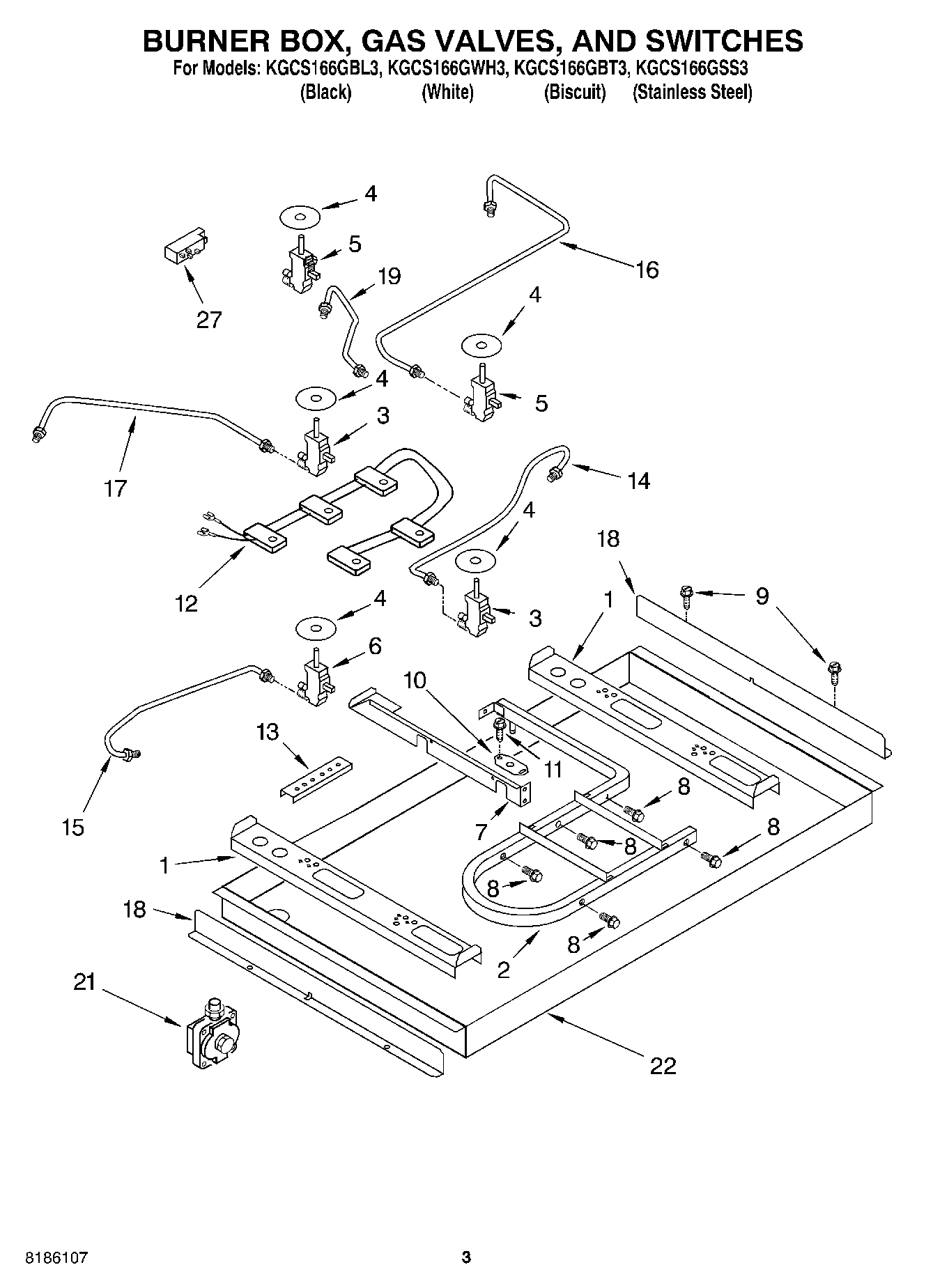

KGCS166GBT3 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt (Gas Valve)
9	WP12990527 Whirlpool Microwave Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	Harness & Switches
13	WP3400093 Whirlpool Screw
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
19	Tubing, Gas Burner (CR)
21	Regulator, Pressure
22	Burner Box
27	Harness, Ignitor 15“ (2)
27	FOLLOWING PARTS NOT ILLUSTRATED
27	Miscellaneous
27	WP3192741 Whirlpool LP Conversion Kit
27	8285402 Whirlpool Oven Grounding Wire
27	Hardware, Mounting
27	8186533 Whirlpool Hardware
27	Screw
27	Nut, Tinnerman (2)
27	W10392007 Whirlpool Power Cord
27	4173634 Whirlpool Bushing
27	WPW10110486 Whirlpool Spark Module
27	Harness, Wire Ignitor 28“
27	WIRING HARNESS PARTS
