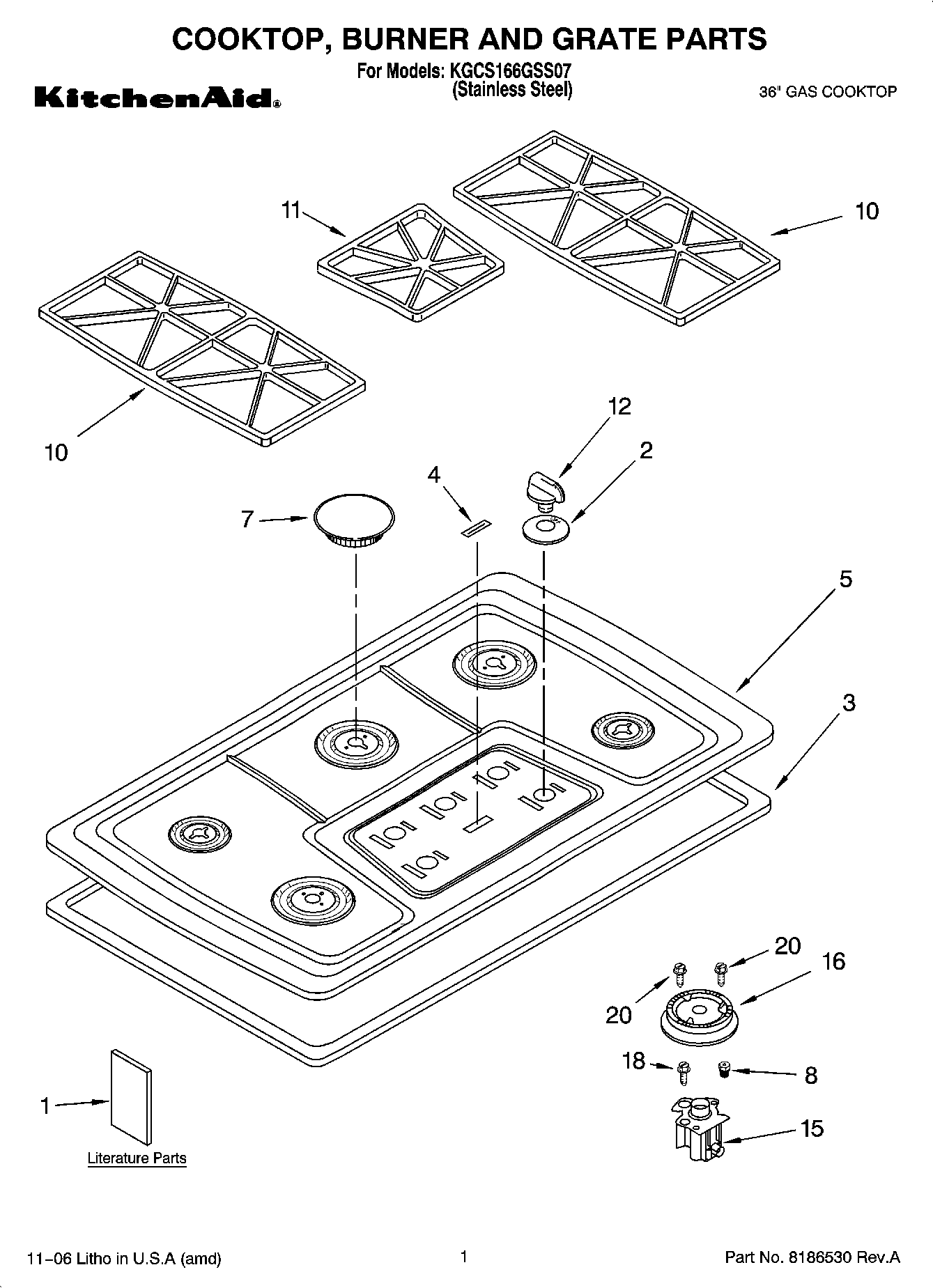

KGCS166GSS07 01 – COOKTOP, BURNER AND GRATE PARTS

KGCS166GSS07 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KGCS166GSS07 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips (French)
1Safe Cooking Tips
1L.P. Conversion Instructions
2WP4457192 Whirlpool Cooktop Black Bezel Knob
3Seal, Foam
4Nameplate (Black)
5Cooktop
7WP8286153CB Whirlpool Burner Cap
7WP8286154CB Whirlpool Burner Cap
7WP8286155CB Whirlpool Burner Cap
7Burner Caps (LF)
8WP3192529 Whirlpool Orifice Assembly
8Orifice (Turbi (14k))
8WP3192523 Whirlpool Orifice
88286551 Whirlpool Oven Orifice
10WP9759505 Whirlpool Burner Grate
11Grate, Center
12WP3191922 Whirlpool Control Knob
15WPW10128451 Whirlpool Orifice Holder
15WPW10128450 Whirlpool Orifice Holder
15WPW10128448 Whirlpool Igniter and Orifice Holder
15WPW10155786 Whirlpool Surface Burner Orifice Holder
16WPW10406243 Whirlpool Burner Head Auxiliary 6K
16WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
16WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
16Burner Head (Turbi)
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
