KGCS166GSS1 02 – SECTION

Products

Position	Product
	WP3192741 Whirlpool LP Conversion Kit
	Literature Parts (Use & Care Guide)
	4173634 Whirlpool Bushing
	W10392007 Whirlpool Power Cord
	Wire, Ground
	28“
	15“
	Nut, Tinnerman (2)
	Screw
	8186533 Whirlpool Hardware
	LP Conversion Instructions
	Installation Instructions
	Safer Cooking Tips
	Hardware, Mounting

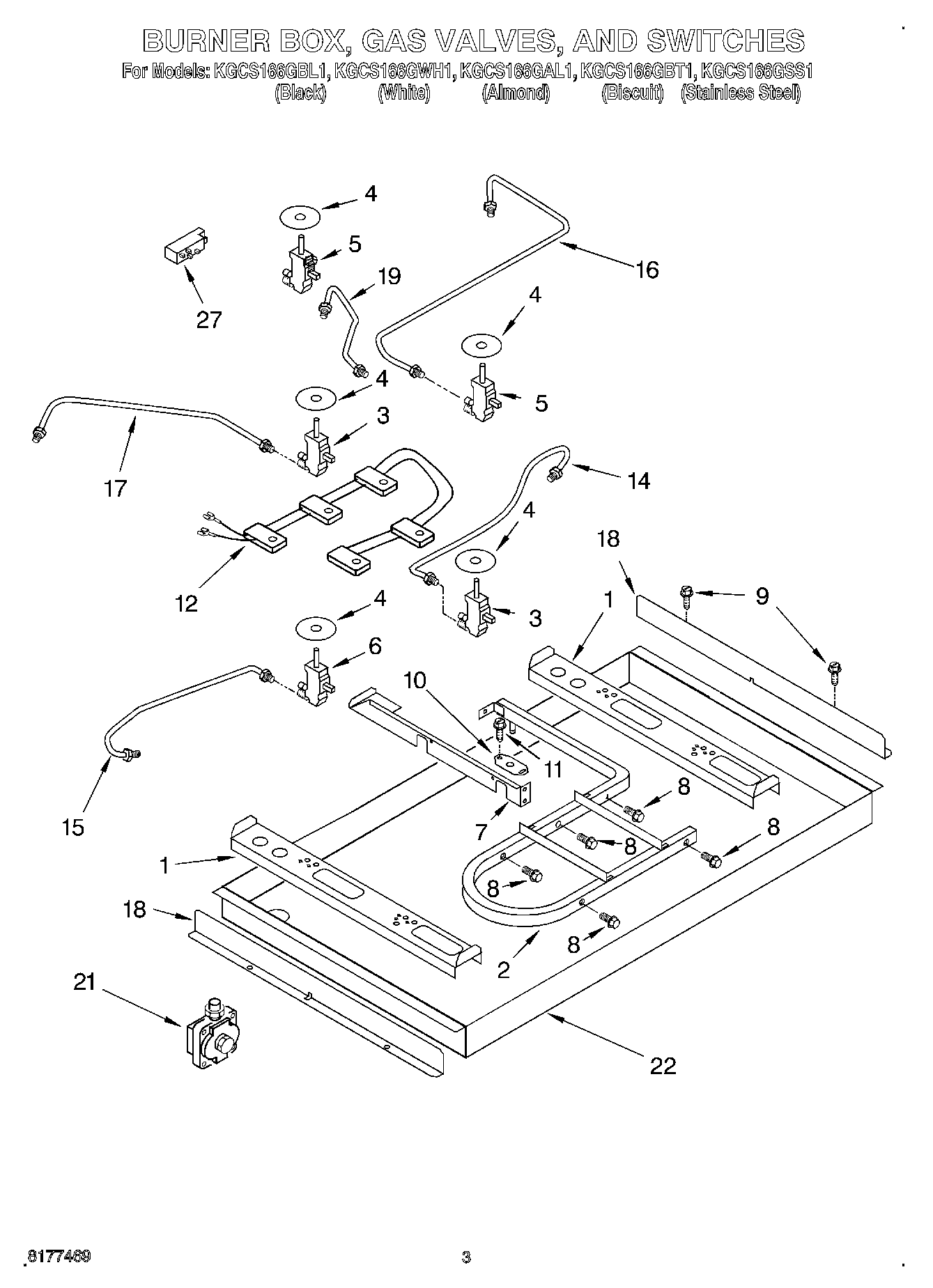

	LITERATURE PARTS (Wiring Diagram)
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt, Gas Valve
9	WP3177991 Whirlpool Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	Harness & Switches
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
19	Tubing, Gas Burner (CR)
21	Regulator, Pressure
22	Burner Box
27	WPW10110486 Whirlpool Spark Module
