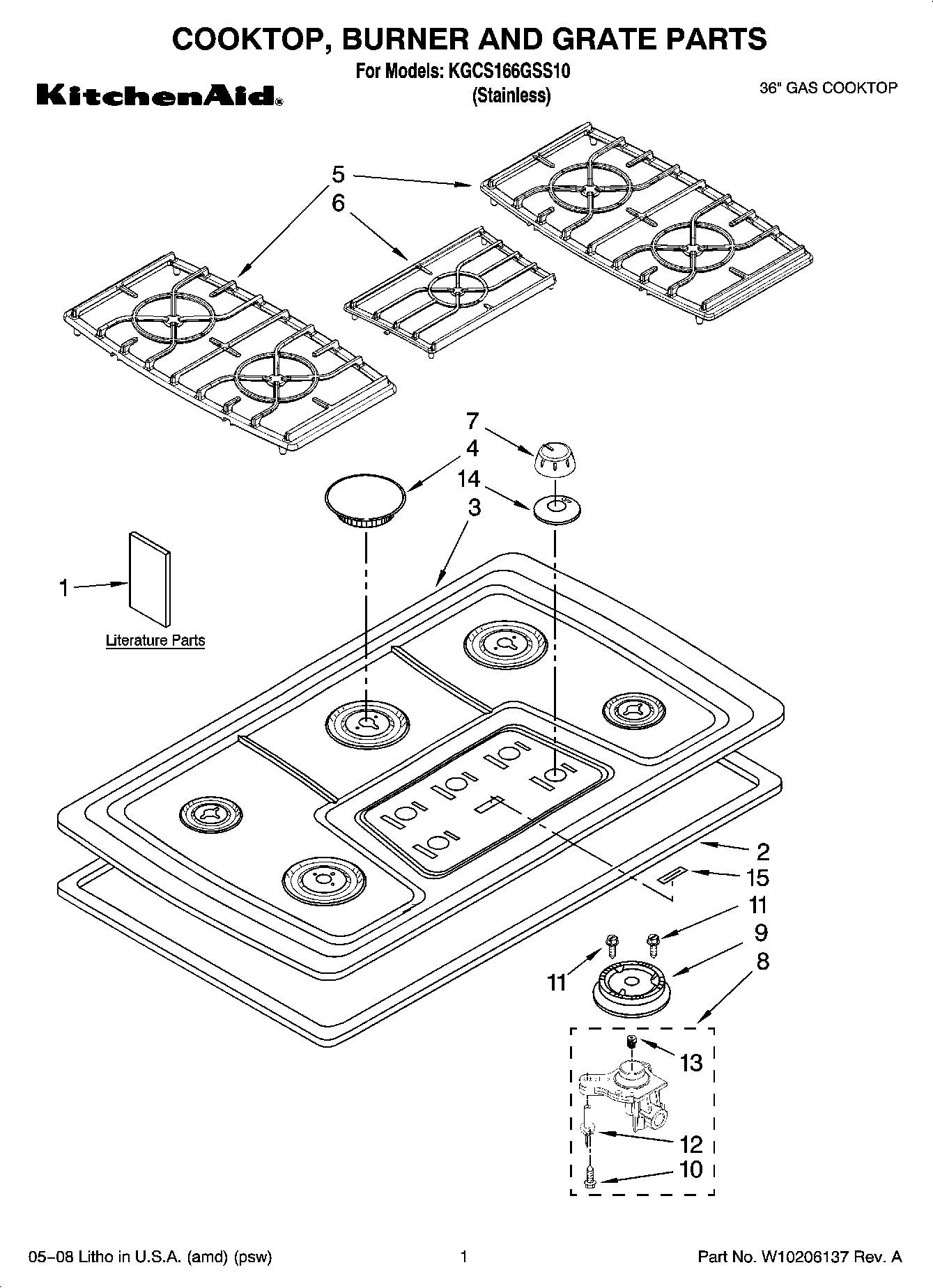

KGCS166GSS10 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1Use & Care Guide
1Installation Instructions (Undercounter Oven)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1Installation Instructions
2Seal, Foam
3Cooktop
4WP8286155CB Whirlpool Burner Cap
4WP8286154CB Whirlpool Burner Cap
4Burner Caps (LF)
4WP8286153CB Whirlpool Burner Cap
5WP9759505 Whirlpool Burner Grate
6Grate, Center
7WP3191922 Whirlpool Control Knob
8WPW10155786 Whirlpool Surface Burner Orifice Holder
8WPW10128451 Whirlpool Orifice Holder
8WPW10128450 Whirlpool Orifice Holder
8WPW10128448 Whirlpool Igniter and Orifice Holder
9WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
9Burner Head (Turbi)
9WPW10406243 Whirlpool Burner Head Auxiliary 6K
9WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
10WP8273062 Whirlpool Screw
11WP3368921 Whirlpool Screw
12WP9782116 Whirlpool Surface Igniter
13WP3192523 Whirlpool Orifice
13Orifice (Turbi (14k))
13WP3192529 Whirlpool Orifice Assembly
138286551 Whirlpool Oven Orifice
14WP4457192 Whirlpool Cooktop Black Bezel Knob
15Nameplate (Black)
