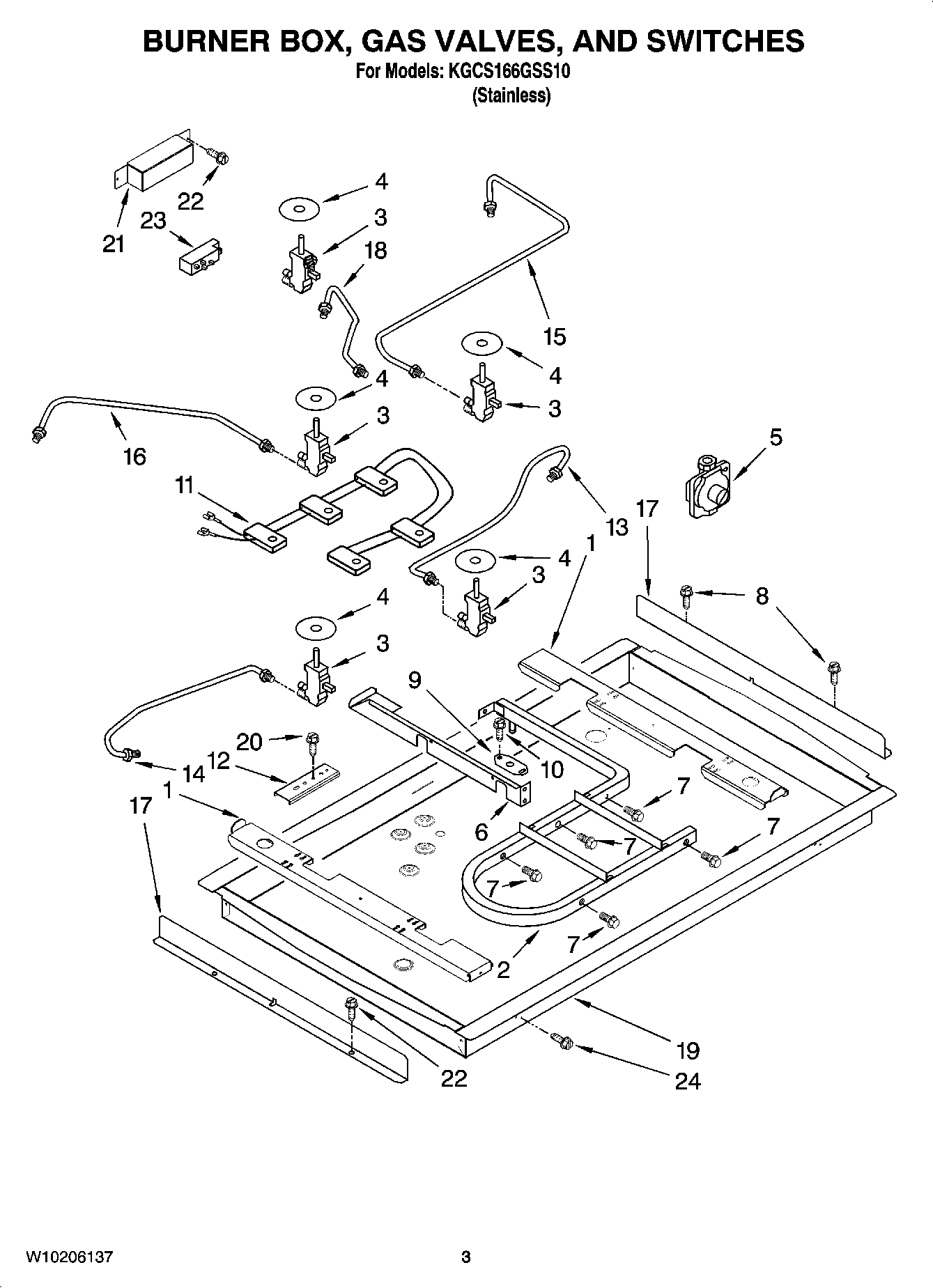

KGCS166GSS10 02 – BURNER BOX, GAS VALVES, AND SWITCHES, OPTIONAL PARTS

Products

Position	Product
	WP3192741 Whirlpool LP Conversion Kit
	Miscellaneous
	Following Parts Not Illustrated
	8285402 Whirlpool Oven Grounding Wire
	4456626 Whirlpool Wire
	WIRING HARNESS PARTS
	4456627 Whirlpool Wire Harness
	W10392007 Whirlpool Power Cord
	WP3177991 Whirlpool Screw
1	8285796 Whirlpool Support Assembly
2	8285751 Whirlpool Oven Manifold Pipe
3	Valve, Gas Burner (Yellow)
3	Valve, Gas Burner (White)
3	WP4456817 Whirlpool Burner Valve
3	Valve, Burner (Bronze)
4	WP3188425 Whirlpool Seal Switch
5	Regulator, Pressure
6	Rail, Center
7	WP3186217 Whirlpool Screw
8	WP12990527 Whirlpool Microwave Screw
9	3192491 Whirlpool Support Bracket
10	W10491985 Whirlpool Screw
11	WP4456901 Whirlpool Wire Harness
12	8186533 Whirlpool Hardware
13	8285768 Whirlpool Oven Gas Tubing
14	8285766 Whirlpool Oven Gas Tubing
15	8285767 Whirlpool Oven Gas Tubing
16	8285769 Whirlpool Gas Tubing
17	3191462 Whirlpool Oven Heat Shield
18	8285770 Whirlpool Gas Tubing Assembly
19	Burner Box
20	WP3400093 Whirlpool Screw
21	8285789 Whirlpool Heat Shield
23	WPW10110486 Whirlpool Spark Module
24	WP4449809 Whirlpool Screw
