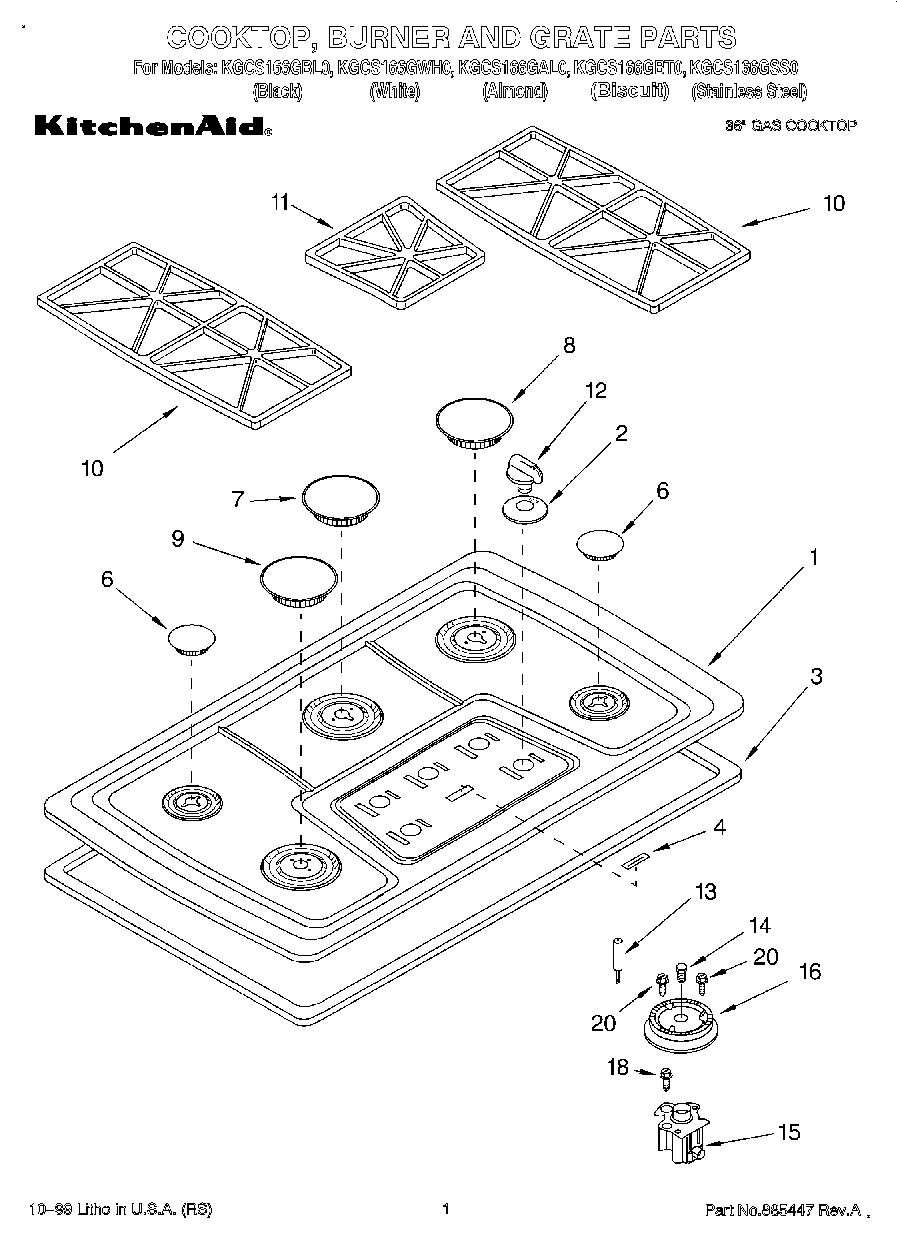

KGCS166GWH0 01 – SECTION

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Almond)
1	Cooktop (Biscuit)
1	Cooktop (Stainless Steel)
1	Cooktop (Black)
2	WP4457192 Whirlpool Cooktop Black Bezel Knob
2	Collar, Knob (White)
2	Collar, Knob (Biscuit)
2	Collar, Knob (Almond)
3	Seal, Foam
4	Nameplate (White)
4	Nameplate (Almond)
4	Nameplate (Black)
4	Nameplate (Biscuit)
6	WP3192486 Whirlpool Burner Cap
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (Biscuit)
6	Cap, (RF) (LR) (White)
7	Cap, (CR) (White)
7	WP3191731 Whirlpool Burner Cap
7	Cap, (CR) (Biscuit)
7	Cap, (CR) (Use w/Stainless Steel Model)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (Use w/Stainless Steel Model)
8	Cap, (RR) (White)
8	Cap, (RR) (Black)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (White)
9	Cap, (LF) (Black)
9	Burner Caps (LF)
10	Grate, Burner (Black)
10	Grate, Burner (Biscuit)
10	Grate, Burner (White)
10	WP9759505 Whirlpool Burner Grate
11	Grate, Filler (Use w/Stainless Steel Model)
11	Grate, Filler (Biscuit)
11	Grate, Filler (White)
11	Grate, Filler (Black)
12	WPL 3191923
12	WPL 3191925
12	Knob, Control (4) (Almond)
12	WP3191922 Whirlpool Control Knob
13	Ignitor
14	Orifice (Turbi (14k))
14	WP3192523 Whirlpool Orifice
14	Orifice (RF)
14	WP9753930 Whirlpool Orifice
15	WPL 3191743
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
16	Head, Burner (14K LF)
16	Head, Burner (RF)
16	Head, Burner (LF)
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
