KGCS166GWH0 02 – SECTION

Products

Position	Product
	Hardware, Mounting
	Conversion Kit Natural Gas To L.P.
	Wire, Ground
	Use & Care Guide
	LITERATURE PARTS (Wiring Diagram)
	Conversion Instructions
	28“
	15“
	4173634 Whirlpool Bushing
	W10392007 Whirlpool Power Cord
	Safer Cooking Tips
	Screw
	8186533 Whirlpool Hardware
	Nut, Tinnerman (2)
	Installation Instructions

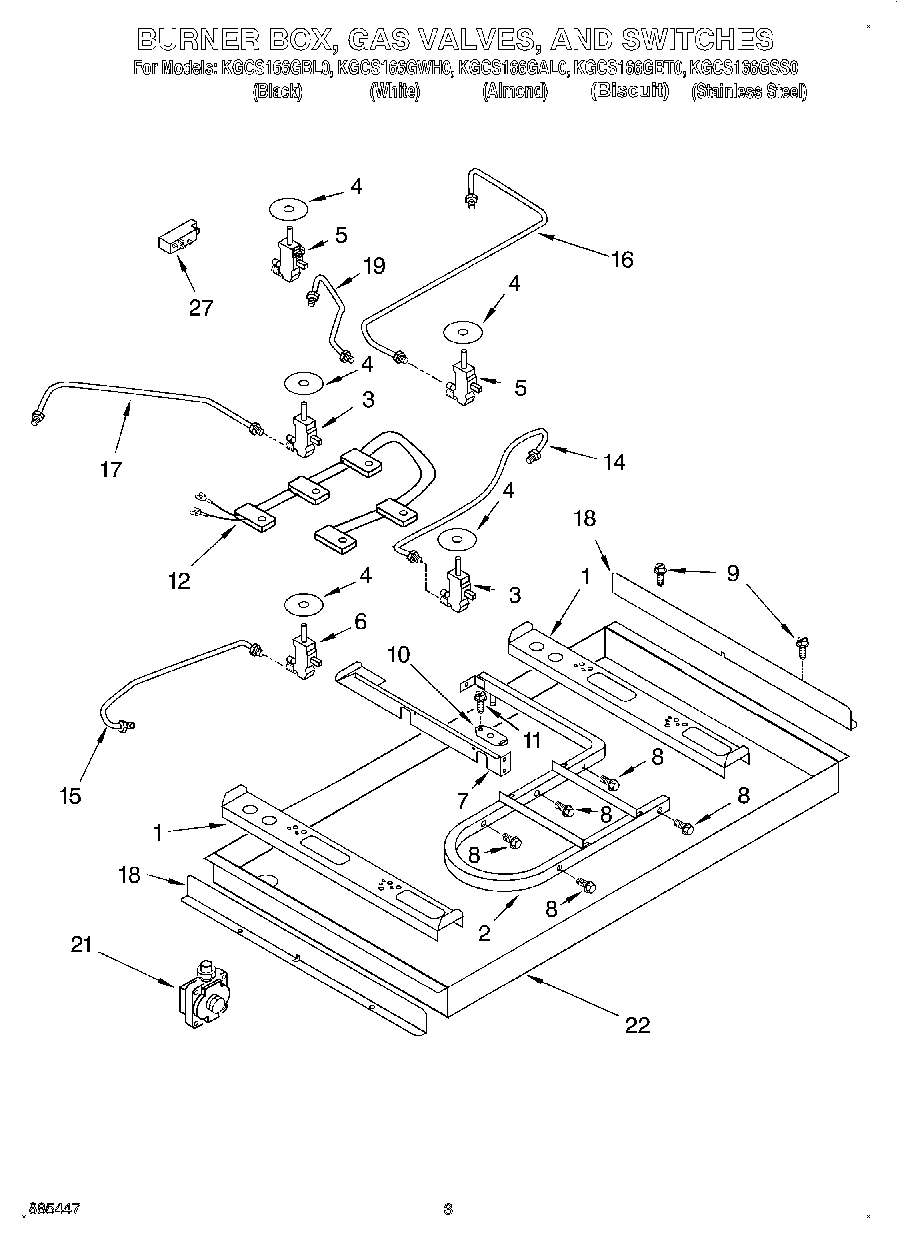

1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt, Gas Valve
9	WP3177991 Whirlpool Screw
10	3192491 Whirlpool Support Bracket
11	W10491985 Whirlpool Screw
12	Harness & Switches
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
19	Tubing, Gas Burner (CR)
21	Regulator, Pressure
22	Burner Box
27	WPW10110486 Whirlpool Spark Module
