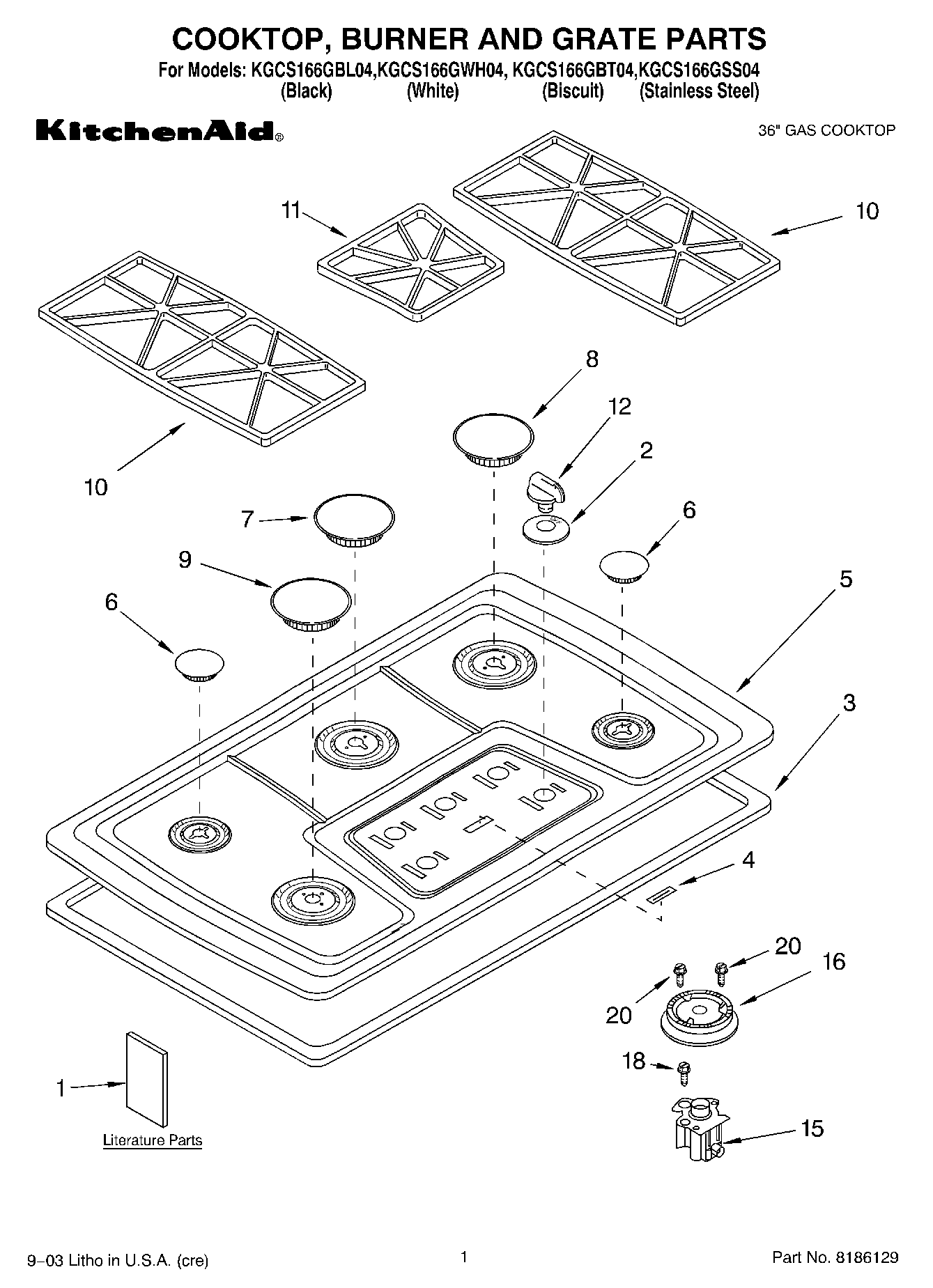

KGCS166GWH04 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	Safer Cooking Tips
1	LP Conversion Instructions
1	Literature Parts (Use & Care Guide)
1	LITERATURE PARTS (Wiring Diagram)
1	Literature Parts (Installation Instructions)
2	Collar, Knob (Biscuit)
2	Collar, Knob (White)
2	WP4457192 Whirlpool Cooktop Black Bezel Knob
3	Seal, Foam
4	Nameplate (Biscuit)
4	Nameplate (White)
4	Nameplate (Black)
5	Cooktop (Stainless Steel)
5	Cooktop (Biscuit)
5	Cooktop (Black)
5	Cooktop (White)
6	WP3192486 Whirlpool Burner Cap
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (White)
6	Cap, (RF) (LR) (Biscuit)
7	Cap, (CR) (Biscuit)
7	Cap, (CR) (White)
7	Cap, (CR) (Use w/Stainless Steel Model)
7	WP3191731 Whirlpool Burner Cap
8	Cap, (RR) (Use w/Stainless Steel Model)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (White)
8	Cap, (RR) (Black)
9	Burner Caps (LF)
9	Cap, (LF) (Black)
9	Cap, (LF) (White)
9	Cap, (LF) (Biscuit)
10	WP9759505 Whirlpool Burner Grate
10	Grate, Burner (Black)
10	Grate, Burner (Biscuit)
10	Grate, Burner (White)
11	Grate, Filler (Use w/Stainless Steel Model)
11	Grate, Filler (Biscuit)
11	Grate, Filler (White)
11	Grate, Filler (Black)
12	WPL 3191923
12	WPL 3191925
12	WP3191922 Whirlpool Control Knob
15	WPW10155784 Whirlpool Orifice Holder
15	WPW10128448 Whirlpool Igniter and Orifice Holder
15	WPW10155786 Whirlpool Surface Burner Orifice Holder
15	WPW10155785 Whirlpool Orifice Holder
16	Burner Head (Turbi)
16	WP4455980 Whirlpool Burner Head
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455981 Whirlpool Burner Head
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
