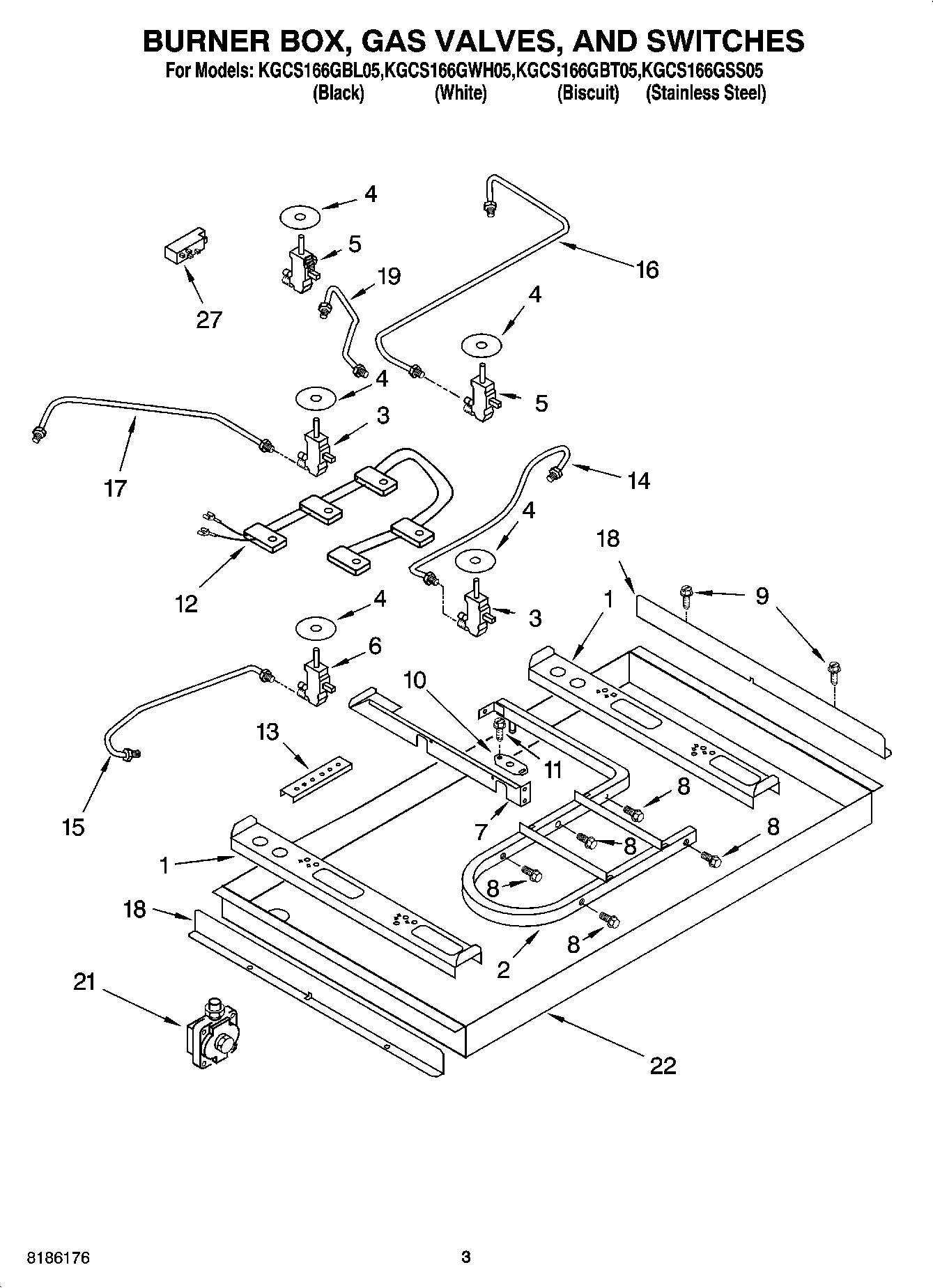

KGCS166GWH05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
3WP4456817 Whirlpool Burner Valve
3Valve, Burner (Bronze)
3WP4456816 Whirlpool Burner Valve
4WP3188425 Whirlpool Seal Switch
5VALVE
6VALVE
7Rail, Center
8WP3186217 Whirlpool Screw
9WP12990527 Whirlpool Microwave Screw
103192491 Whirlpool Support Bracket
11W10491985 Whirlpool Screw
12WP4456901 Whirlpool Wire Harness
138186533 Whirlpool Hardware
13WP3400093 Whirlpool Screw
143191324 Whirlpool Oven Gas Tubing
15Tubing, Burner (LF)
16Tubing, Burner (RR)
17Tubing, Gas Burner (LR)
183191462 Whirlpool Oven Heat Shield
19Tubing, Gas Burner (CR)
21Regulator, Pressure
22Burner Box
27FOLLOWING PARTS NOT ILLUSTRATED
27Miscellaneous
278285402 Whirlpool Oven Grounding Wire
27W10392007 Whirlpool Power Cord
274173634 Whirlpool Bushing
27WP3177991 Whirlpool Screw
27WPW10110486 Whirlpool Spark Module
274456627 Whirlpool Wire Harness
27WP3192741 Whirlpool LP Conversion Kit
274456626 Whirlpool Wire
27Hardware Kit (Mounting)
27WIRING HARNESS PARTS
