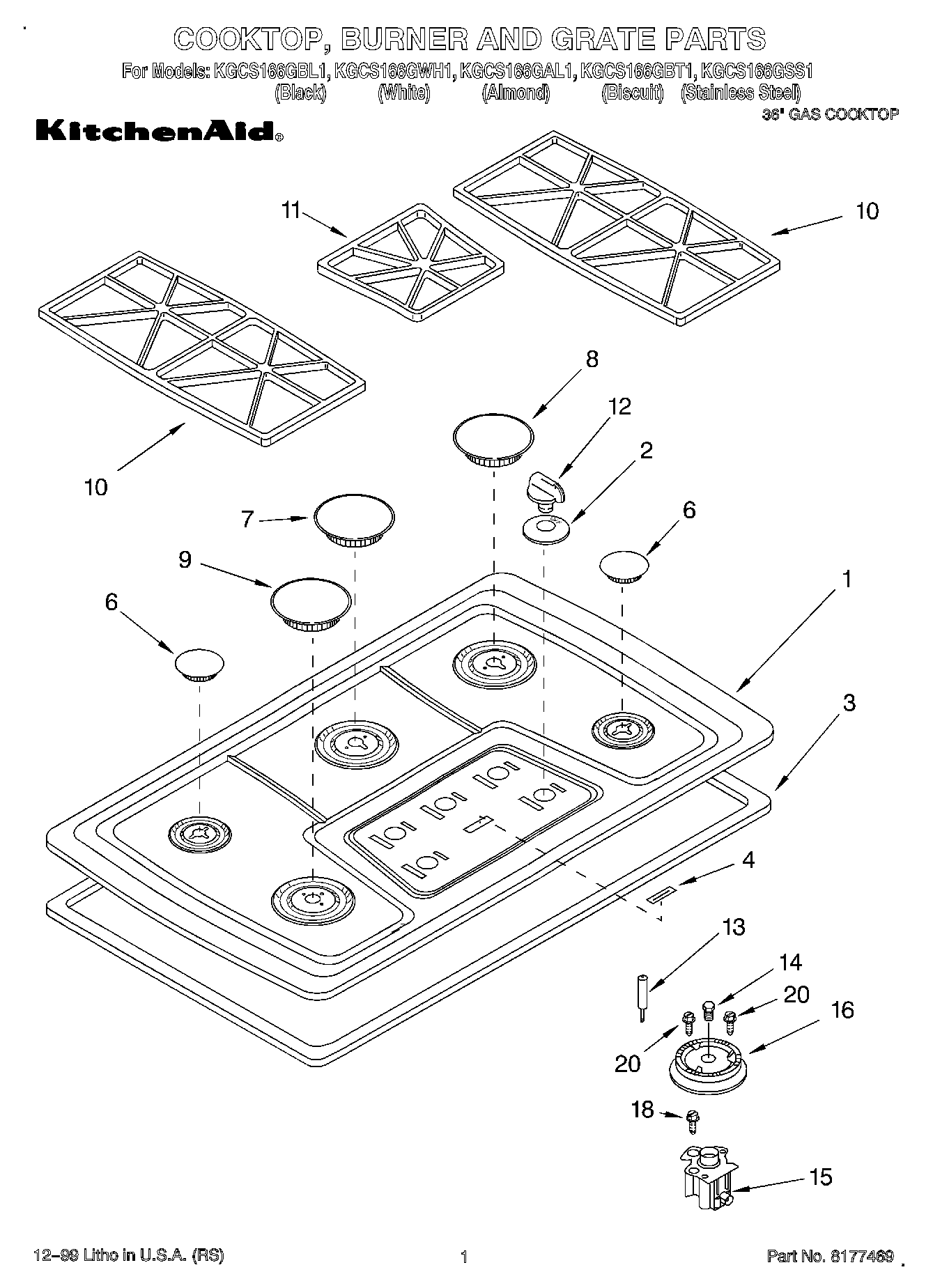

KGCS166GWH1 01 – SECTION

Products

Position	Product
1	Cooktop (Stainless Steel)
1	Cooktop (Biscuit)
1	Cooktop (Almond)
1	Cooktop (Black)
1	Cooktop (White)
2	Collar, Knob (Biscuit)
2	Collar, Knob (White)
2	WP4457192 Whirlpool Cooktop Black Bezel Knob
2	Collar, Knob (Almond)
3	Seal, Foam
4	Nameplate (Biscuit)
4	Nameplate (White)
4	Nameplate (Black)
4	Nameplate (Almond)
6	WP3192486 Whirlpool Burner Cap
6	Cap, (RF) (LR) (Black)
6	Cap, (RF) (LR) (Biscuit)
6	Cap, (RF) (LR) (White)
7	Cap, (CR) (Use w/Stainless Steel Model)
7	WP3191731 Whirlpool Burner Cap
7	Cap, (CR) (White)
7	Cap, (CR) (Biscuit)
8	Cap, (RR) (White)
8	Cap, (RR) (Biscuit)
8	Cap, (RR) (Use w/Stainless Steel Model)
8	Cap, (RR) (Black)
9	Burner Caps (LF)
9	Cap, (LF) (Biscuit)
9	Cap, (LF) (White)
9	Cap, (LF) (Black)
10	Grate, Burner (Black)
10	Grate, Burner (White)
10	Grate, Burner (Biscuit)
10	WP9759505 Whirlpool Burner Grate
11	Grate, Filler (Black)
11	Grate, Filler (Biscuit)
11	Grate, Filler (Use w/Stainless Steel Model)
11	Grate, Filler (White)
12	WPL 3191923
12	WPL 3191925
12	WP3191922 Whirlpool Control Knob
12	Knob, Control (4) (Almond)
13	WP9754215 Whirlpool Surface Igniter
14	Orifice (Turbi (14k))
14	WP3192523 Whirlpool Orifice
14	WP9753930 Whirlpool Orifice
14	Orifice (RF)
15	Orifice Holder (Turbi)
15	814513 Whirlpool Top Burner
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
16	WP4455979 Whirlpool Range Small Burner Head
16	Head, Burner (14K – LF)
16	WP4455981 Whirlpool Burner Head
16	WP4455980 Whirlpool Burner Head
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
