KGCT025AAL1 02 – SECTION

KGCT025AAL1 02 – SECTION

Written by

in

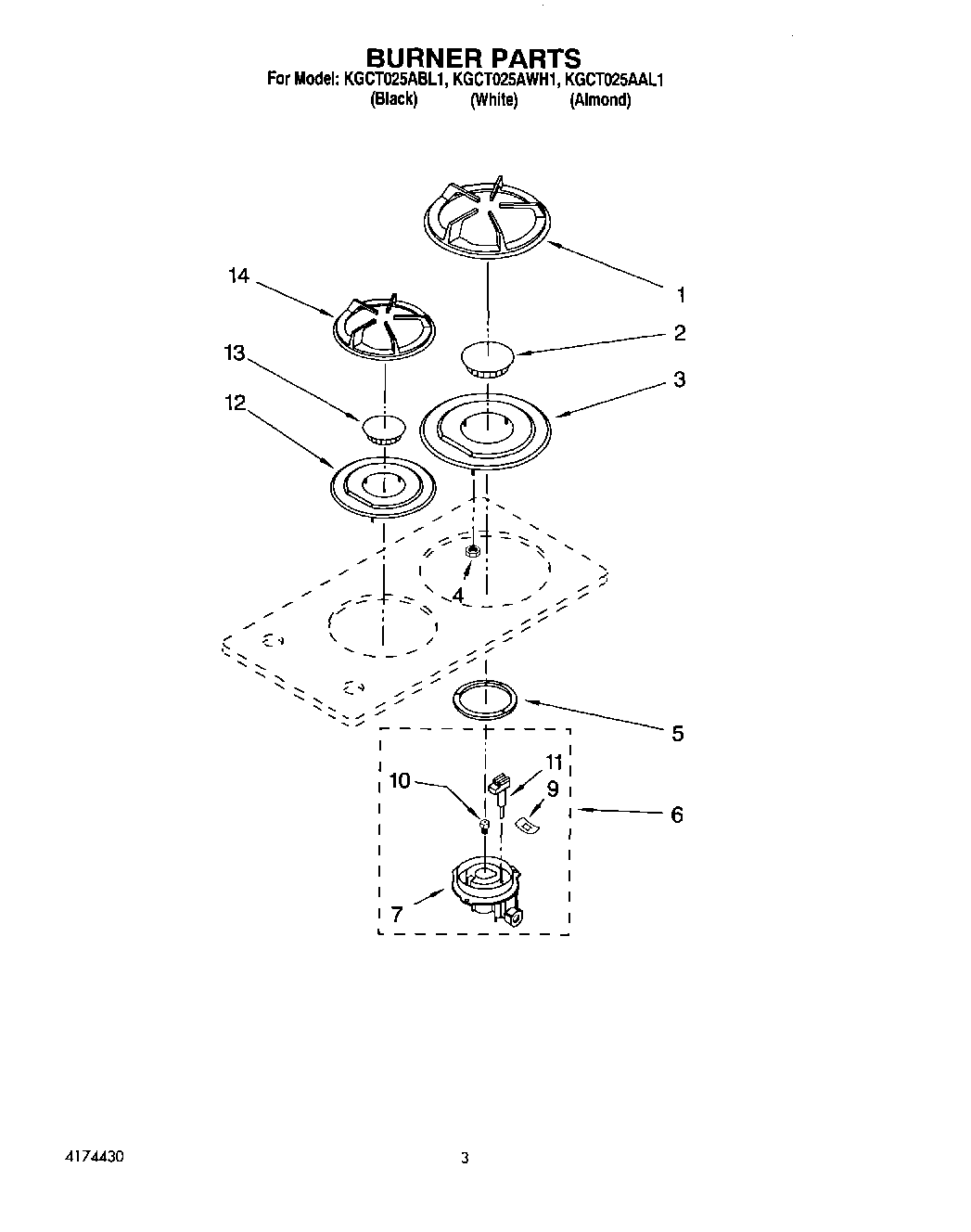

KGCT025AAL1 02 – SECTION

Products

PositionProduct
1Grate, Large Burner (Almond Model)
1Grate, Large Burner (White Model)
1Grate, Large Burner (Black Model)
2Cap, Rapid Burner Large (2) (Almond)
2Cap, Rapid Burner Large (2) (Black)
2Cap, Rapid Burner Large (2) (White)
3Bezel, Cooktop (Large) (White)
3Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
3Bezel, Cooktop (Large) (Black)
4Nut (4)
5Gasket, Burner (Large)
5Gasket, Burner (Small)
6Sealed Gas Burner Assembly (Small Burner)
6Sealed Gas Burner Assembly (Large Burner)
7WPL 3185821
7WPL 3185822
9Nut
10Orifice, Burner (Small Burner)
10Orifice, Burner (Large Burner)
11Electrode
12Bezel, Cooktop (Small) (White)
12Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
12Bezel, Cooktop (Small) (Black)
13Cap, Semi Rapid Small (2) (Almond Burner (2))
13Cap, Semi Rapid Small (2) (White)
13Cap, Semi Rapid Small (2) (Black)
14Grate, Burner Small (Black Model)
14Grate, Burner Small (White Model)
14Grate, Burner Small (Almond Model)
