| Use & Care Guide |
| Installation Instructions |
| Hardware Assembly |
| Tape, Foam (67``) |
| Power Cord |

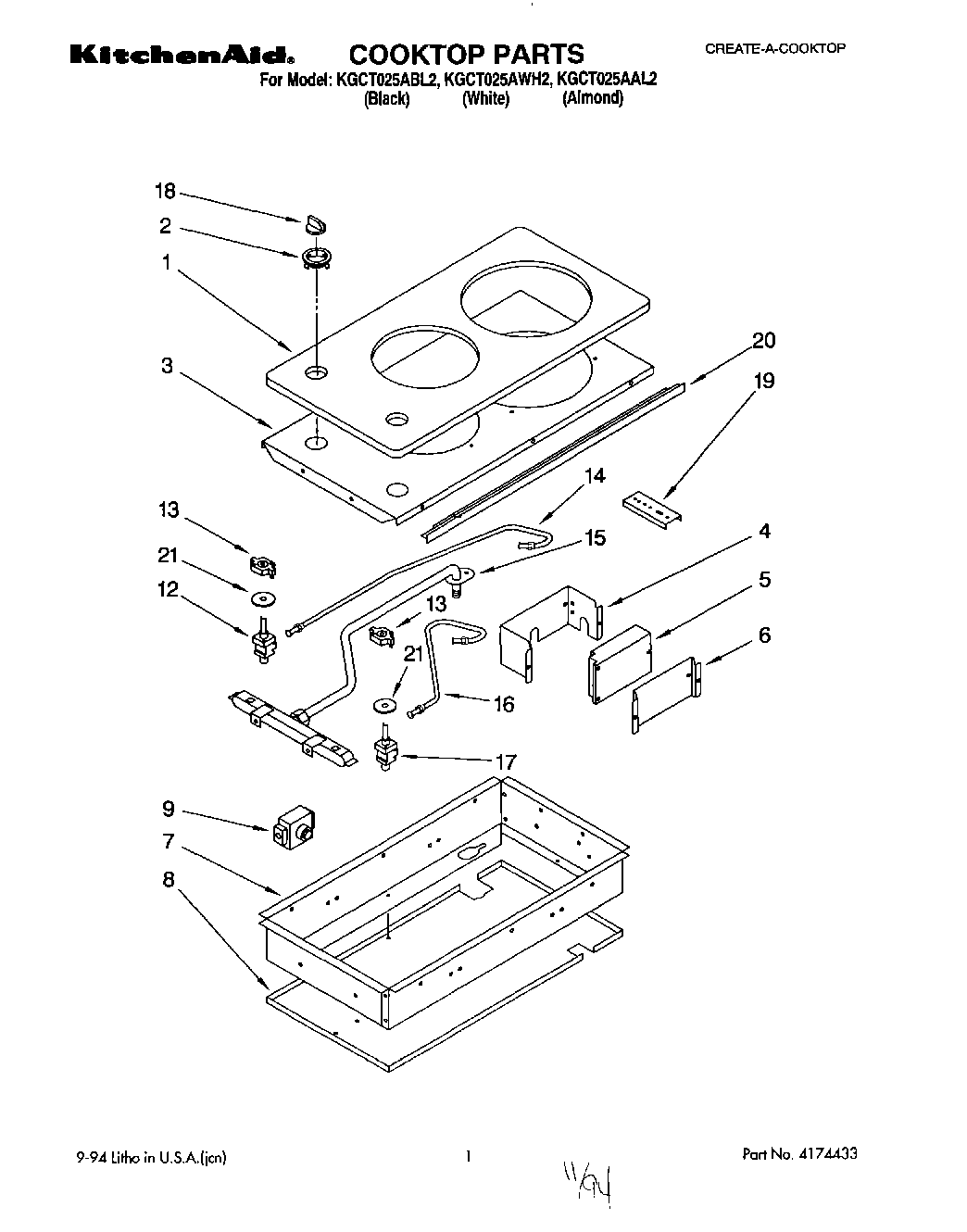

| 1 | Cooktop, Glass (Black) |
| 1 | Cooktop, Glass (White) |
| 1 | Cooktop, Glass (Almond) |
| 2 | W10854241 Whirlpool Grommet |
| 2 | WP3180081 Whirlpool Grommet |
| 2 | W10854242 Whirlpool Grommet |
| 3 | Cover, Top Burner Box |
| 4 | Shield, Heat Spark Module |
| 5 | Module, Spark |
| 6 | Screw, (2) |
| 6 | Bracket, Spark Module |
| 7 | Box, Burner (Left Hand Side) |
| 7 | Box, Burner (Right Hand Side) |
| 8 | SCREW |
| 8 | Cover, Bottom Burner Box |
| 9 | Regulator, Pressure |
| 12 | Valve, Rapid |
| 13 | Switch, Ignition |
| 14 | Tube Assembly Rear Burner |
| 15 | Manifold Pipe, Round |
| 16 | Tube Assembly Front Burner |
| 17 | Bolt, Valve |
| 17 | Valve, Semi Rapid |
| 18 | WP3182569 Whirlpool Knob |
| 18 | WP3182568 Whirlpool Control Knob |
| 18 | WP3182567 Whirlpool Oven Knob |
| 19 | Screw |
| 19 | Nut, Tinnerman (2) |
| 19 | WP488729 Whirlpool Refrigerator Door Screw |
| 19 | 8186533 Whirlpool Hardware |
| 20 | Trim, Extrusion (Almond) |
| 20 | Trim, Extrusion (White) |
| 20 | Trim, Extrusion (Black) |
| 21 | WP3188425 Whirlpool Seal Switch |
