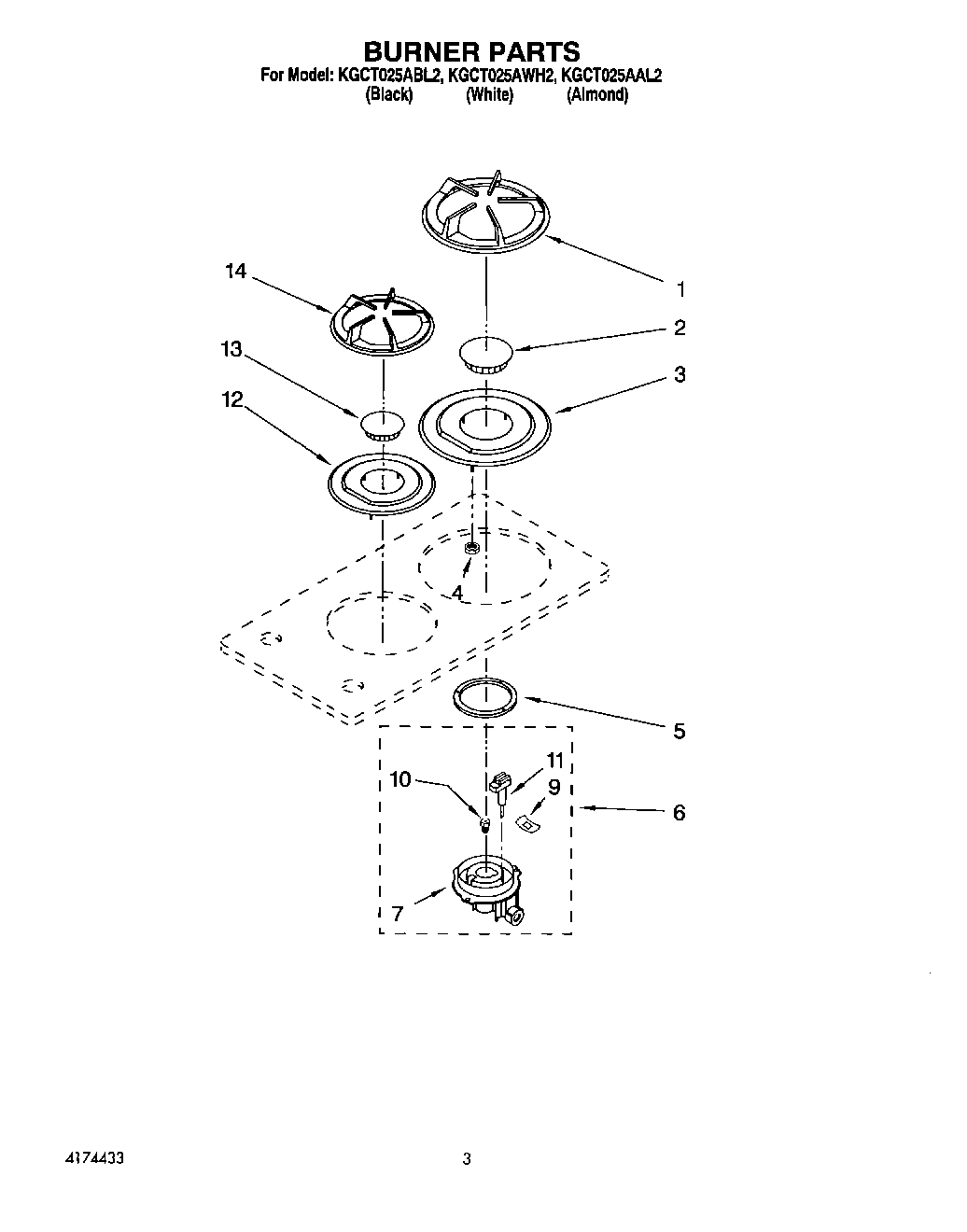

KGCT025AAL2 02 – SECTION

Products

Position	Product
1	Grate, Large Burner (Almond Model)
1	Grate, Large Burner (White Model)
1	Grate, Large Burner (Black Model)
2	Cap, Rapid Burner Large (2) (Almond)
2	Cap, Rapid Burner Large (2) (Black)
2	Cap, Rapid Burner Large (2) (White)
3	Bezel, Cooktop (Large) (White)
3	Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
3	Bezel, Cooktop (Large) (Black)
4	Nut (4)
5	Gasket, Burner (Large)
5	Gasket, Burner (Small)
6	Sealed Gas Burner Assembly (Small Burner)
6	Sealed Gas Burner Assembly (Large Burner)
7	WPL 3185821
7	WPL 3185822
9	Nut
10	Orifice, Burner (Small Burner)
10	Orifice, Burner (Large Burner)
11	Electrode
12	Bezel, Cooktop (Small) (White)
12	Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
12	Bezel, Cooktop (Small) (Black)
13	Cap, Semi Rapid Small (2) (Almond Burner (2))
13	Cap, Semi Rapid Small (2) (White)
13	Cap, Semi Rapid Small (2) (Black)
14	Grate, Burner Small (Black Model)
14	Grate, Burner Small (White Model)
14	Grate, Burner Small (Almond Model)
