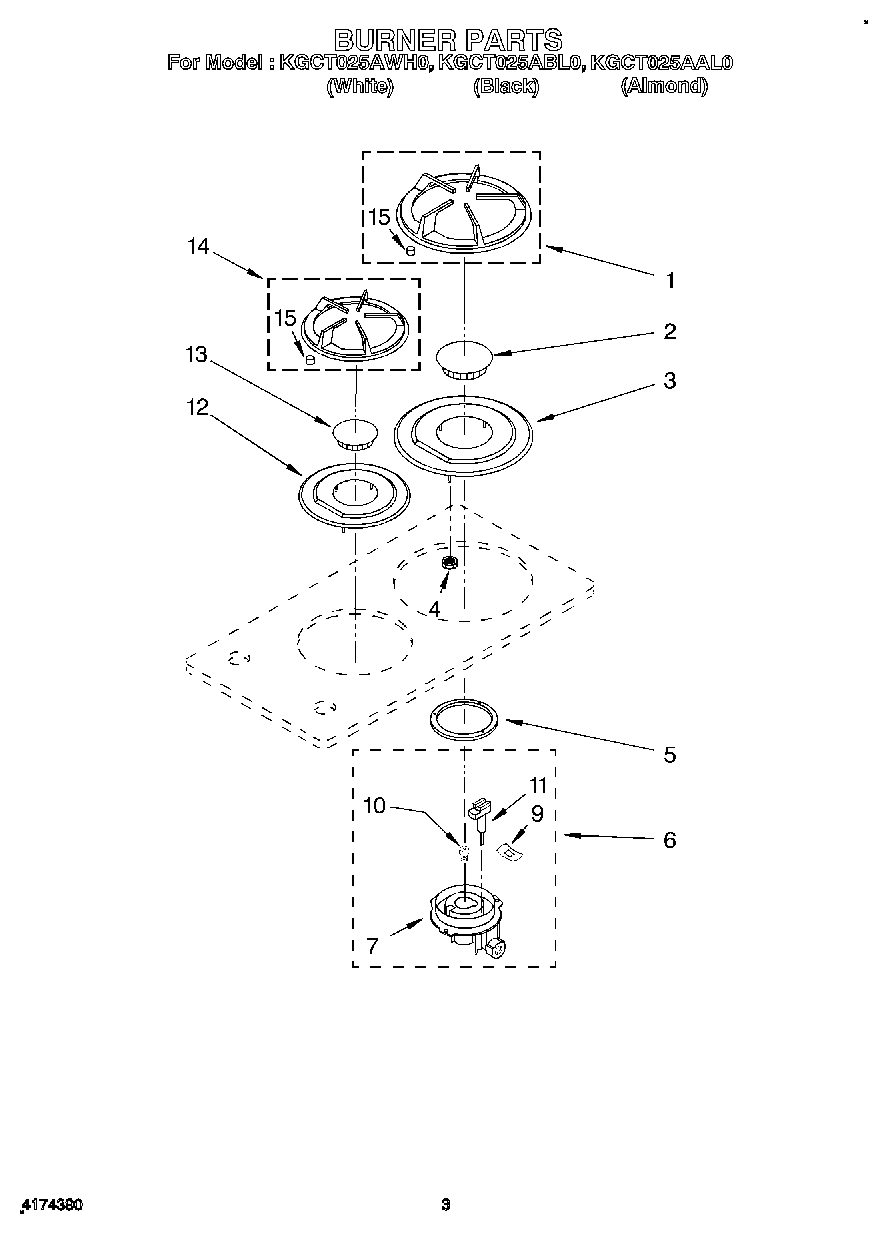

KGCT025ABL0 02 – SECTION

Products

PositionProduct
1Grate, Large (RF & LR) (Almond (Includes No.12))
1Grate, Large (RF & LR) (Black)
1Grate, Large (RF & LR) (White)
2Cap, Rapid Burner Large (2) (Black)
2Cap, Rapid Burner Large (2) (White)
2Cap, Rapid Burner Large (2) (Almond)
3Bezel, Cooktop (Large) (Black)
3Bezel, Cooktop (Large) (White)
3Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
4Nut (4)
5Gasket, Burner (Large)
5Gasket, Burner (Small)
6Sealed Gas Burner Assembly (Large Burner)
6Sealed Gas Burner Assembly (Small Burner)
7WPL 3185821
7WPL 3185822
9Nut
10Orifice, Burner (Large Burner)
10Orifice, Burner (Small Burner)
11Electrode
12Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
12Bezel, Cooktop (Small) (White)
12Bezel, Cooktop (Small) (Black)
13Cap, Semi Rapid Small (2) (White)
13Cap, Semi Rapid Small (2) (Almond Burner (2))
13Cap, Semi Rapid Small (2) (Black)
14Grate (Small) (LF & RR) (White)
14Grate (Small) (LF & RR) (Almond (Includes No.12))
14Grate (Small) (LF & RR) (Black)
15Pad, Grate (Incls. 5 pads)
