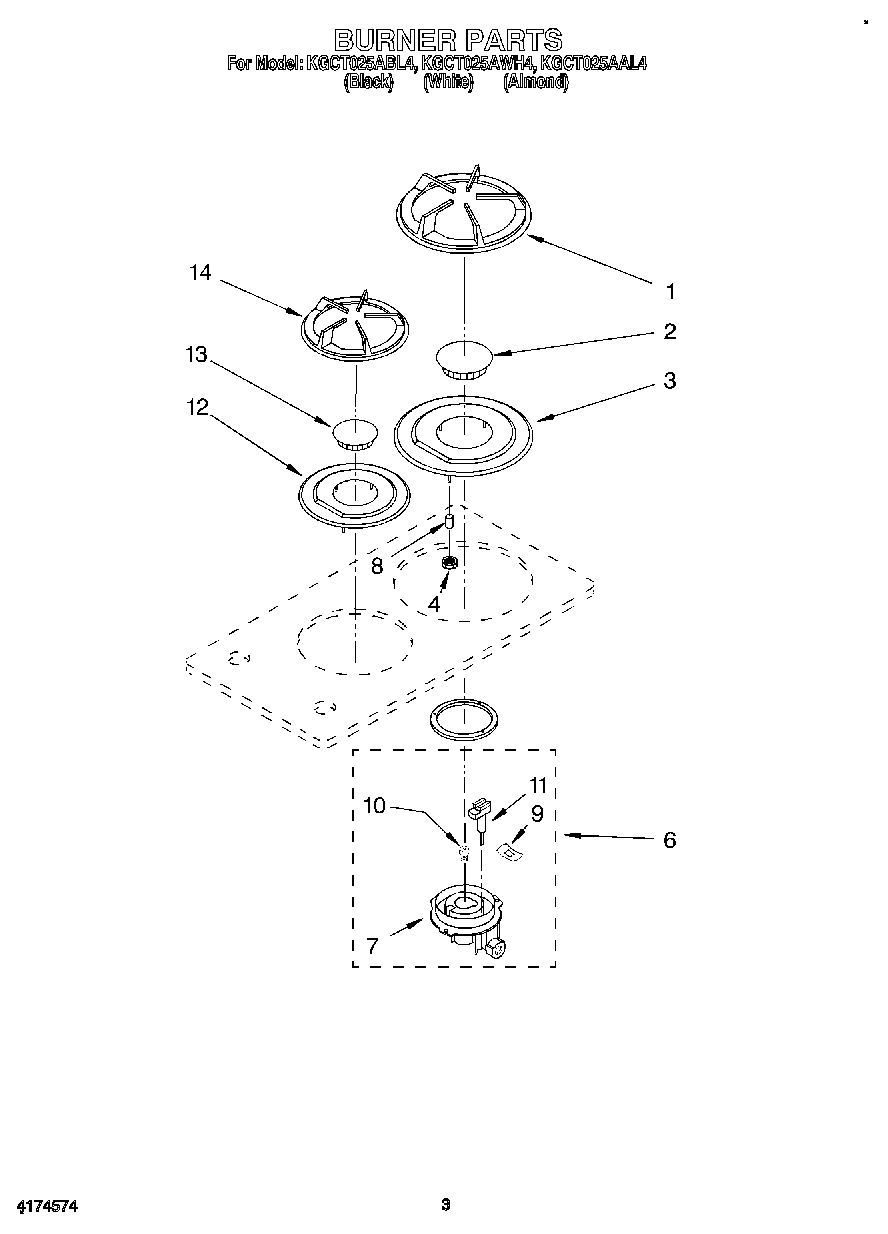

KGCT025ABL4 02 – SECTION

Products

Position	Product
1	Grate, Large Burner (Almond Model)
1	Grate, Large Burner (White Model)
1	Grate, Large Burner (Black Model)
2	Cap, Rapid Burner Large (2) (Black)
2	Cap, Rapid Burner Large (2) (White)
2	Cap, Rapid Burner Large (2) (Almond)
3	Bezel, Large (White Model)
3	Bezel, Large (Almond Model)
3	Bezel, Large (Black Model)
4	Nut (4)
6	Sealed Gas Burner Assembly (Large Burner)
6	Sealed Gas Burner Assembly (Small Burner)
7	WPL 3185822
7	WPL 3185821
8	Spacer, Tubing
9	Nut
10	Orifice, Burner (Large Burner)
10	Orifice, Burner (Small Burner)
11	Electrode
12	Bezel, Small (White Model)
12	Bezel, Small (Almond Model)
12	Bezel, Small (Black Model)
13	Cap, Semi Rapid Small (2) (White)
13	Cap, Semi Rapid Small (2) (Black)
13	Cap, Semi Rapid Small (2) (Almond Burner (2))
14	Grate, Burner Small (White Model)
14	Grate, Burner Small (Almond Model)
14	Grate, Burner Small (Black Model)
