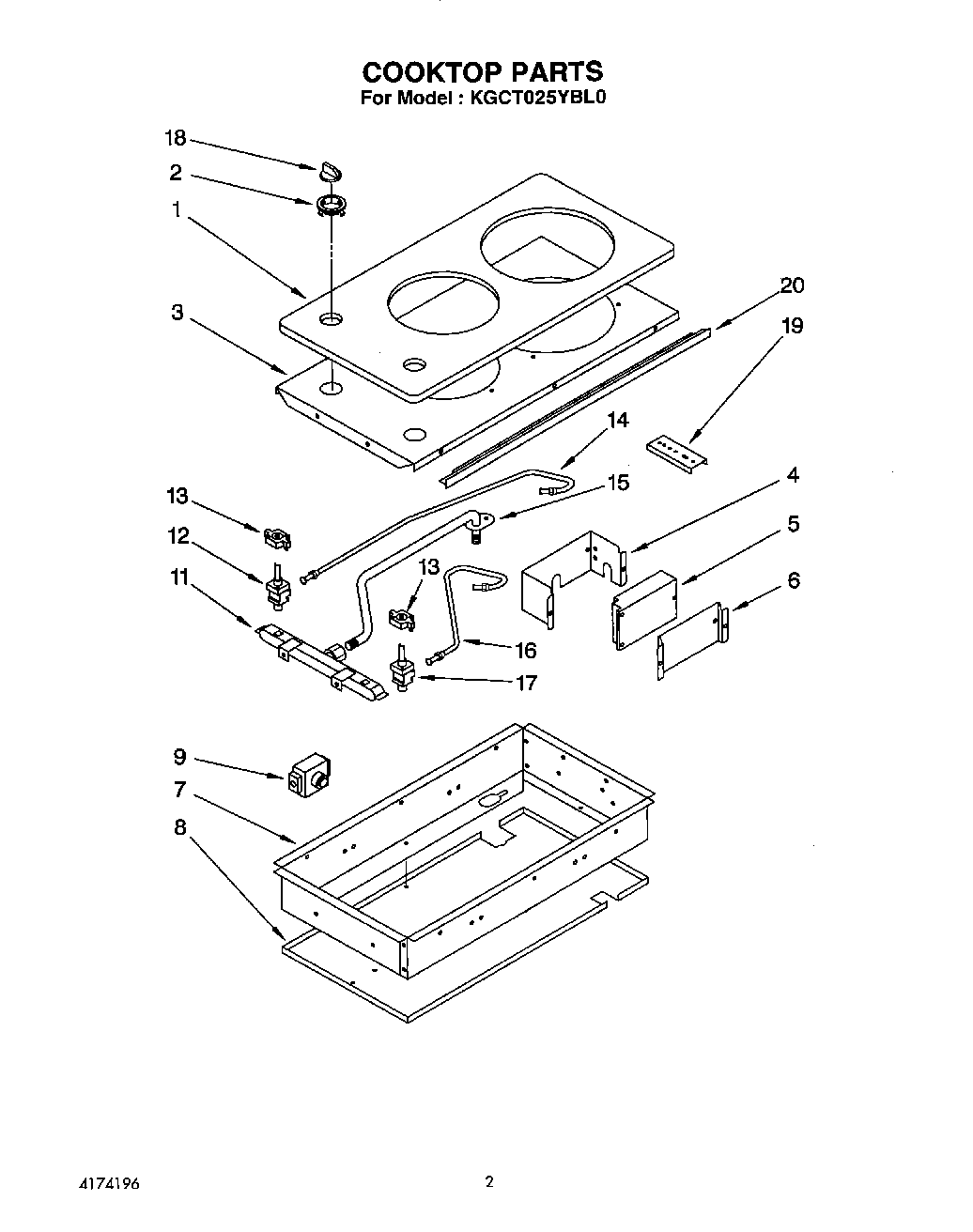

KGCT025YBL0 02 – SECTION

Products

PositionProduct
Tape, Foam (67“)
Installation Instructions
Repair Parts List
Use & Care Guide
1Cooktop, Glass (White)
1Cooktop, Glass (Almond)
1Cooktop, Glass (Black)
2W10854241 Whirlpool Grommet
2WP3180081 Whirlpool Grommet
2W10854242 Whirlpool Grommet
3Cover, Top Burner Box
4Shield, Heat Spark Module
5Module, Spark
6Bracket, Spark Module
7Box, Burner (Left Hand Side)
7Box, Burner (Right Hand Side)
8WP488729 Whirlpool Refrigerator Door Screw
8Cover, Bottom Burner Box
9Regulator, Pressure
11Manifold, Square
12Valve, Rapid
13Switch, Ignition
14Tube Assembly Rear Burner
15Manifold Pipe, Round
16Tube Assembly Front burner
17Valve, Semi Rapid
17Bolt, Valve
18WP3182568 Whirlpool Control Knob
18WP3182567 Whirlpool Oven Knob
18WP3182569 Whirlpool Knob
19Screw
19Nut, Tinnerman (2)
19Screw (4)
19Screw, 8-32 X 1 1/2
198186533 Whirlpool Hardware
20Trim, Extrusion (Black)
20Trim, Extrusion (White)
20Trim, Extrusion (Almond)
