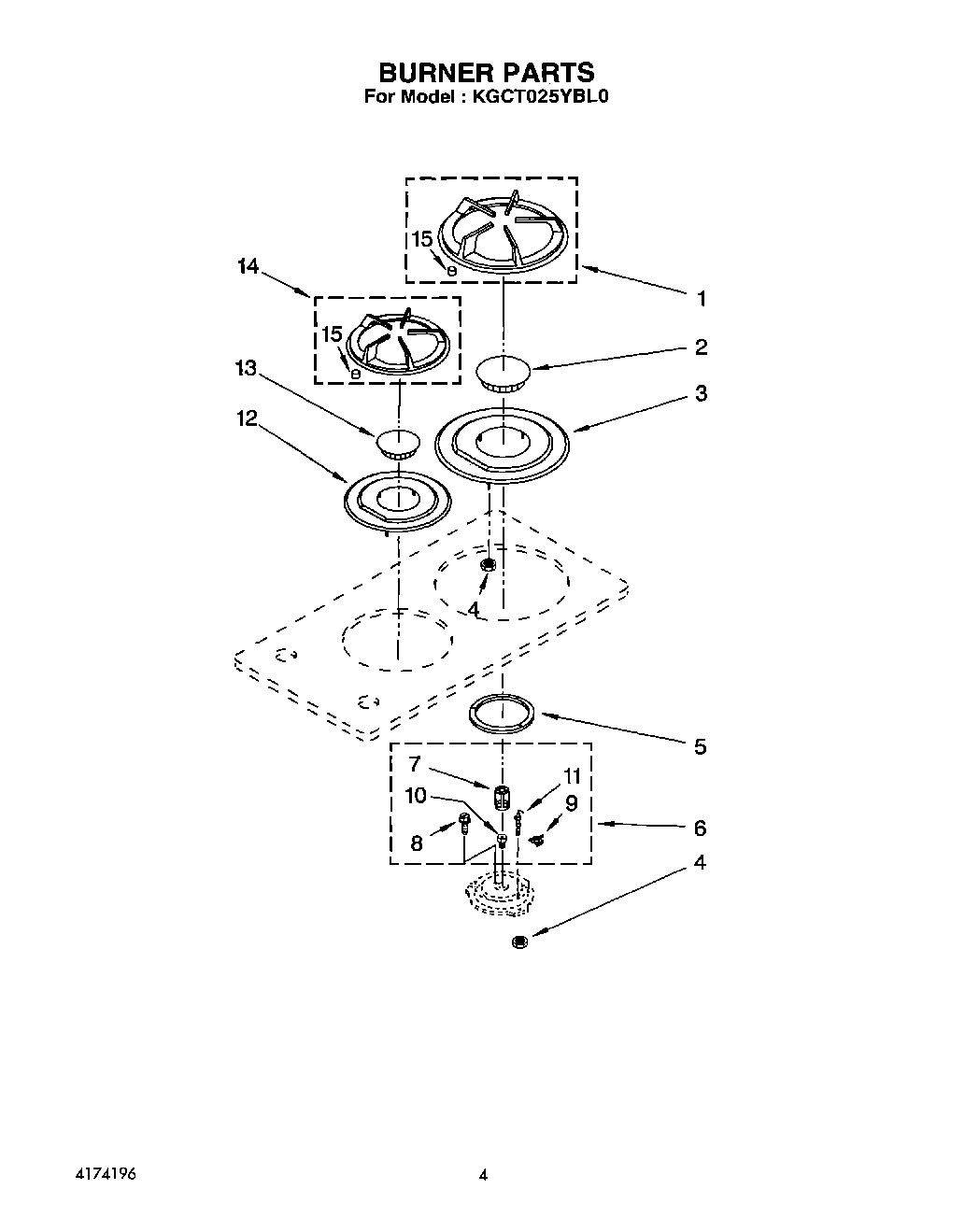

| 1 | Grate, Large Burner (Dark Taupe (KGCT025YAL0)) |
| 1 | Grate, Large (RF & LR) (Black) |
| 1 | Grate, Large (RF & LR) (White) |
| 2 | Cap, Large Burner (Dark Taupe (KGCT025YAL0)) |
| 2 | Cap, Large Burner (Grey (KGCT025YWH1)) |
| 2 | Cap, Large Burner (Black (KGCT025YBL1)) |
| 3 | Bezel, Large (Black (KGCT025YBL1)) |
| 3 | Bezel, Large (Dark Taupe (KGCT025YAL1)) |
| 3 | Bezel, Large (Shadow White (KGCT205YWH1)) |
| 4 | Nut (4) |
| 5 | Gasket, Burner (Small) |
| 5 | Gasket, Burner (Large) |
| 6 | Sealed Gas Burner Kit (Small Burner (Includes Key No`s 7,8,9,10,11)) |
| 6 | Sealed Gas Burner Kit (Large Burner) |
| 7 | Shutter, Air (Available In Kit Only) |
| 8 | Screw, Burner |
| 9 | Clip, Ignitor |
| 10 | Orifice, Burner (Available In Kit Only) |
| 11 | Jet Lighter (Available In Kit Only) |
| 12 | Bezel, Small (Black (KGCT025YBL1)) |
| 12 | Bezel, Small (Shadow White (KGCT025YWH1)) |
| 12 | Bezel, Small (Dark Taupe (KGCT025YAL1)) |
| 13 | Cap, Burner Small (Black (KGCT025YBL1)) |
| 13 | Cap, Burner Small (Grey (KGCT025YWH0)) |
| 13 | Cap, Burner Small (Dark Taupe (KGCT025YAL0)) |
| 14 | Grate, Burner Small (Dark Taupe (KGCT025YAL0 |
| 14 | Grate (Small) (LF & RR) (Black) |
| 14 | Grate (Small) (LF & RR) (White) |
| 15 | WPL 4173550 |
