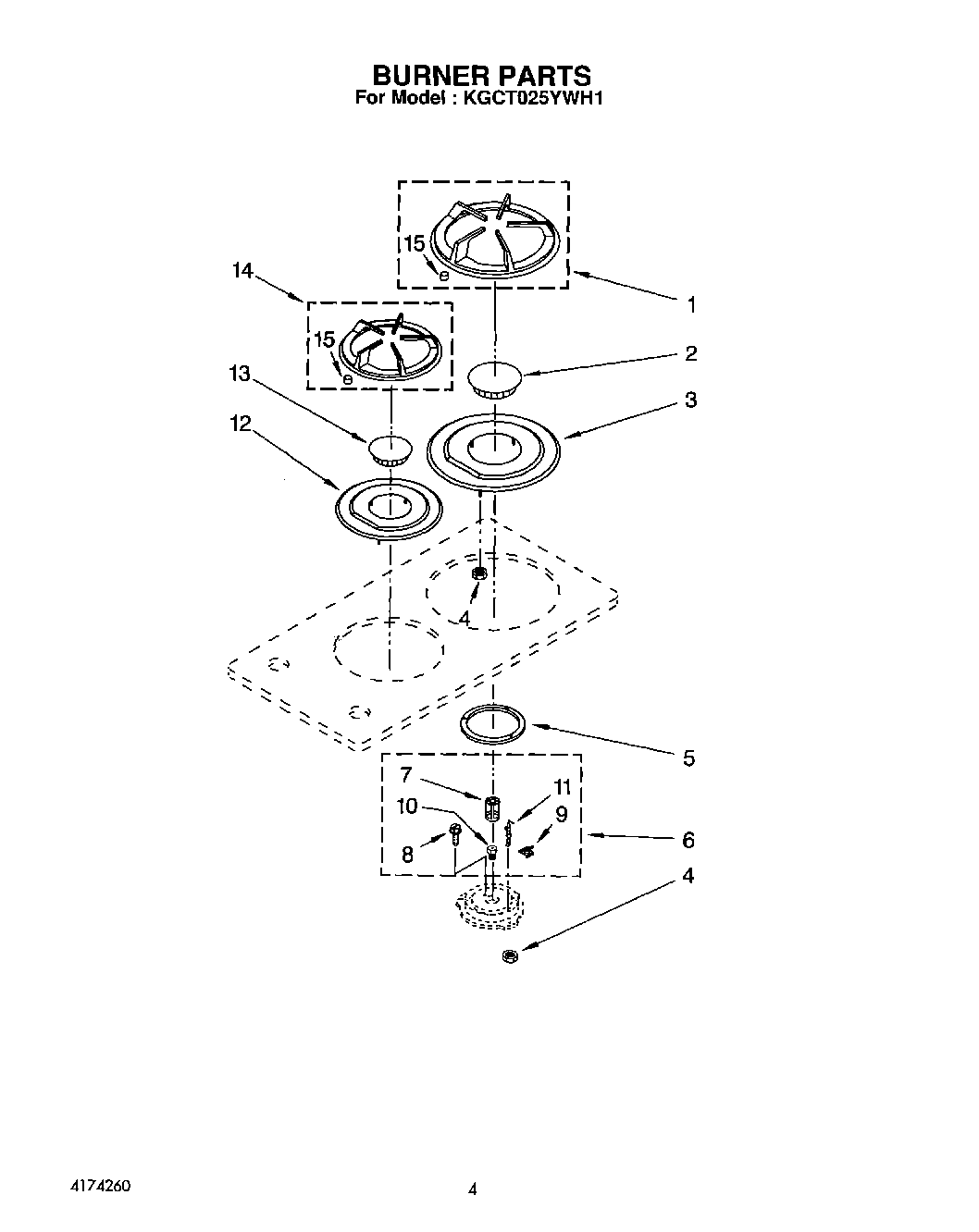

KGCT025YBL1 03 – SECTION

Products

PositionProduct
1Grate, Large (RF & LR) (White)
1Grate, Large (RF & LR) (Almond (Includes No.12))
1Grate, Large (RF & LR) (Black)
2Cap, Large Burner (Grey (KGCT025YWH1))
2Cap, Large Burner (Thrush Brown (KGCT025YAL1))
2Cap, Large Burner (Black (KGCT025YBL1))
3Bezel, Large (Black (KGCT025YBL1))
3Bezel, Large (Shadow White (KGCT205YWH1))
3Bezel, Large (Dark Taupe (KGCT025YAL1))
4Nut (4)
5Gasket, Burner (Small)
5Gasket, Burner (Large)
6Sealed Gas Burner Kit (Large Burner)
6Sealed Gas Burner Kit (Small Burner (Includes Key No`s 7,8,9,10,11))
7Shutter, Air (Available In Kit Only)
8Screw, Burner
9Clip, Ignitor
10Orifice, Burner (Available In Kit Only)
11Ignitor
12Bezel, Small (Shadow White (KGCT025YWH1))
12Bezel, Small (Dark Taupe (KGCT025YAL1))
12Bezel, Small (Black (KGCT025YBL1))
13Cap, Burner Small (Black (KGCT025YBL1))
13Cap, Burner Small (Grey (KGCT025YWH0))
13Cap, Burner Small (Thrush Brown (KGCT025YAL1))
14Grate (Small) (LF & RR) (Black)
14Grate (Small) (LF & RR) (White)
14Grate (Small) (LF & RR) (Almond (Includes No.12))
15Pad, Grate (Incls. 5 pads)
