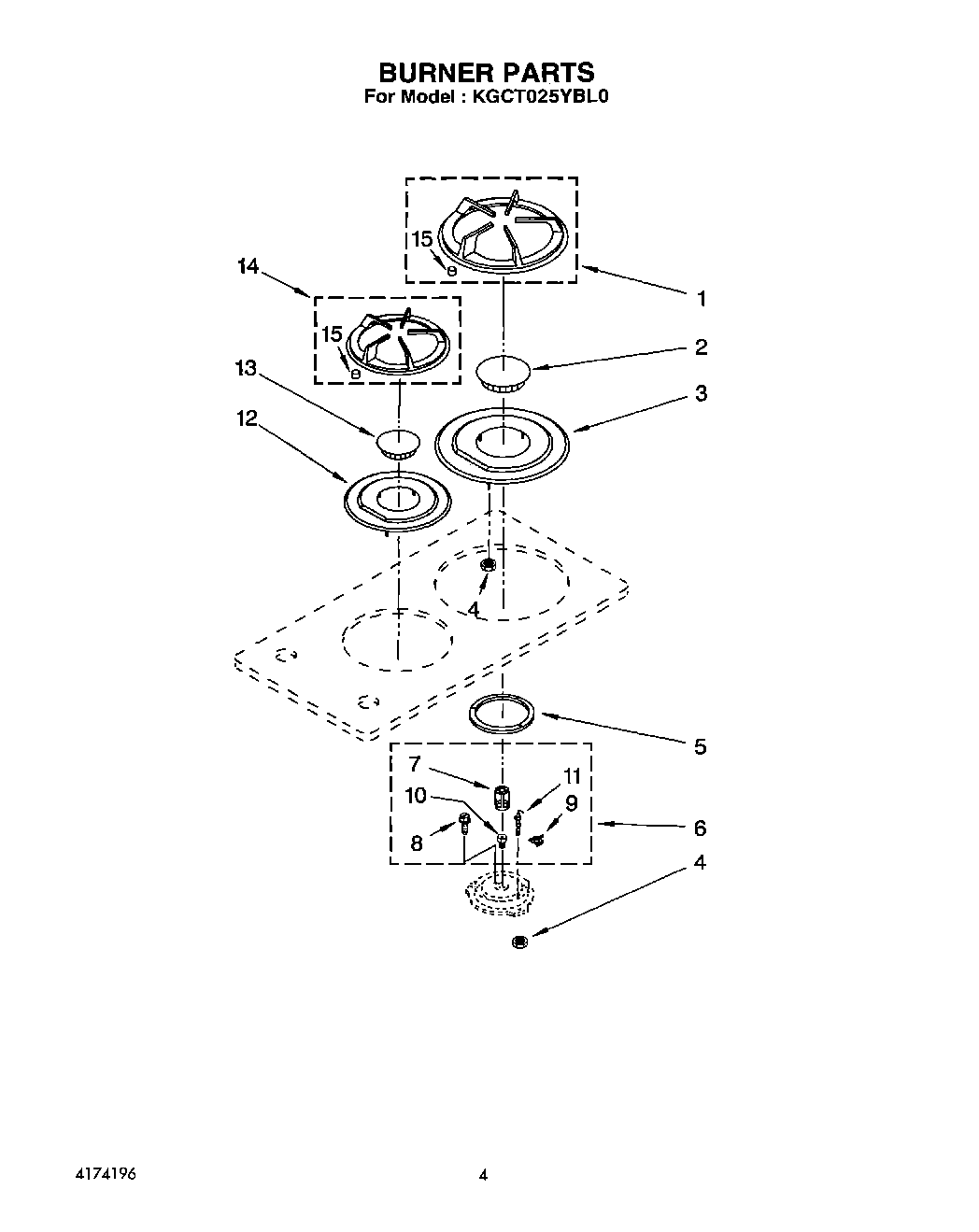

KGCT025YWH0 03 – SECTION

KGCT025YWH0 03 – SECTION

Written by

in

KGCT025YWH0 03 – SECTION

Products

PositionProduct
1Grate, Large Burner (Dark Taupe (KGCT025YAL0))
1Grate, Large (RF & LR) (Black)
1Grate, Large (RF & LR) (White)
2Cap, Large Burner (Dark Taupe (KGCT025YAL0))
2Cap, Large Burner (Grey (KGCT025YWH1))
2Cap, Large Burner (Black (KGCT025YBL1))
3Bezel, Large (Shadow White (KGCT205YWH1))
3Bezel, Large (Dark Taupe (KGCT025YAL1))
3Bezel, Large (Black (KGCT025YBL1))
4Nut (4)
5Gasket, Burner (Small)
5Gasket, Burner (Large)
6Sealed Gas Burner Kit (Large Burner)
6Sealed Gas Burner Kit (Small Burner (Includes Key No`s 7,8,9,10,11))
7Shutter, Air (Available In Kit Only)
8Screw, Burner
9Clip, Ignitor
10Orifice, Burner (Available In Kit Only)
11Jet Lighter (Available In Kit Only)
12Bezel, Small (Black (KGCT025YBL1))
12Bezel, Small (Shadow White (KGCT025YWH1))
12Bezel, Small (Dark Taupe (KGCT025YAL1))
13Cap, Burner Small (Grey (KGCT025YWH0))
13Cap, Burner Small (Black (KGCT025YBL1))
13Cap, Burner Small (Dark Taupe (KGCT025YAL0))
14Grate, Burner Small (Dark Taupe (KGCT025YAL0
14Grate (Small) (LF & RR) (White)
14Grate (Small) (LF & RR) (Black)
15WPL 4173550
