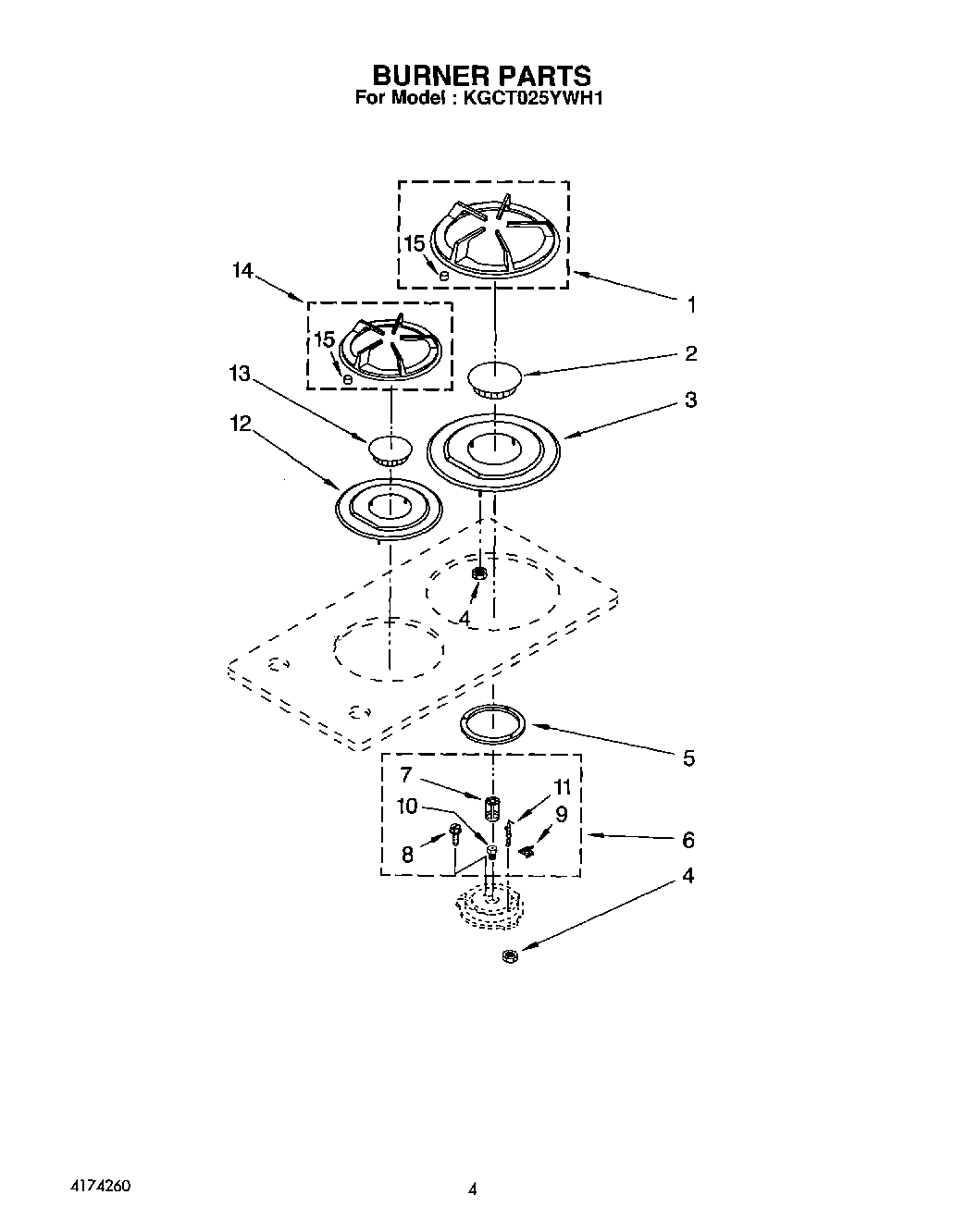

KGCT025YWH1 03 – SECTION

Products

Position	Product
1	Grate, Large (RF & LR) (White)
1	Grate, Large (RF & LR) (Almond (Includes No.12))
1	Grate, Large (RF & LR) (Black)
2	Cap, Large Burner (Grey (KGCT025YWH1))
2	Cap, Large Burner (Thrush Brown (KGCT025YAL1))
2	Cap, Large Burner (Black (KGCT025YBL1))
3	Bezel, Large (Black (KGCT025YBL1))
3	Bezel, Large (Shadow White (KGCT205YWH1))
3	Bezel, Large (Dark Taupe (KGCT025YAL1))
4	Nut (4)
5	Gasket, Burner (Small)
5	Gasket, Burner (Large)
6	Sealed Gas Burner Kit (Large Burner)
6	Sealed Gas Burner Kit (Small Burner (Includes Key No`s 7,8,9,10,11))
7	Shutter, Air (Available In Kit Only)
8	Screw, Burner
9	Clip, Ignitor
10	Orifice, Burner (Available In Kit Only)
11	Ignitor
12	Bezel, Small (Black (KGCT025YBL1))
12	Bezel, Small (Dark Taupe (KGCT025YAL1))
12	Bezel, Small (Shadow White (KGCT025YWH1))
13	Cap, Burner Small (Grey (KGCT025YWH0))
13	Cap, Burner Small (Black (KGCT025YBL1))
13	Cap, Burner Small (Thrush Brown (KGCT025YAL1))
14	Grate (Small) (LF & RR) (Black)
14	Grate (Small) (LF & RR) (White)
14	Grate (Small) (LF & RR) (Almond (Includes No.12))
15	Pad, Grate (Incls. 5 pads)
