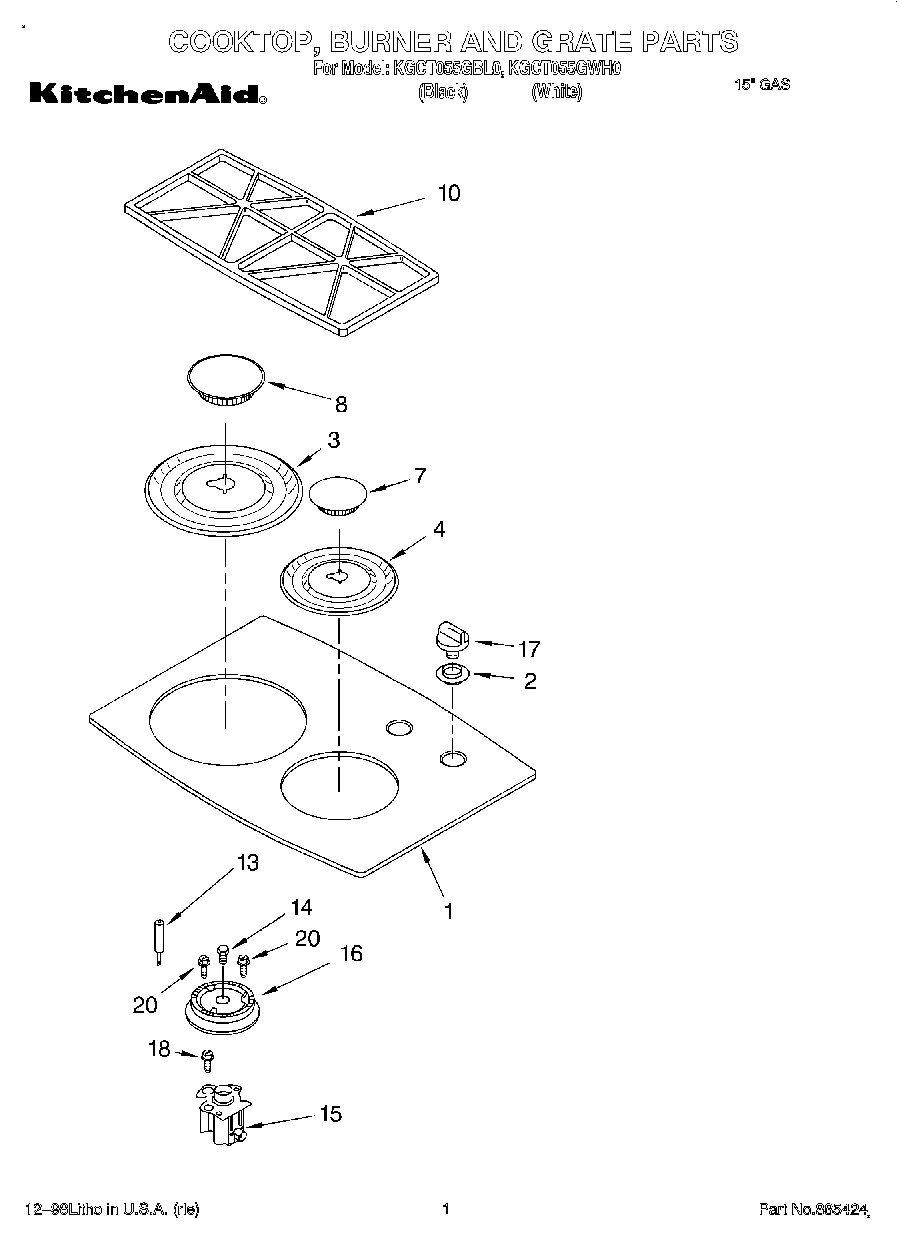

KGCT055GBL0 01 – SECTION

KGCT055GBL0 01 – SECTION

Written by

in

KGCT055GBL0 01 – SECTION

Products

PositionProduct
1Cooktop, Glass (White)
1Cooktop, Glass (Black)
2WP3180081 Whirlpool Grommet
2W10854242 Whirlpool Grommet
3Bowl, Burner 9K, 12K (LR, RF, LF) (White)
3Bowl, Burner 9K,12K (LR, RF, LF) (Black)
4Bowl, Burner 6K (RR) (Black)
4Bowl, Burner 6K (RR) (White)
7Cap, (RF) (LR) (White)
7Cap, (RF) (LR) (Black)
8Cap, (RR) (Black)
8Cap, (RR) (White)
10Grate, Burner (White)
10Grate, Burner (Black)
13Ignitor
14Orifice (RF)
14WP9753930 Whirlpool Orifice
15Holder, Orifice (Includes 13 & 14) (RF 6K)
15Holder, Orifice (Includes 13 & 14) (LF 12K)
16Head, Burner (RF)
16Head, Burner (LF)
17WP3191922 Whirlpool Control Knob
17WPL 3191923
18WP4449809 Whirlpool Screw
20WP3368921 Whirlpool Screw
