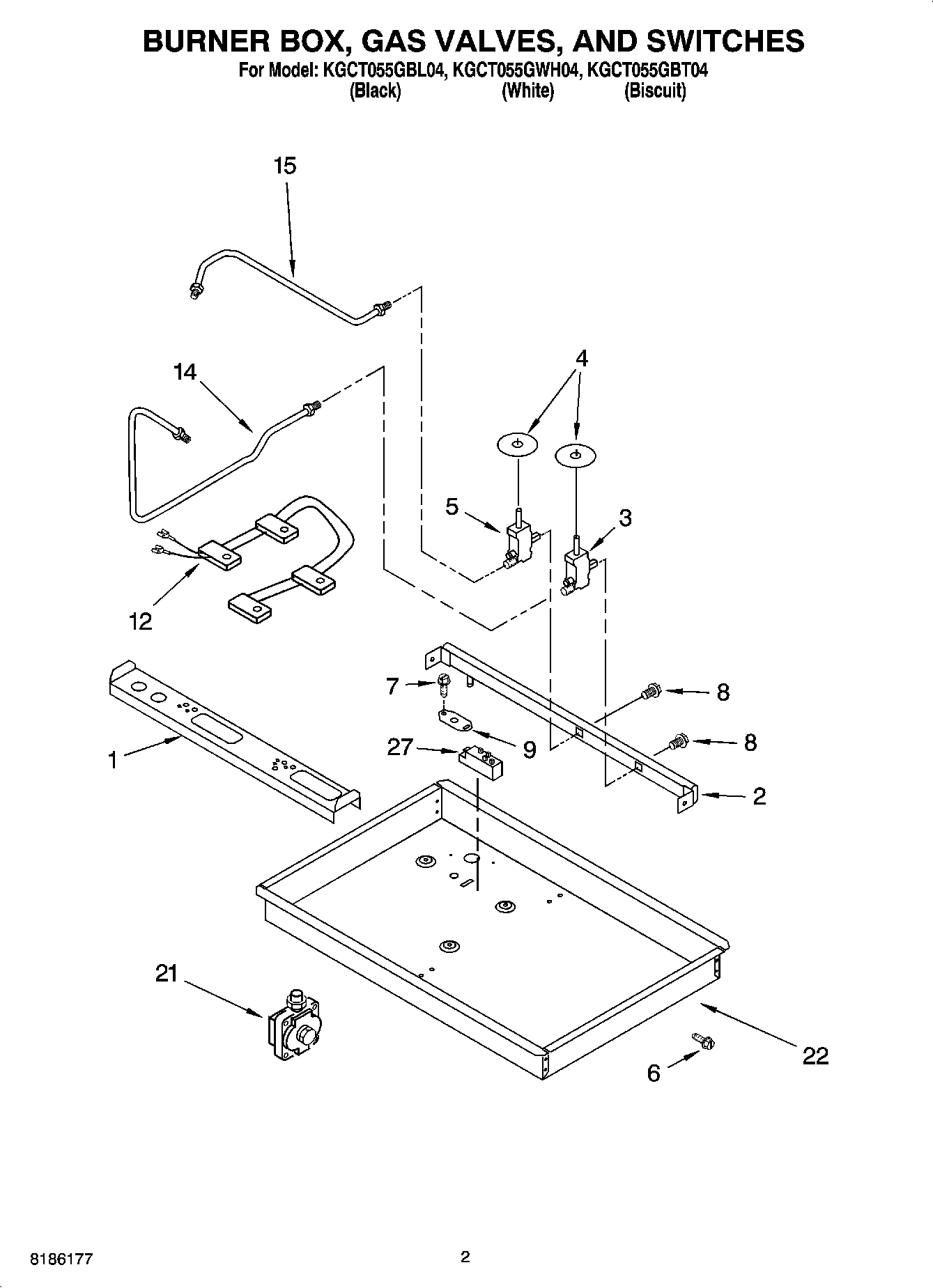

KGCT055GBL04 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
3Valve, Burner (Small (1))
4WP3188425 Whirlpool Seal Switch
5Valve, Burner (Large (3))
6WP4449809 Whirlpool Screw
7W10491985 Whirlpool Screw
8WP3186217 Whirlpool Screw
93192491 Whirlpool Support Bracket
12Harness & Switches
14Tubing, Gas Burner (Front)
15Tubing, Gas Burner (Rear)
21Regulator, Pressure
22Burner Box
27Module Spark Reignition
27Seal, Foam 15“
27Harness, Ignitor 15“
27FOLLOWING PARTS NOT ILLUSTRATED
27Miscellaneous
27WP3192741 Whirlpool LP Conversion Kit
274456626 Whirlpool Wire
27WP12990527 Whirlpool Microwave Screw
27WP3177991 Whirlpool Screw
274173634 Whirlpool Bushing
27W10392007 Whirlpool Power Cord
278186533 Whirlpool Hardware
27Hardware, Mounting
27WIRING HARNESS PARTS
