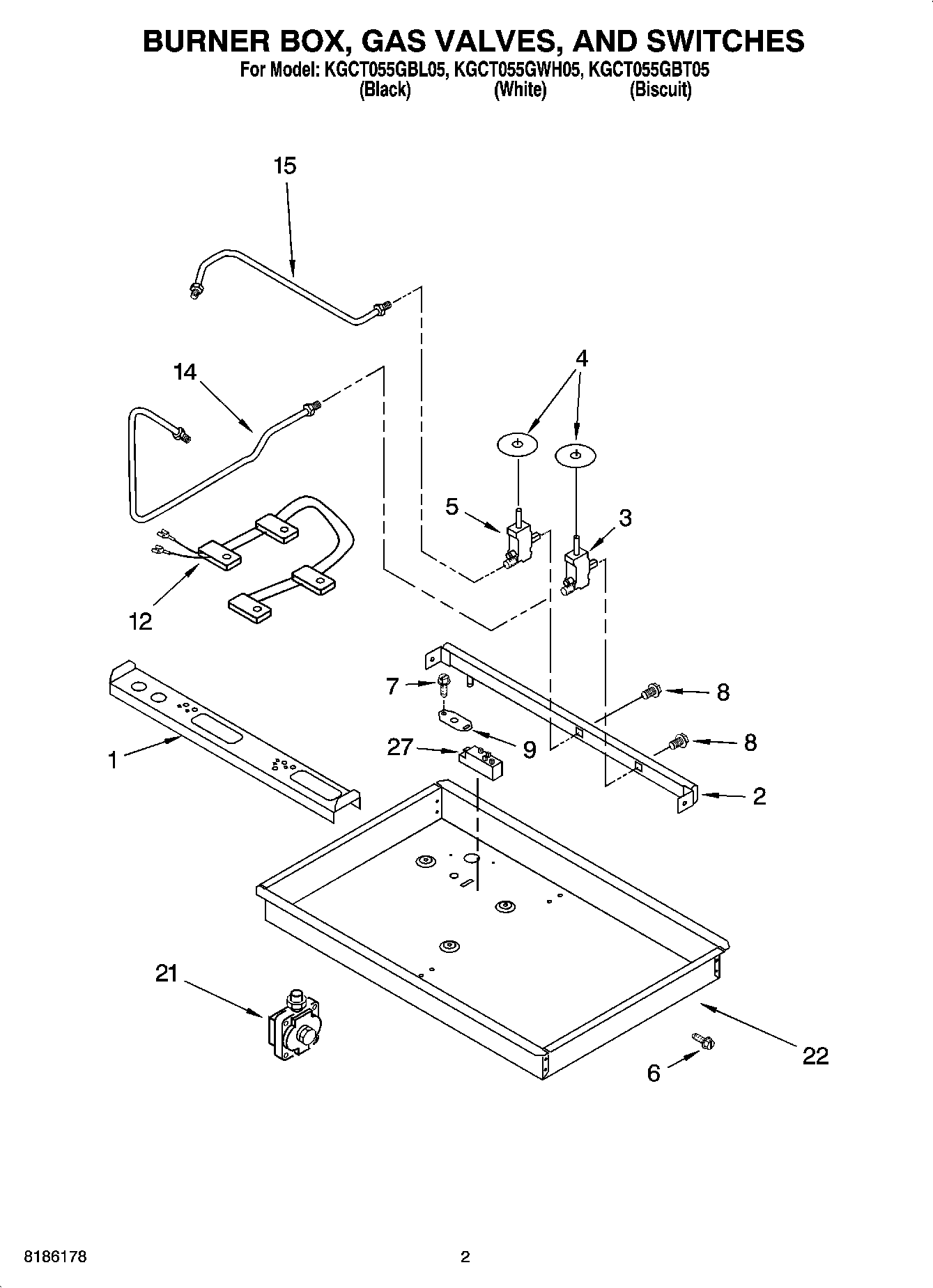

KGCT055GBL05 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1W10203756 Whirlpool Support
2Pipe, Manifold
3WP4456816 Whirlpool Burner Valve
4WP3188425 Whirlpool Seal Switch
5WP4456817 Whirlpool Burner Valve
6WP4449809 Whirlpool Screw
7W10491985 Whirlpool Screw
8WP3186217 Whirlpool Screw
93192491 Whirlpool Support Bracket
12WP4456905 Whirlpool Wire Harness
14Tubing, Gas Burner (Front)
15Tubing, Gas Burner (Rear)
21Regulator, Pressure
22Burner Box
27Seal, Foam 15“
27Miscellaneous
27Module Spark Reignition
27FOLLOWING PARTS NOT ILLUSTRATED
27Harness, Ignitor 15“
27Hardware Kit (Mounting)
274456626 Whirlpool Wire
27WP3192741 Whirlpool LP Conversion Kit
27WP12990527 Whirlpool Microwave Screw
27WP3177991 Whirlpool Screw
274173634 Whirlpool Bushing
27W10392007 Whirlpool Power Cord
278186533 Whirlpool Hardware
27WIRING HARNESS PARTS
