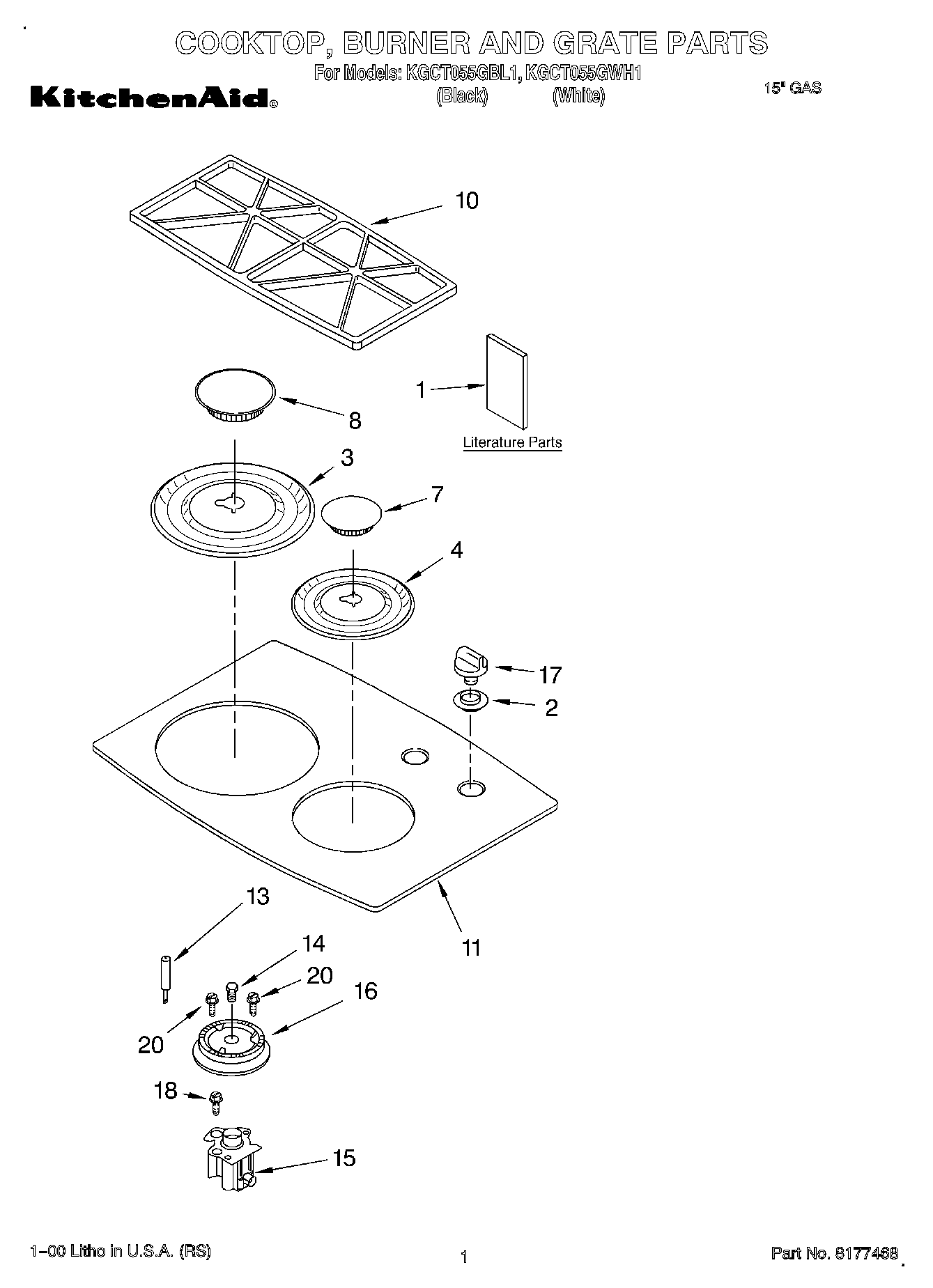

KGCT055GBL1 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Installation Instructions
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
3	Bowl, Burner 9K, 12K (LR, RF, LF) (White)
3	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
4	Bowl, Burner 6K (RR) (White)
4	Bowl, Burner 6K (RR) (Black)
7	Cap, (RF) (LR) (White)
7	Cap, (RF) (LR) (Black)
8	Cap, (RR) (Black)
8	Cap, (RR) (White)
10	Grate, Burner (Black)
10	Grate, Burner (White)
11	Cooktop, Glass (Black)
11	Cooktop, Glass (White)
13	WP9754215 Whirlpool Surface Igniter
14	WP9753930 Whirlpool Orifice
14	Orifice (RF)
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455981 Whirlpool Burner Head
17	WPL 3191923
17	WP3191922 Whirlpool Control Knob
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
