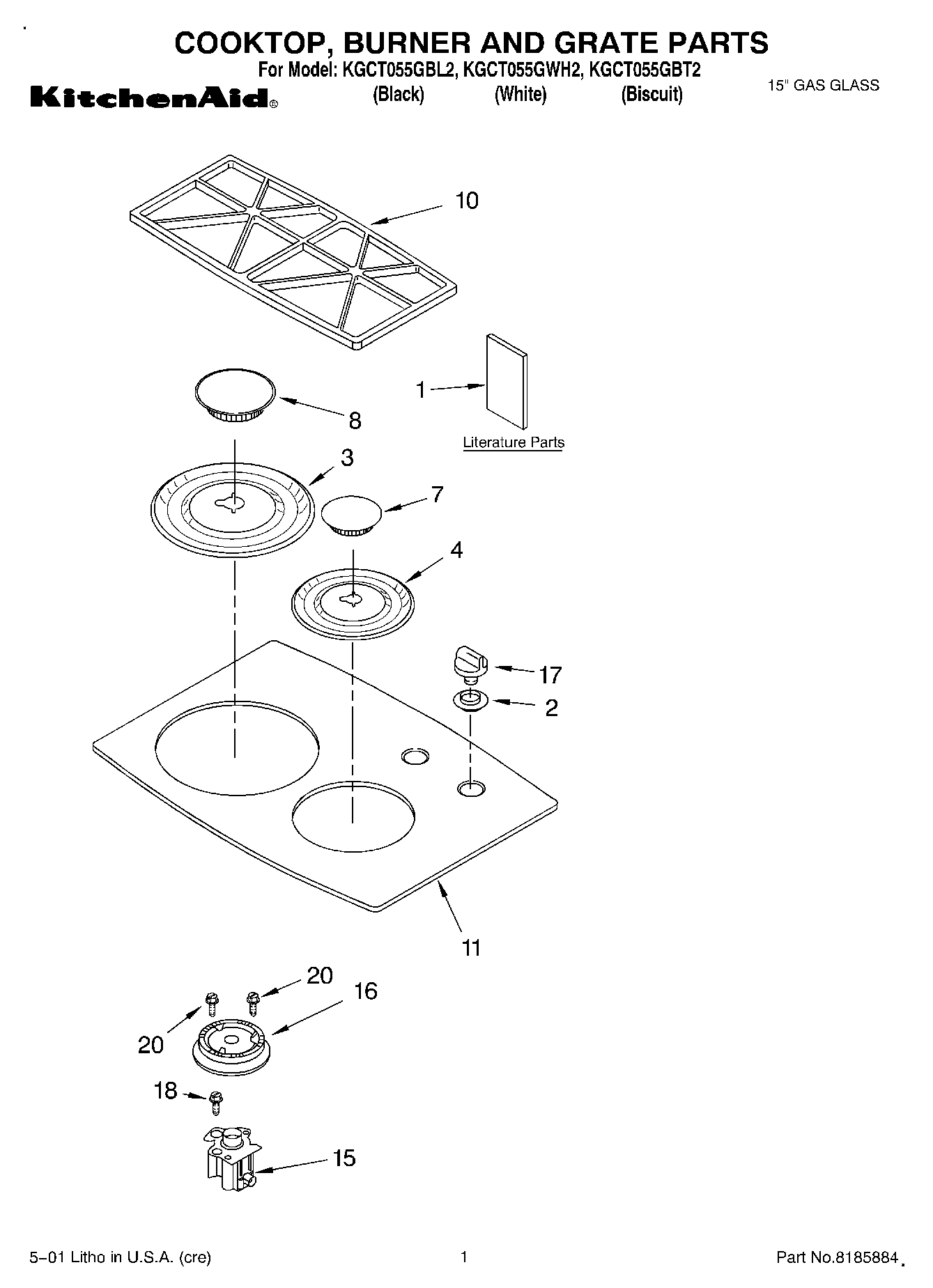

KGCT055GBL2 01 – SECTION

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	Grommet, Glass (Biscuit)
2	WP3180081 Whirlpool Grommet
2	W10854242 Whirlpool Grommet
3	Bowl, Burner 9K,12K (LR, RF, LF) (Black)
3	Bowl, Burner 9K, 12K (LR, RF, LF) (White)
3	Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit)
4	Bowl, Burner 6K (RR) (Biscuit)
4	Bowl, Burner 6K (RR) (Black)
4	Bowl, Burner 6K (RR) (White)
7	Cap, (RF) (LR) (White)
7	Cap, (RF) (LR) (Biscuit)
7	Cap, (RF) (LR) (Black)
8	Cap, (RR) (White)
8	Cap, (RR) (Black)
8	Cap, (RR) (Biscuit)
10	Grate, Burner (Biscuit)
10	Grate, Burner (White)
10	Grate, Burner (Black)
11	Cooktop, Glass (Black)
11	Cooktop, Glass (White)
11	Cooktop, Glass (Biscuit)
15	Holder, Orifice (Includes 13 & 14) (LF 12K)
15	Holder, Orifice (Includes 13 & 14) (RF 6K)
16	WP4455979 Whirlpool Range Small Burner Head
16	WP4455981 Whirlpool Burner Head
17	WPL 3191923
17	WP3191922 Whirlpool Control Knob
17	WPL 3191925
18	WP4449809 Whirlpool Screw
20	WP3368921 Whirlpool Screw
