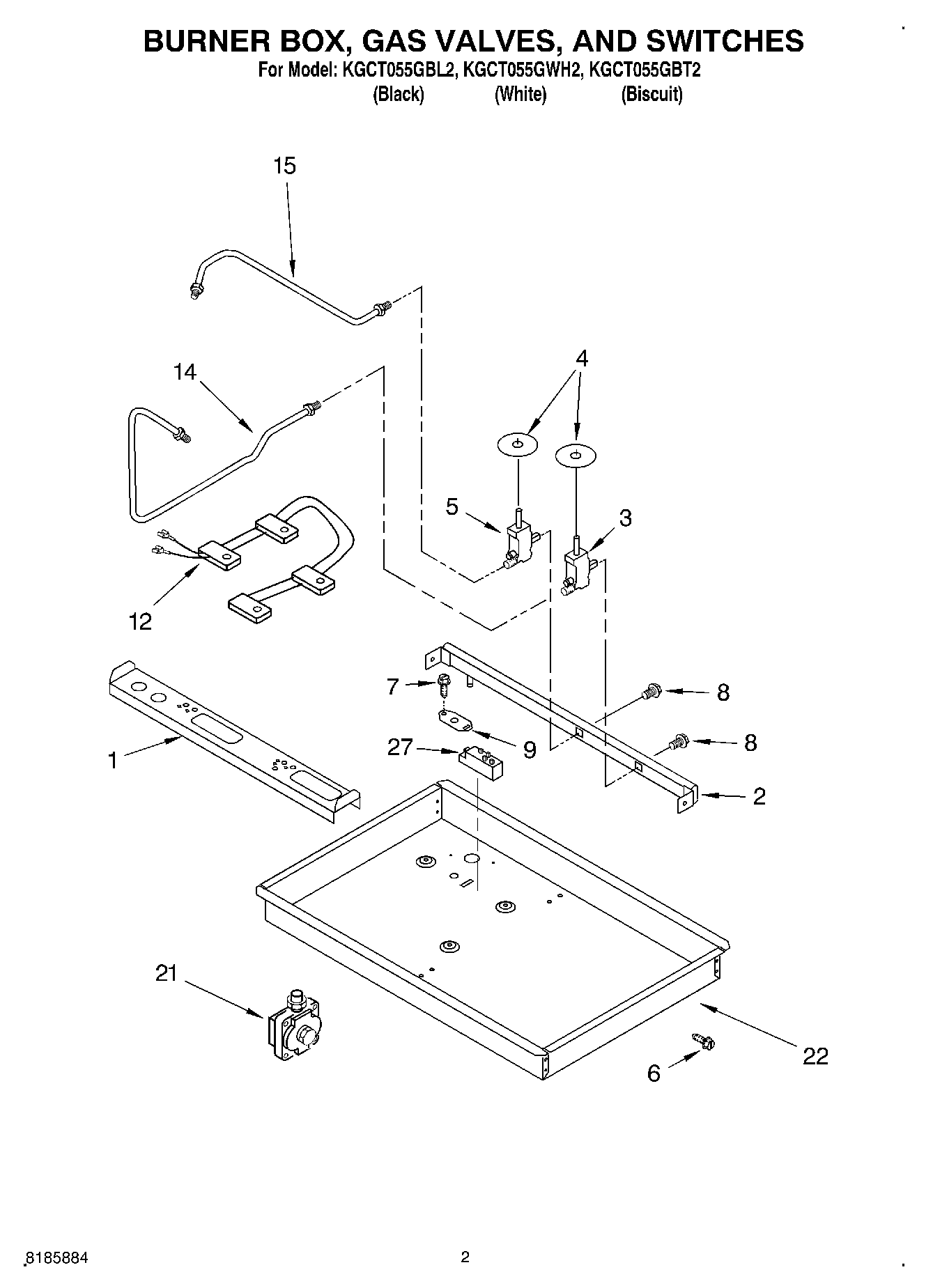

KGCT055GBL2 02 – SECTION

Products

Position	Product
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	WP4449809 Whirlpool Screw
7	W10491985 Whirlpool Screw
8	Bolt (Gas Valve)
9	3192491 Whirlpool Support Bracket
12	WP3191334 Whirlpool Wire Harness
14	Tubing, Gas Burner (Front)
15	Tubing, Gas Burner (Rear)
21	Regulator, Pressure
22	Burner Box
27	Seal, Foam 15“
27	Harness, Ignitor 15“
27	15“
27	WP12990527 Whirlpool Microwave Screw
27	WP3192741 Whirlpool LP Conversion Kit
27	WP3177991 Whirlpool Screw
27	4173634 Whirlpool Bushing
27	W10392007 Whirlpool Power Cord
27	Nut, Tinnerman (2)
27	8186533 Whirlpool Hardware
27	Hardware, Mounting
27	Module Spark Reignition
