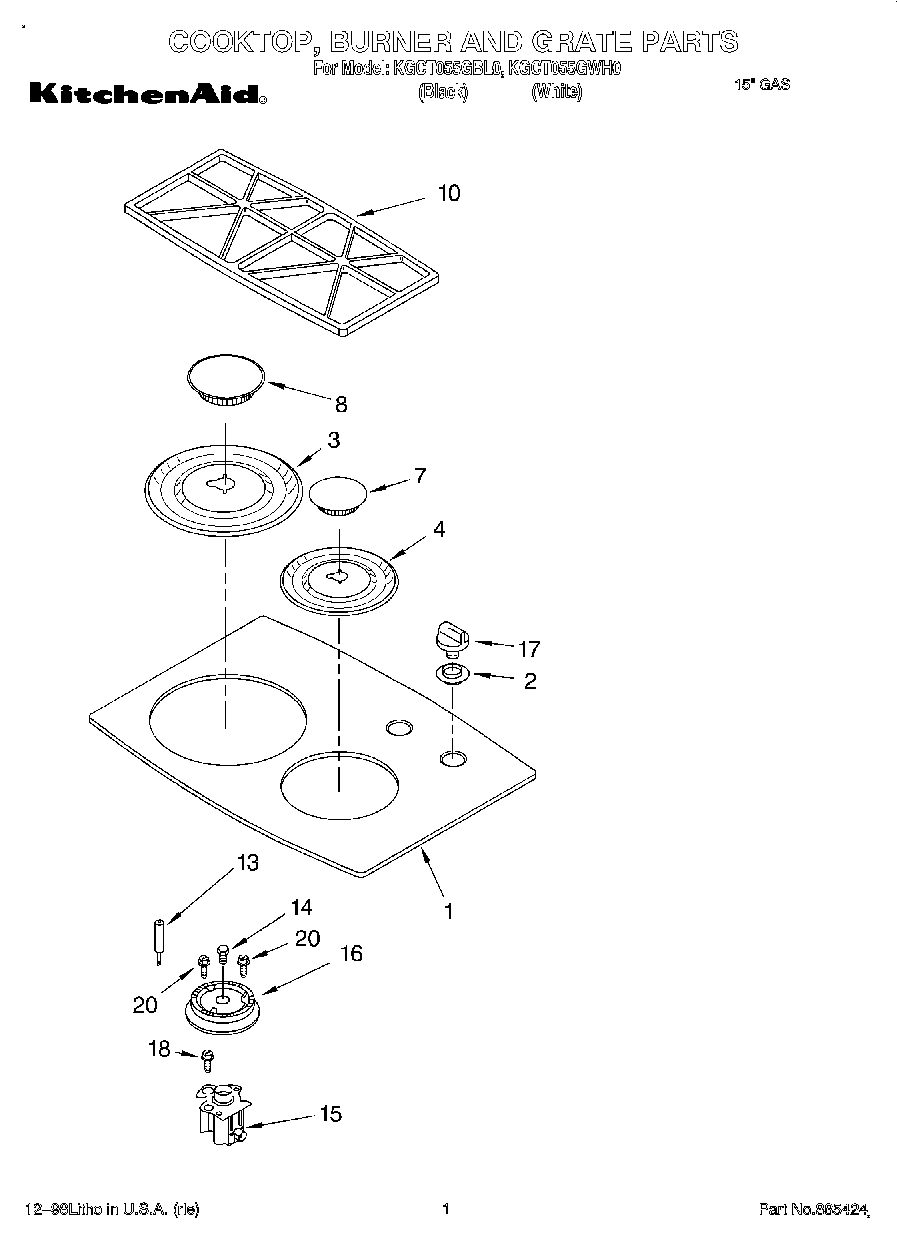

| 1 | Cooktop, Glass (White) |
| 1 | Cooktop, Glass (Black) |
| 2 | WP3180081 Whirlpool Grommet |
| 2 | W10854242 Whirlpool Grommet |
| 3 | Bowl, Burner 9K, 12K (LR, RF, LF) (White) |
| 3 | Bowl, Burner 9K,12K (LR, RF, LF) (Black) |
| 4 | Bowl, Burner 6K (RR) (Black) |
| 4 | Bowl, Burner 6K (RR) (White) |
| 7 | Cap, (RF) (LR) (White) |
| 7 | Cap, (RF) (LR) (Black) |
| 8 | Cap, (RR) (Black) |
| 8 | Cap, (RR) (White) |
| 10 | Grate, Burner (White) |
| 10 | Grate, Burner (Black) |
| 13 | Ignitor |
| 14 | Orifice (RF) |
| 14 | WP9753930 Whirlpool Orifice |
| 15 | Holder, Orifice (Includes 13 & 14) (RF 6K) |
| 15 | Holder, Orifice (Includes 13 & 14) (LF 12K) |
| 16 | Head, Burner (RF) |
| 16 | Head, Burner (LF) |
| 17 | WP3191922 Whirlpool Control Knob |
| 17 | WPL 3191923 |
| 18 | WP4449809 Whirlpool Screw |
| 20 | WP3368921 Whirlpool Screw |
