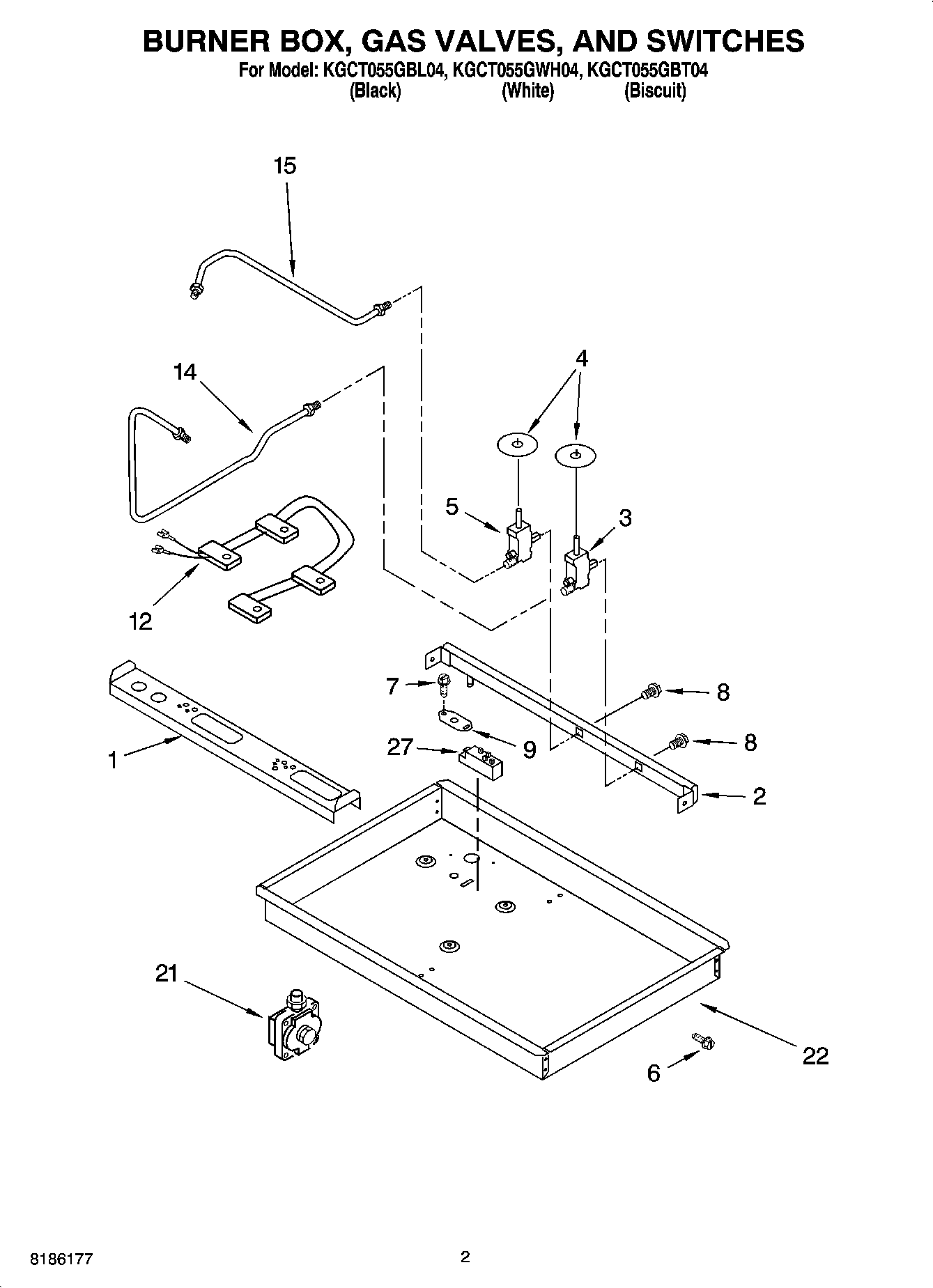

KGCT055GWH04 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	WP4449809 Whirlpool Screw
7	W10491985 Whirlpool Screw
8	WP3186217 Whirlpool Screw
9	3192491 Whirlpool Support Bracket
12	Harness & Switches
14	Tubing, Gas Burner (Front)
15	Tubing, Gas Burner (Rear)
21	Regulator, Pressure
22	Burner Box
27	Module Spark Reignition
27	Seal, Foam 15“
27	Harness, Ignitor 15“
27	FOLLOWING PARTS NOT ILLUSTRATED
27	Miscellaneous
27	WP3192741 Whirlpool LP Conversion Kit
27	4456626 Whirlpool Wire
27	WP12990527 Whirlpool Microwave Screw
27	WP3177991 Whirlpool Screw
27	4173634 Whirlpool Bushing
27	W10392007 Whirlpool Power Cord
27	8186533 Whirlpool Hardware
27	Hardware, Mounting
27	WIRING HARNESS PARTS
