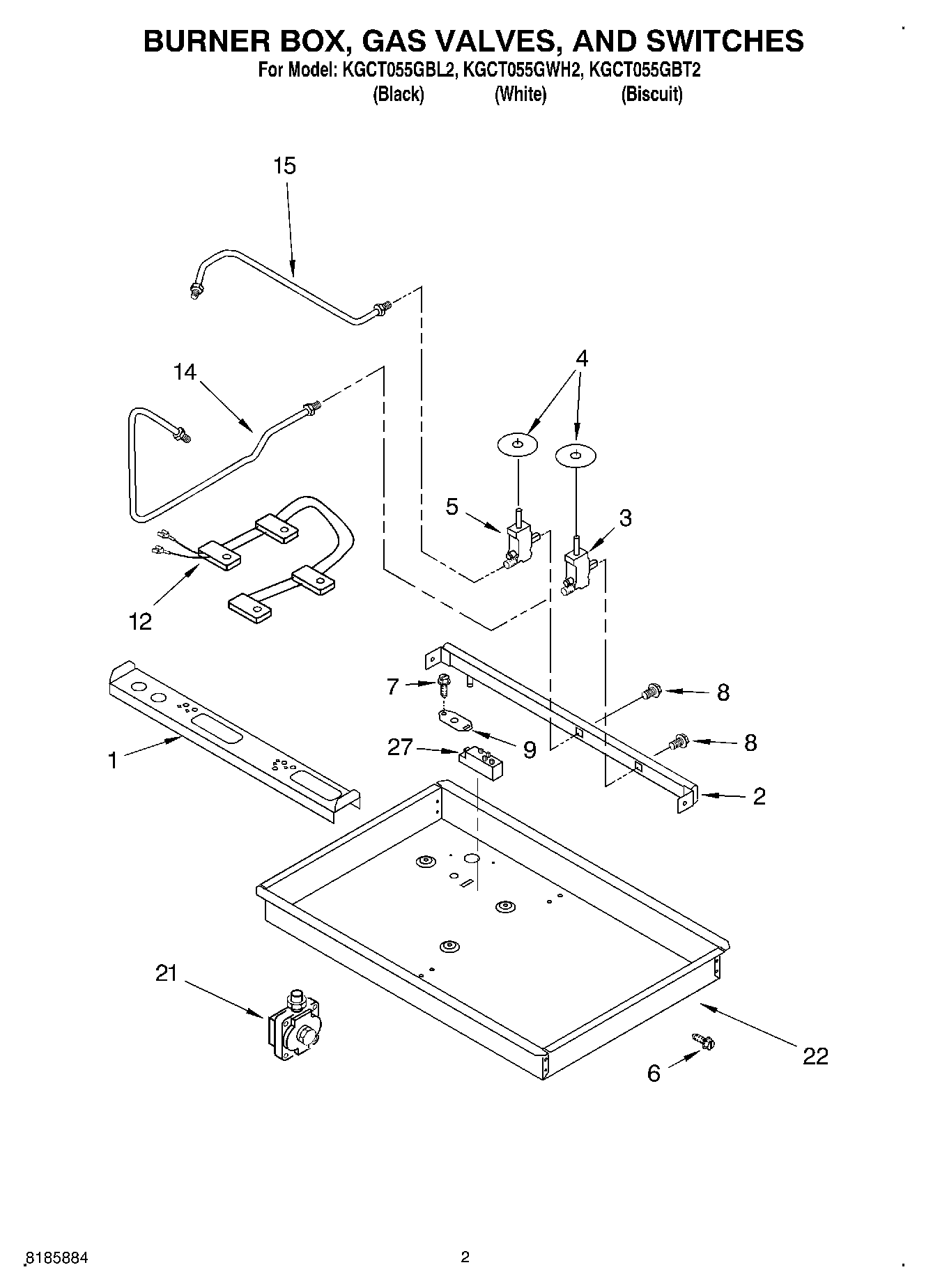

| 1 | W10203756 Whirlpool Support |
| 2 | Pipe, Manifold |
| 3 | Valve, Burner (Small (1)) |
| 4 | WP3188425 Whirlpool Seal Switch |
| 5 | Valve, Burner (Large (3)) |
| 6 | WP4449809 Whirlpool Screw |
| 7 | W10491985 Whirlpool Screw |
| 8 | Bolt (Gas Valve) |
| 9 | 3192491 Whirlpool Support Bracket |
| 12 | WP3191334 Whirlpool Wire Harness |
| 14 | Tubing, Gas Burner (Front) |
| 15 | Tubing, Gas Burner (Rear) |
| 21 | Regulator, Pressure |
| 22 | Burner Box |
| 27 | Seal, Foam 15`` |
| 27 | Harness, Ignitor 15`` |
| 27 | 15`` |
| 27 | WP12990527 Whirlpool Microwave Screw |
| 27 | WP3192741 Whirlpool LP Conversion Kit |
| 27 | WP3177991 Whirlpool Screw |
| 27 | 4173634 Whirlpool Bushing |
| 27 | W10392007 Whirlpool Power Cord |
| 27 | Nut, Tinnerman (2) |
| 27 | 8186533 Whirlpool Hardware |
| 27 | Hardware, Mounting |
| 27 | Module Spark Reignition |
