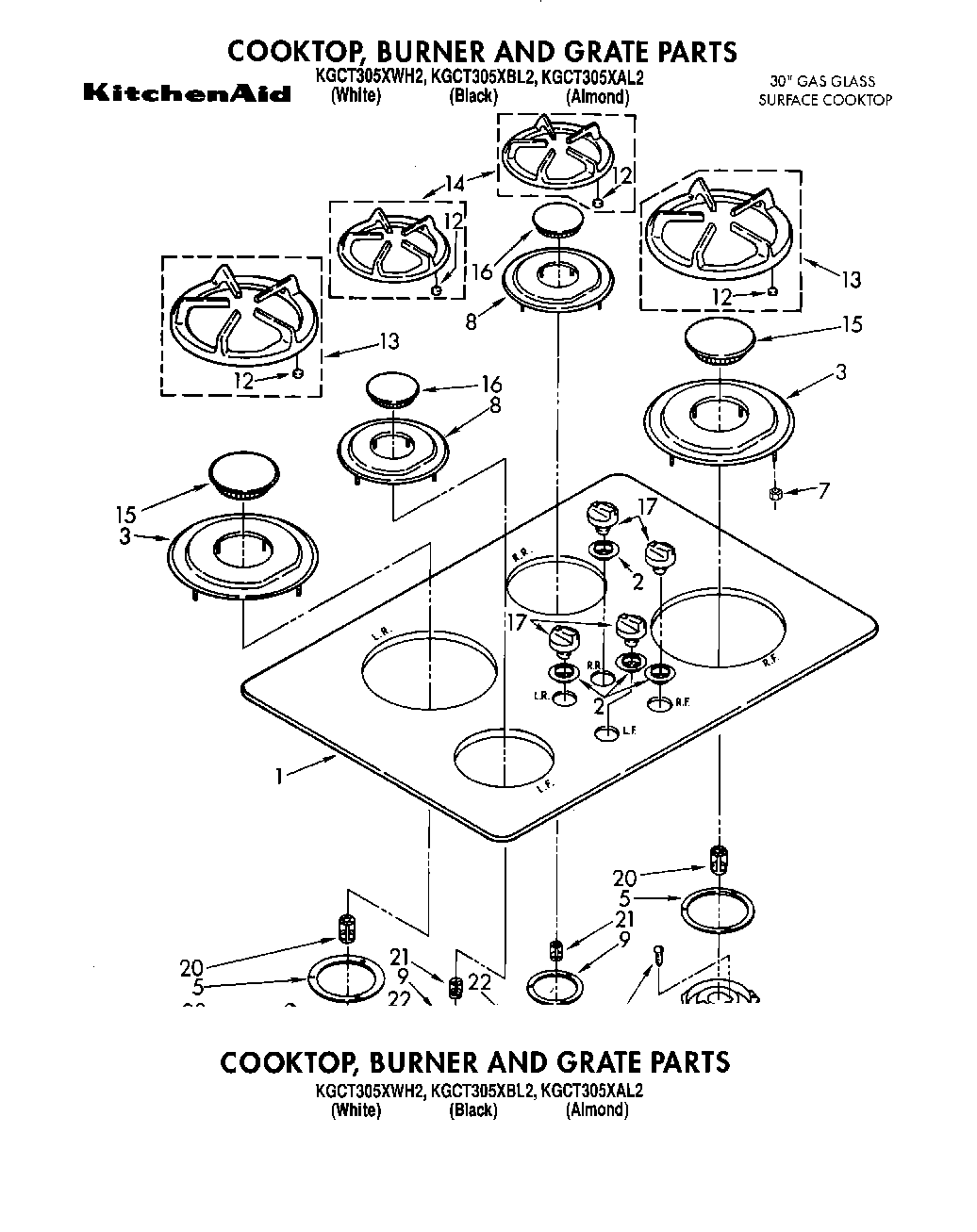

KGCT302XAL2 01 – SECTION

Products

Position	Product
1	Cooktop, Glass (White Model)
1	Cooktop, Glass (Black Model)
1	Cooktop, Glass (Almond Model)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	W10854241 Whirlpool Grommet
3	Bezel, Large (Dark Taupe (KGCT025YAL1))
3	Bezel, Large (Shadow White (KGCT205YWH1))
3	Bezel, Large (Black (KGCT025YBL1))
5	Gasket, Burner (Large)
7	Nut (4)
8	Bezel, Small (Dark Taupe (KGCT025YAL1))
8	Bezel, Small (Shadow White (KGCT025YWH1))
8	Bezel, Small (Black (KGCT025YBL1))
9	Gasket, Burner (Small)
12	Pad, Grate (Incls. 5 pads)
13	Grate, Large (RF & LR) (Black)
13	Grate, Large (RF & LR) (Almond (Includes No.12))
13	Grate, Large (RF & LR) (White)
14	Grate (Small) (LF & RR) (White)
14	Grate (Small) (LF & RR) (Almond (Includes No.12))
14	Grate (Small) (LF & RR) (Black)
15	Cap, Large Burner (Black (KGCT025YBL1))
15	Cap, Large Burner (Grey (KGCT025YWH1))
15	Cap, Large Burner (Thrush Brown (KGCT025YAL1))
16	Cap, Burner Small (Black (KGCT025YBL1))
16	Cap, Burner Small (Grey (KGCT025YWH0))
16	Cap, Burner Small (Thrush Brown (KGCT025YAL1))
17	WP3181305 Whirlpool Knob
17	WP3181306 Whirlpool Knob
17	WP3181304 Whirlpool Knob Assembly
18	Sealed Gas Burner Kit (Small Burner (Includes Key No`s 7,8,9,10,11))
19	Sealed Gas Burner Kit (Large Burner)
20	Shutter, Air (Large Shutter)
21	Shutter, Air (Small Shutter)
22	Screw, Burner
