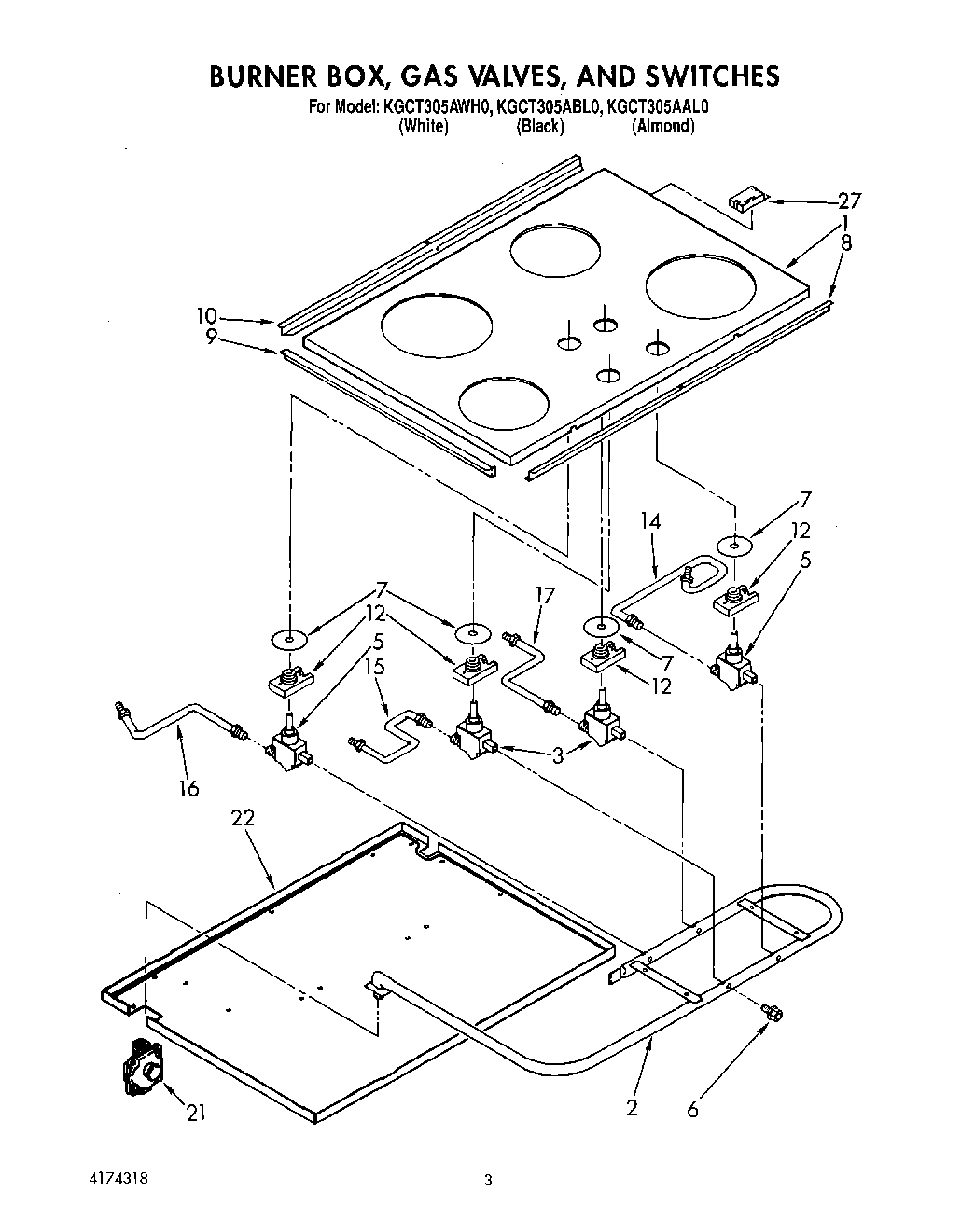

KGCT305AAL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES

KGCT305AAL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

KGCT305AAL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Use & Care Guide
Installation Instructions
1Cover, Top Assy.
2Pipe, Manifold
3Valve, Gas Burner (LF, RR, & CR)
5Valve, Gas Burner (RF & LR)
6Bolt (Gas Valve)
6Screw (8)
7WP3188425 Whirlpool Seal Switch
8Frame, Front
9Screw
9Frame, Side (2)
10Frame, Rear
12WP3185830 Whirlpool Oven Igniter Switch
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
21Regulator, Pressure
22Cover, Burner Box
27WP4454392 Whirlpool Spark Module
27Screw (4)
