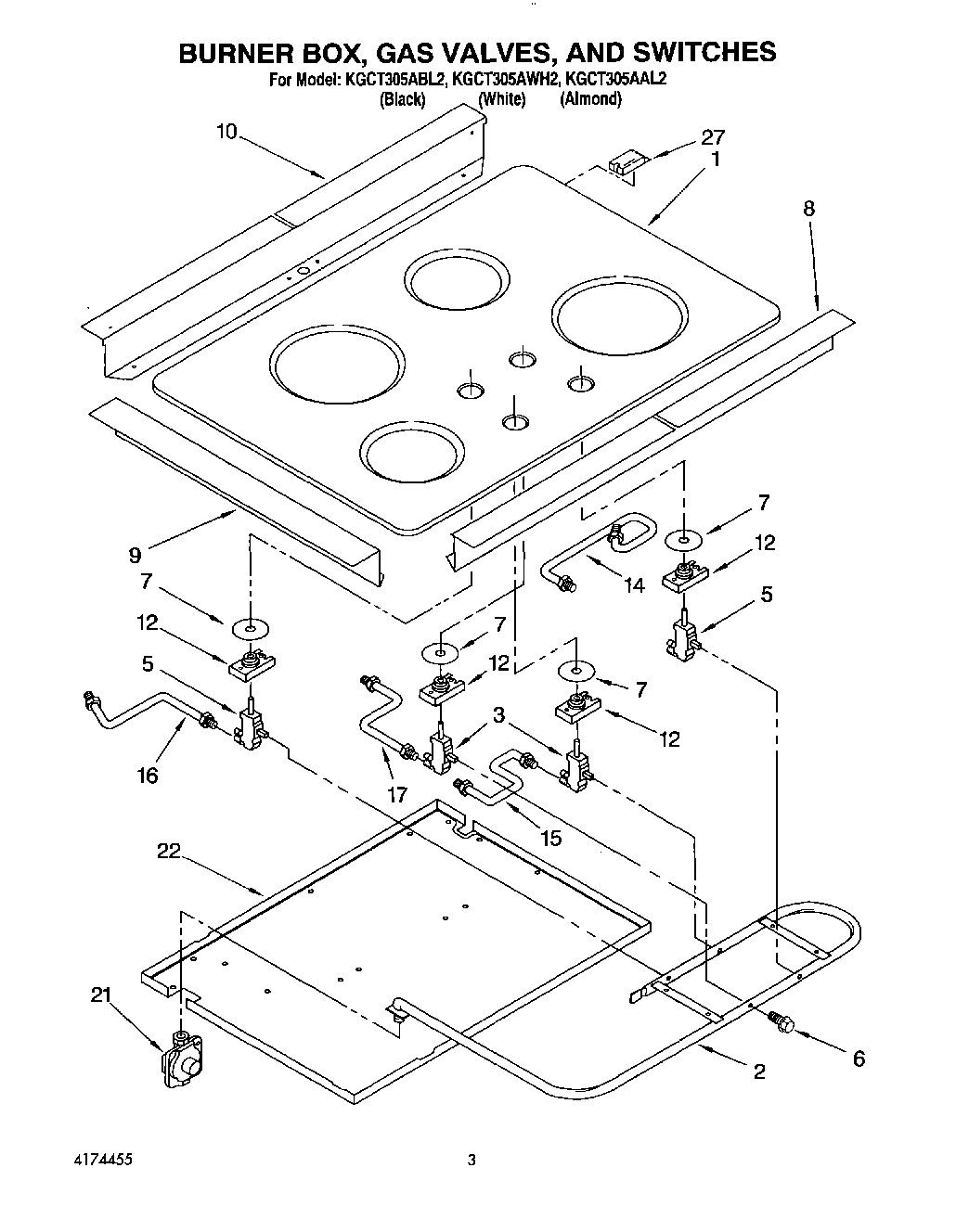

KGCT305ABL2 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Use & Care Guide
	Installation Instructions
1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF, RR, & CR)
5	Valve, Gas Burner (RF & LR)
6	Bolt (Gas Valve)
7	WP3188425 Whirlpool Seal Switch
8	Frame, Front
9	Screw
9	Frame, Side (2)
10	Frame, Rear
12	WP3185830 Whirlpool Oven Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	Cover, Burner Box
27	WP4454392 Whirlpool Spark Module
