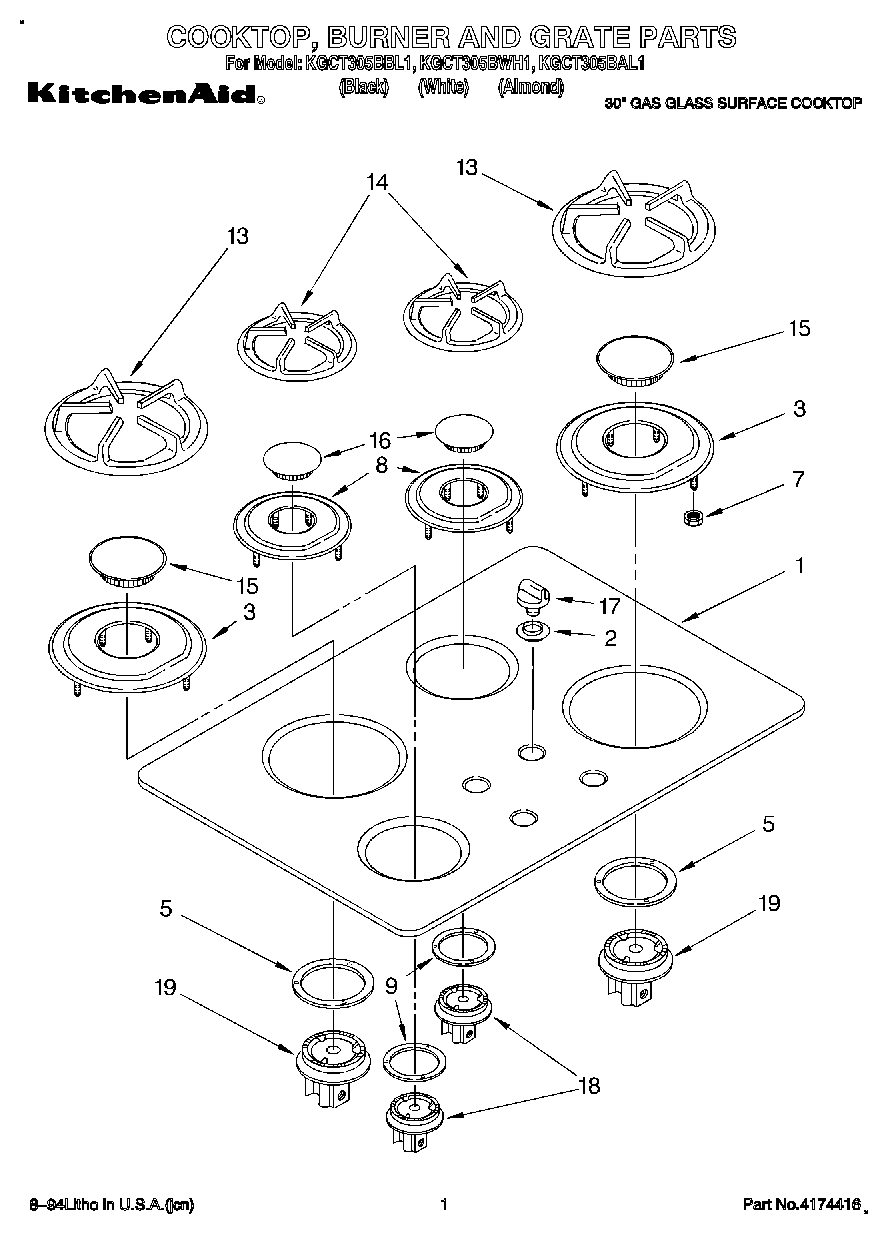

KGCT305BAL1 01 – COOKTOP, BURNER AND GRATEadmin2025-04-26T11:17:59+00:00KGCT305BAL1 01 – COOKTOP, BURNER AND GRATE
Products
| Position | Product |
|---|
| 1 | Cooktop, Glass (White) |
| 1 | Cooktop, Glass (Almond) |
| 1 | Cooktop, Glass (Black) |
| 2 | W10854242 Whirlpool Grommet |
| 2 | WP3180081 Whirlpool Grommet |
| 2 | W10854241 Whirlpool Grommet |
| 3 | Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7) |
| 3 | Bezel, Cooktop (Large) (Black) |
| 3 | Bezel, Cooktop (Large) (White) |
| 5 | Gasket, Burner (Large) |
| 7 | Nut (4) |
| 8 | Bezel, Cooktop (Small) (Black) |
| 8 | Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9) |
| 8 | Bezel, Cooktop (Small) (White) |
| 9 | Gasket, Burner (Small) |
| 13 | Grate, Large Burner (Black Model) |
| 13 | Grate, Large Burner (Almond Model) |
| 13 | Grate, Large Burner (White Model) |
| 14 | Grate, Burner Small (Almond Model) |
| 14 | Grate, Burner Small (White Model) |
| 14 | Grate, Burner Small (Black Model) |
| 15 | Cap, Rapid Burner Large (2) (White) |
| 15 | Cap, Rapid Burner Large (2) (Black) |
| 15 | Cap, Rapid Burner Large (2) (Almond) |
| 16 | Cap, Semi Rapid Small (2) (White) |
| 16 | Cap, Semi Rapid Small (2) (Almond Burner (2)) |
| 16 | Cap, Semi Rapid Small (2) (Black) |
| 17 | WP3182569 Whirlpool Knob |
| 17 | WP3182568 Whirlpool Control Knob |
| 17 | WP3182567 Whirlpool Oven Knob |
| 18 | WPL 3185821 |
| 19 | WPL 3185822 |
