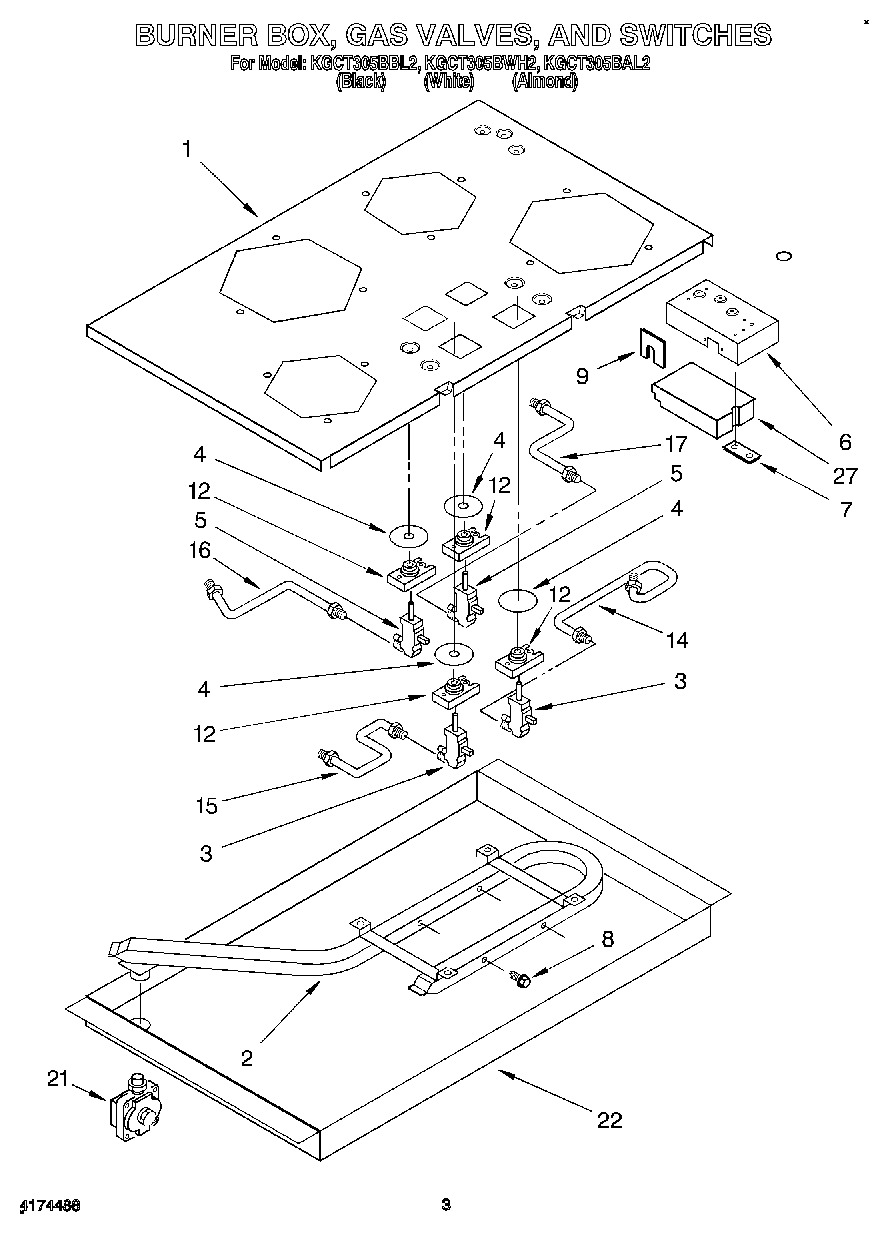

KGCT305BAL2 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Hardware, Mounting
	Wiring Diagram
	Use & Care Guide
	Cord, Power
	Installation Instructions
	Conversion Kit Natural Gas To L.P.
	seal, foam tape
	WPW10339879 Whirlpool Wire Tie
1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF, RR, & CR)
4	Washer, Flat
4	WP3188425 Whirlpool Seal Switch
4	Nut (4)
5	Valve, Gas Burner (RF & LR)
6	Sheild, Heat
7	WP3177991 Whirlpool Screw
7	Bracket
8	Bolt (Gas Valve)
9	Screw (6)
9	Grommet
12	WP3185830 Whirlpool Oven Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	4173634 Whirlpool Bushing
22	Burner Box
27	WP4454392 Whirlpool Spark Module
27	Screw
