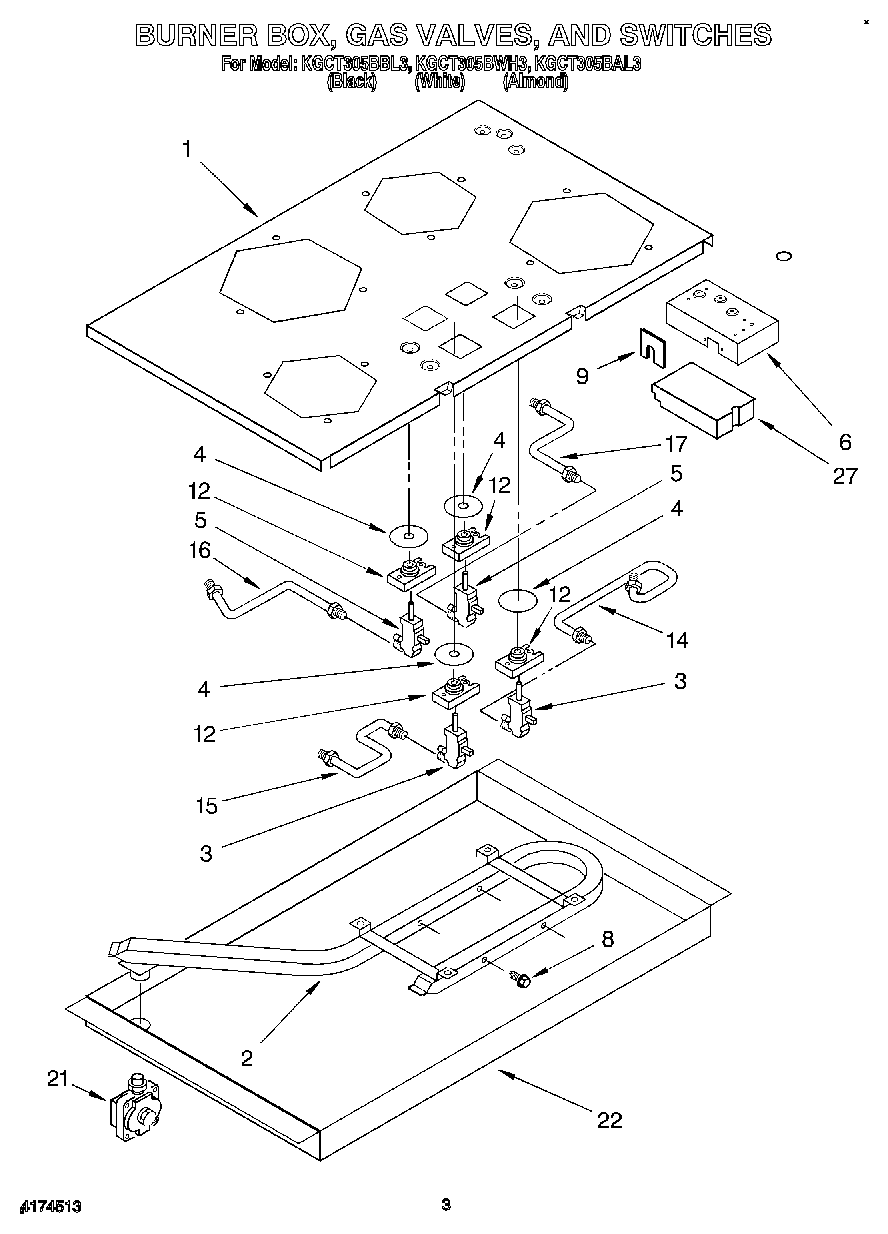

KGCT305BAL3 04 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
Hardware, Mounting
Conversion Kit Natural Gas To L.P.
seal, foam tape
814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
Wiring Diagram
Use & Care Guide
WPW10339879 Whirlpool Wire Tie
Installation Instructions
Nut, Tinnerman (2)
Screw
8186533 Whirlpool Hardware
Cord, Power
1Cover, Top Assy.
2WP3177991 Whirlpool Screw
2Washer, Flat
2Pipe, Manifold
2Nut (4)
3Valve, Gas Burner (LF, RR, & CR)
4WP3188425 Whirlpool Seal Switch
5Valve, Gas Burner (RF & LR)
6Sheild, Heat
8Bolt (Gas Valve)
9Grommet
9Screw (6)
12WP3185830 Whirlpool Oven Igniter Switch
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
21Regulator, Pressure
224173634 Whirlpool Bushing
22Burner Box
27Screw
27WP4454392 Whirlpool Spark Module
