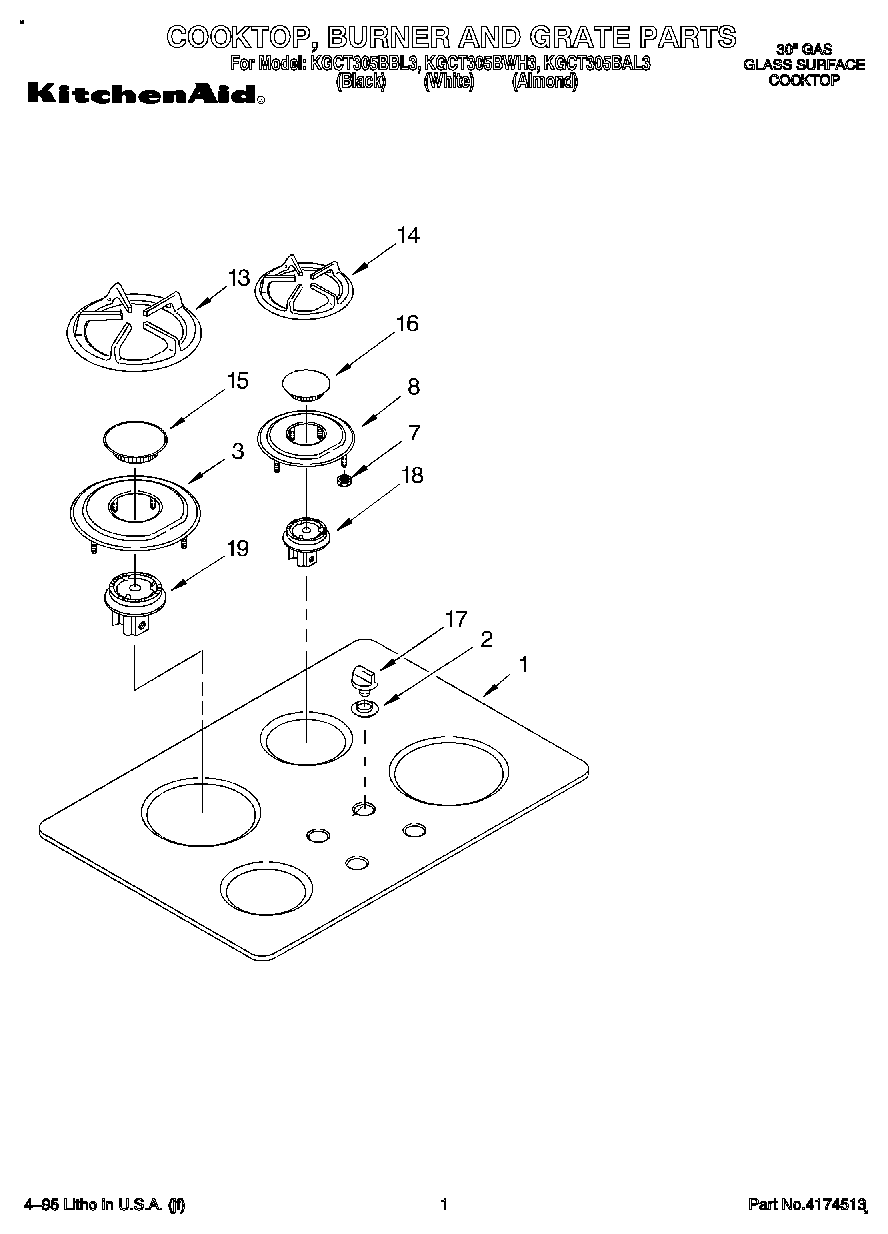

KGCT305BBL3 01 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop, Glass (White)
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (Black)
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
2	W10854241 Whirlpool Grommet
3	Bezel, Cooktop (Large) (Black)
3	Bezel, Cooktop (Large) (White)
3	Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
7	Nut (4)
8	Bezel, Cooktop (Small) (Black)
8	Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
8	Bezel, Cooktop (Small) (White)
13	Grate, Large Burner (White Model)
13	Grate, Large Burner (Black Model)
13	Grate, Large Burner (Almond Model)
14	Grate, Burner Small (Black Model)
14	Grate, Burner Small (Almond Model)
14	Grate, Burner Small (White Model)
15	Cap, Rapid Burner Large (2) (White)
15	Cap, Rapid Burner Large (2) (Black)
15	Cap, Rapid Burner Large (2) (Almond)
16	Cap, Semi Rapid Small (2) (White)
16	Cap, Semi Rapid Small (2) (Almond Burner (2))
16	Cap, Semi Rapid Small (2) (Black)
17	WP3182569 Whirlpool Knob
17	WP3182568 Whirlpool Control Knob
17	WP3182567 Whirlpool Oven Knob
18	WPL 3185821
19	WPL 3185822
