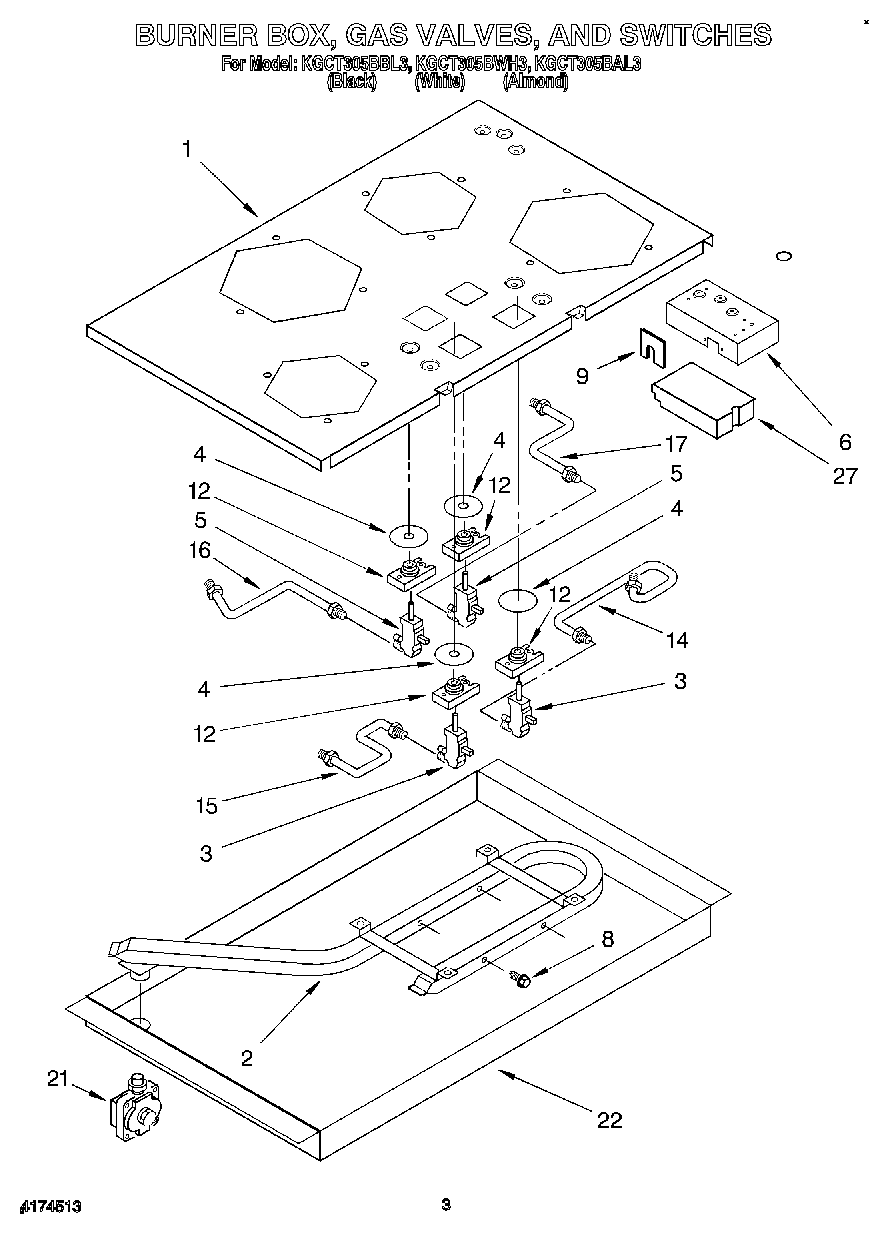

KGCT305BBL3 04 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Hardware, Mounting
	Conversion Kit Natural Gas To L.P.
	seal, foam tape
	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
	Wiring Diagram
	Use & Care Guide
	WPW10339879 Whirlpool Wire Tie
	Installation Instructions
	Nut, Tinnerman (2)
	Screw
	8186533 Whirlpool Hardware
	Cord, Power
1	Cover, Top Assy.
2	WP3177991 Whirlpool Screw
2	Washer, Flat
2	Pipe, Manifold
2	Nut (4)
3	Valve, Gas Burner (LF, RR, & CR)
4	WP3188425 Whirlpool Seal Switch
5	Valve, Gas Burner (RF & LR)
6	Sheild, Heat
8	Bolt (Gas Valve)
9	Grommet
9	Screw (6)
12	WP3185830 Whirlpool Oven Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	4173634 Whirlpool Bushing
22	Burner Box
27	Screw
27	WP4454392 Whirlpool Spark Module
