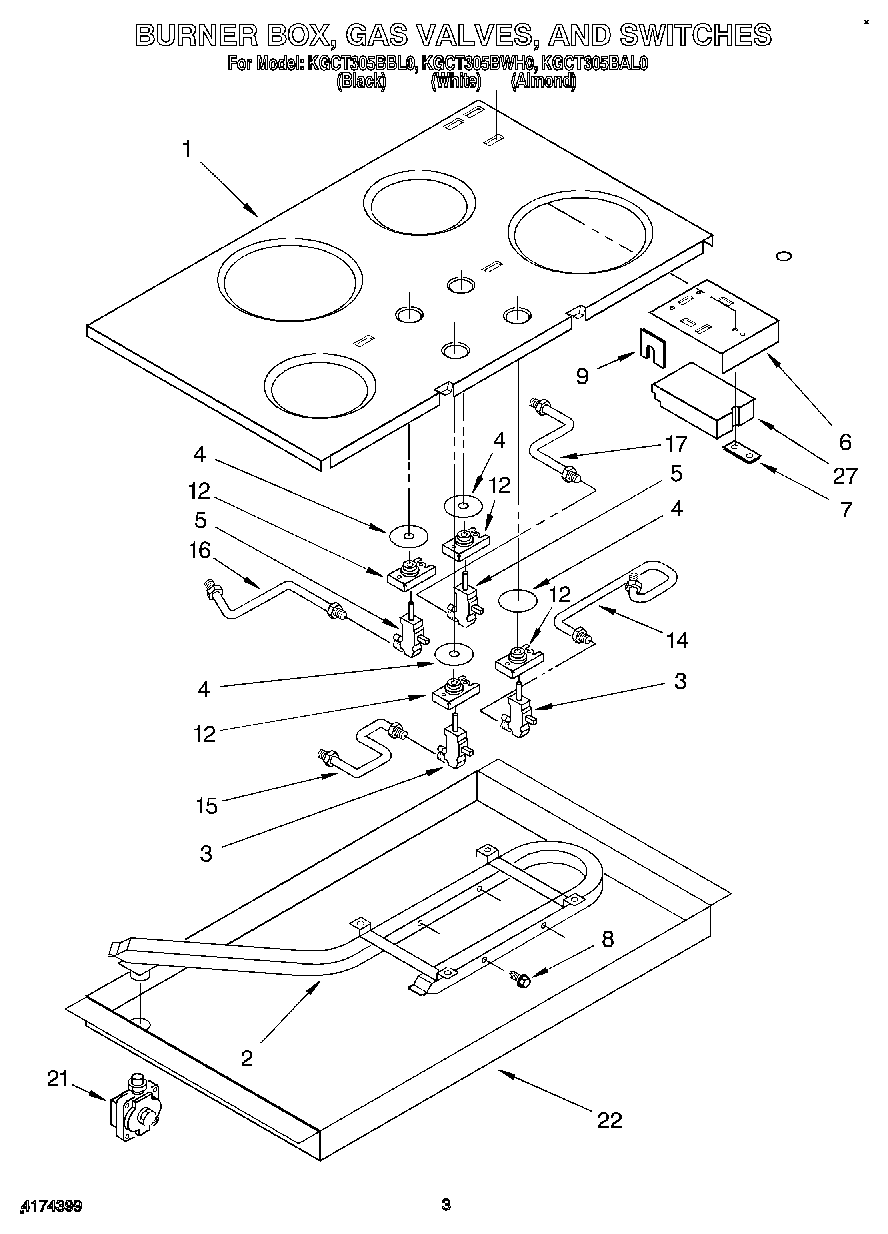

KGCT305BWH0 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
	Hardware, Mounting
	Use & Care Guide
	Wiring Diagram
	Conversion Kit Natural Gas To L.P.
	Cord, Power
	Installation Instructions
	seal, foam tape
	Screw, (2)
	WPW10339879 Whirlpool Wire Tie
1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF & RR)
4	WP3188425 Whirlpool Seal Switch
4	Washer, Flat
5	Valve, Gas Burner (RF & LR)
6	Sheild, Heat
7	Bracket
8	Bolt (Gas Valve)
9	Grommet, Wire Way
12	WP3185830 Whirlpool Oven Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	Burner Box
27	WP4454392 Whirlpool Spark Module
27	Screw
