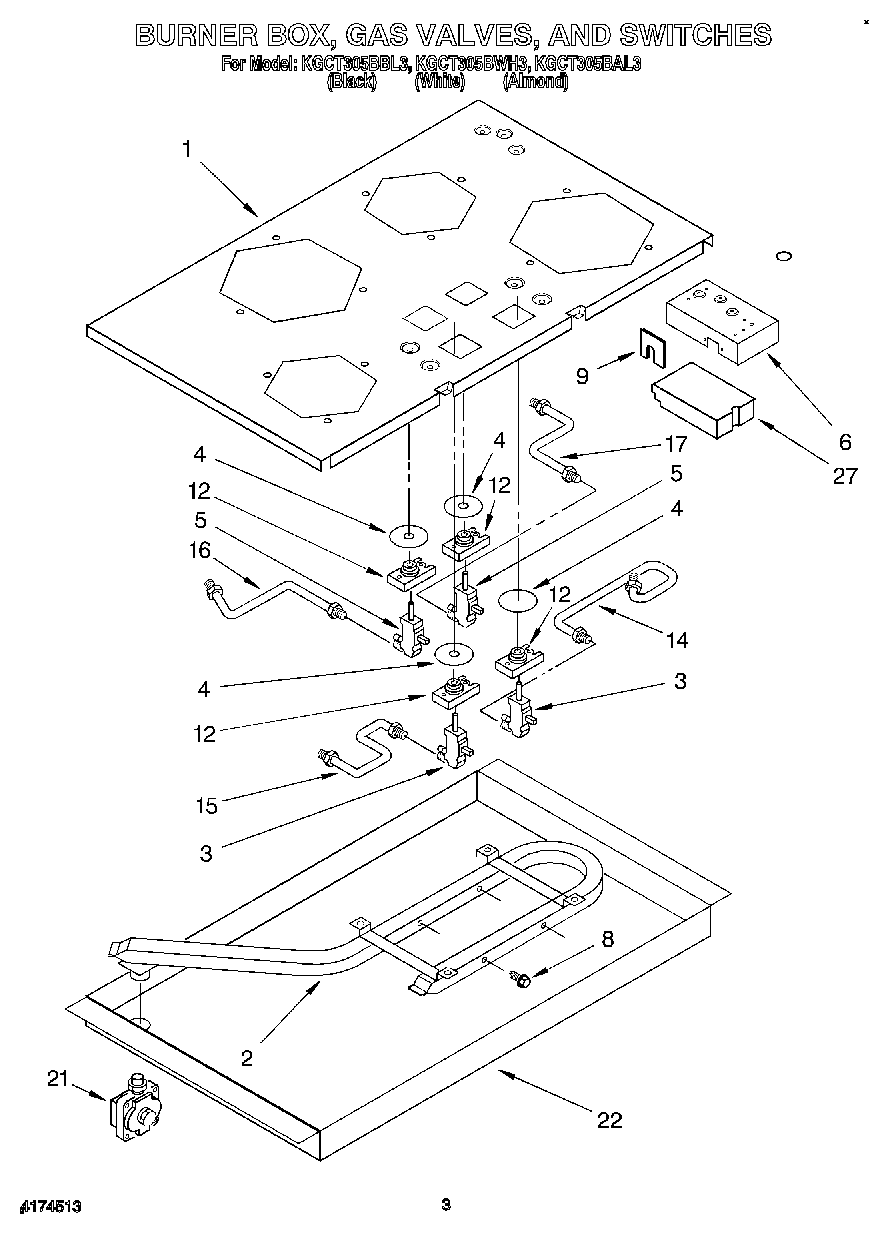

KGCT305BWH3 04 – BURNER BOX, GAS VALVES, AND SWITCHESadmin2025-04-26T11:16:51+00:00KGCT305BWH3 04 – BURNER BOX, GAS VALVES, AND SWITCHES
Products
| Position | Product |
|---|
| Hardware, Mounting |
| Conversion Kit Natural Gas To L.P. |
| seal, foam tape |
| 814323 Whirlpool Range Burner Grate Foot Pads (5 Pack) |
| Wiring Diagram |
| Use & Care Guide |
| WPW10339879 Whirlpool Wire Tie |
| Installation Instructions |
| Nut, Tinnerman (2) |
| Screw |
| 8186533 Whirlpool Hardware |
| Cord, Power |
| 1 | Cover, Top Assy. |
| 2 | WP3177991 Whirlpool Screw |
| 2 | Washer, Flat |
| 2 | Pipe, Manifold |
| 2 | Nut (4) |
| 3 | Valve, Gas Burner (LF, RR, & CR) |
| 4 | WP3188425 Whirlpool Seal Switch |
| 5 | Valve, Gas Burner (RF & LR) |
| 6 | Sheild, Heat |
| 8 | Bolt (Gas Valve) |
| 9 | Grommet |
| 9 | Screw (6) |
| 12 | WP3185830 Whirlpool Oven Igniter Switch |
| 14 | Tubing, Large Gas Burner (RF) |
| 15 | Tubing, Small Gas Burner (LF) |
| 16 | Tubing, Large Gas Burner (LR) |
| 17 | Tubing, Small Gas Burner (RR) |
| 21 | Regulator, Pressure |
| 22 | 4173634 Whirlpool Bushing |
| 22 | Burner Box |
| 27 | Screw |
| 27 | WP4454392 Whirlpool Spark Module |
