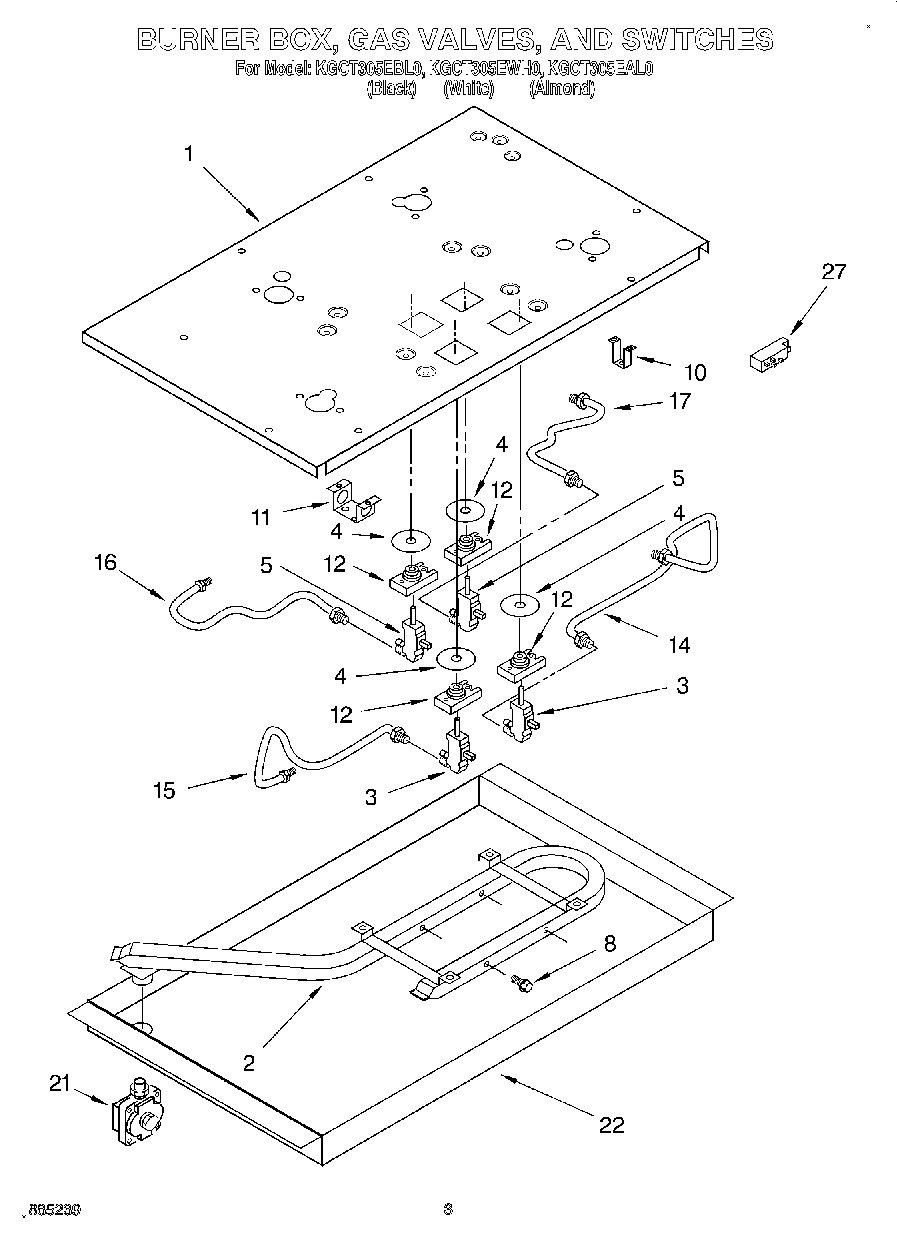

KGCT305EAL0 03 – SECTION

Products

Position	Product
	Installation Instructions
	Use & Care Guide
	Wiring Diagram
1	Backer Plate
2	Pipe, Manifold
2	WP488729 Whirlpool Refrigerator Door Screw
3	Valve, Gas Burner (LF, RR, & CR)
4	WP3188425 Whirlpool Seal Switch
5	Valve, Gas Burner (RF & LR)
8	Bolt (Gas Valve)
10	Bracket, Burner Box (9)
10	Screw (2)
10	WP3177991 Whirlpool Screw
11	Bracket, Burner (4)
11	Screw
12	WP3190779 Whirlpool Igniter Switch
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
21	Regulator, Pressure
22	Burner Box
27	Screw
27	WPW10110491 Whirlpool Spark Module
