KGCT305EBL0 03 – SECTION

Products

PositionProduct
Installation Instructions
Use & Care Guide
Wiring Diagram

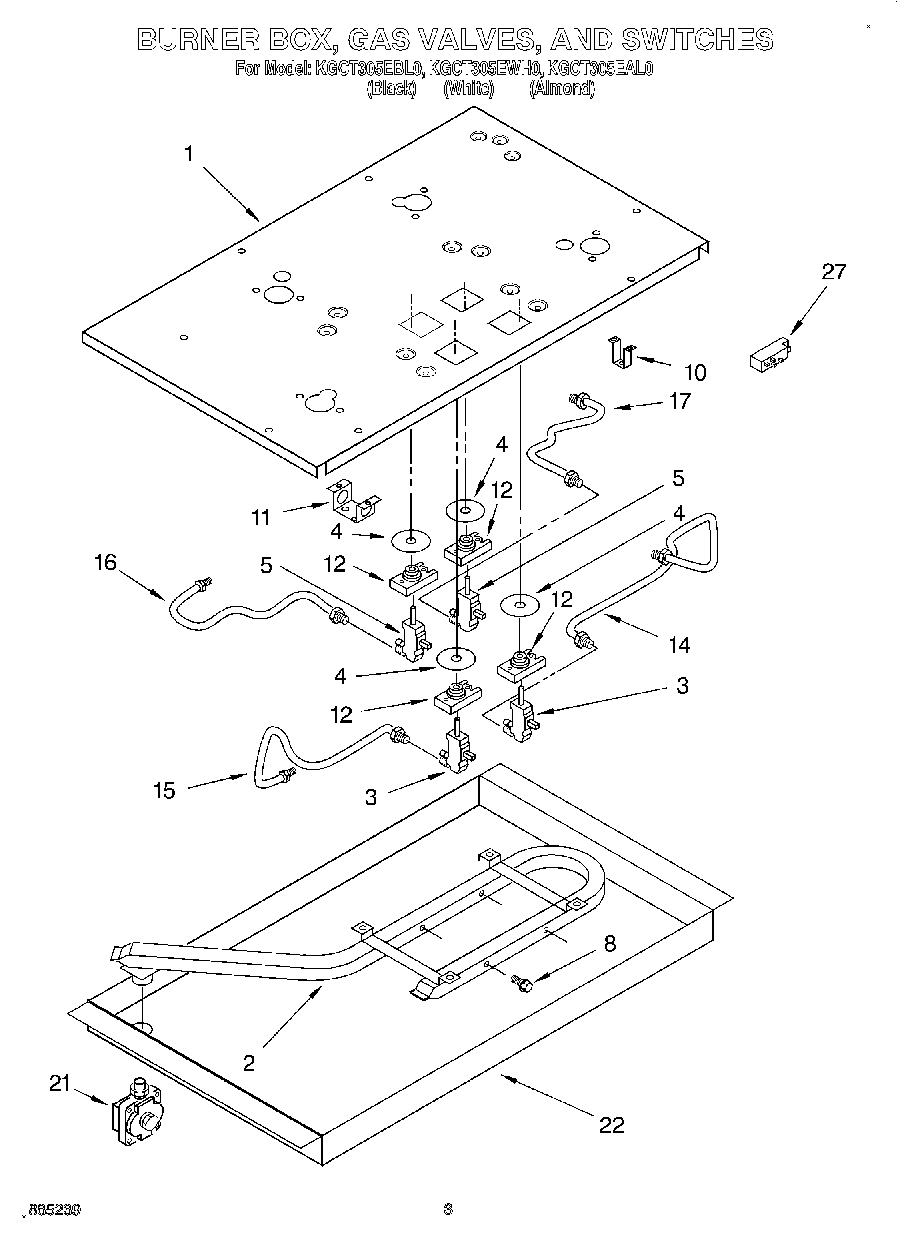

1Backer Plate
2Pipe, Manifold
2WP488729 Whirlpool Refrigerator Door Screw
3Valve, Gas Burner (LF, RR, & CR)
4WP3188425 Whirlpool Seal Switch
5Valve, Gas Burner (RF & LR)
8Bolt (Gas Valve)
10Bracket, Burner Box (9)
10Screw (2)
10WP3177991 Whirlpool Screw
11Bracket, Burner (4)
11Screw
12WP3190779 Whirlpool Igniter Switch
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
21Regulator, Pressure
22Burner Box
27Screw
27WPW10110491 Whirlpool Spark Module
