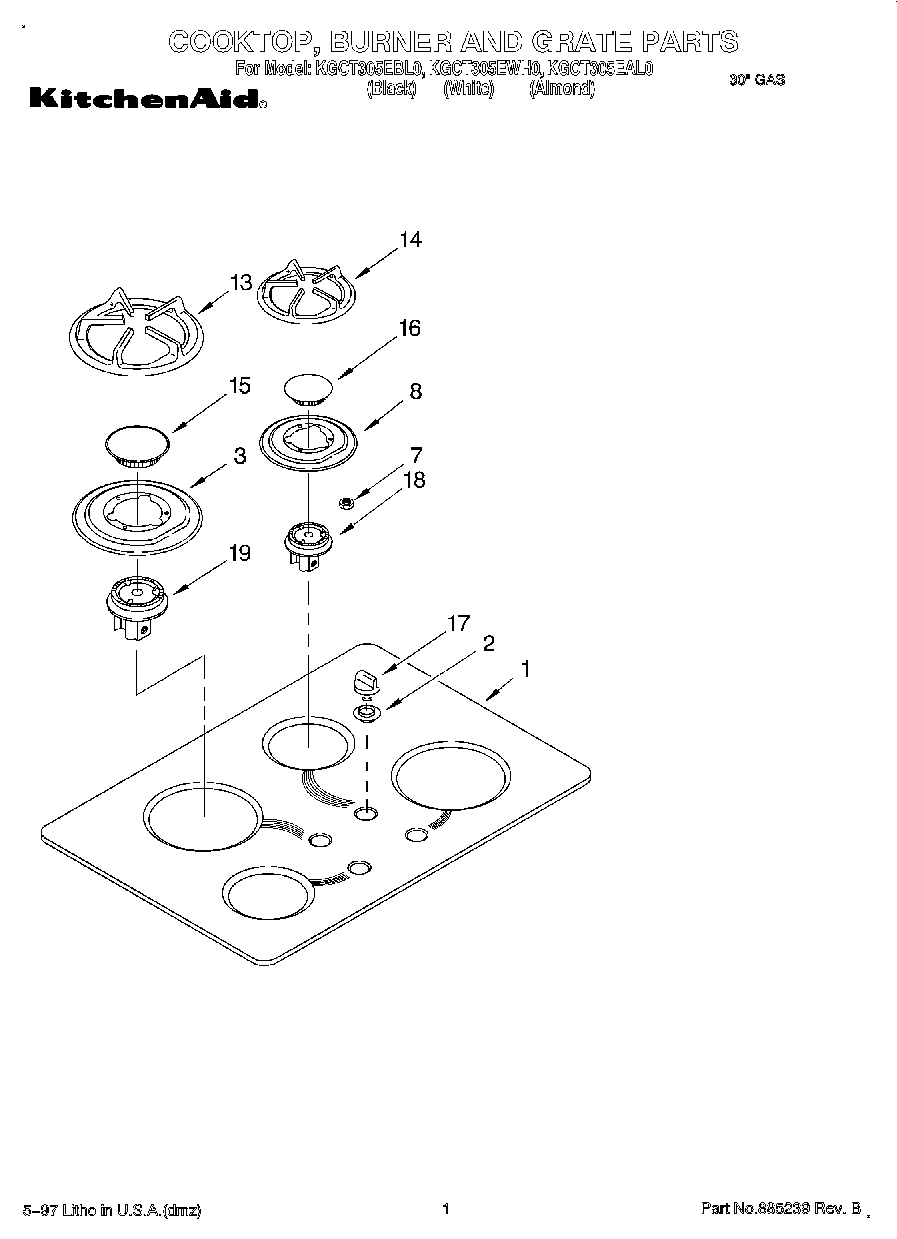

KGCT305EWH0 01 – SECTION
Written by
in
KGCT305EWH0 01 – SECTION
Products
Position
Product
1
Cooktop, Glass (Almond)
1
Cooktop, Glass (Black)
1
Cooktop, Glass (White)
2
W10854242 Whirlpool Grommet
2
WP3180081 Whirlpool Grommet
2
W10854241 Whirlpool Grommet
3
Bezel, Cooktop (Large) (Almond)
3
Bezel, Cooktop (Large) (White)
3
Bezel, Cooktop (Large) (Black)
8
Bezel, Cooktop (Small) (Almond)
8
Bezel, Cooktop (Small) (Black)
8
Bezel, Cooktop (Small) (White)
13
Grate, Large Burner (White Model)
13
Grate, Large Burner (Black Model)
13
Grate, Large Burner (Almond Model)
14
Grate, Burner Small (Almond Model)
14
Grate, Burner Small (White Model)
14
Grate, Burner Small (Black Model)
15
Cap, Rapid Burner Large (2) (Black)
15
Cap, Rapid Burner Large (2) (Almond)
15
Cap, Rapid Burner Large (2) (White)
16
Cap, Semi Rapid Small (2) (Almond Burner (2))
16
Cap, Semi Rapid Small (2) (Black)
16
Cap, Semi Rapid Small (2) (White)
17
WP3182569 Whirlpool Knob
17
WP3182568 Whirlpool Control Knob
17
WP3182567 Whirlpool Oven Knob
18
Burner, Small (2)
19
Burner, Large (2)
←
