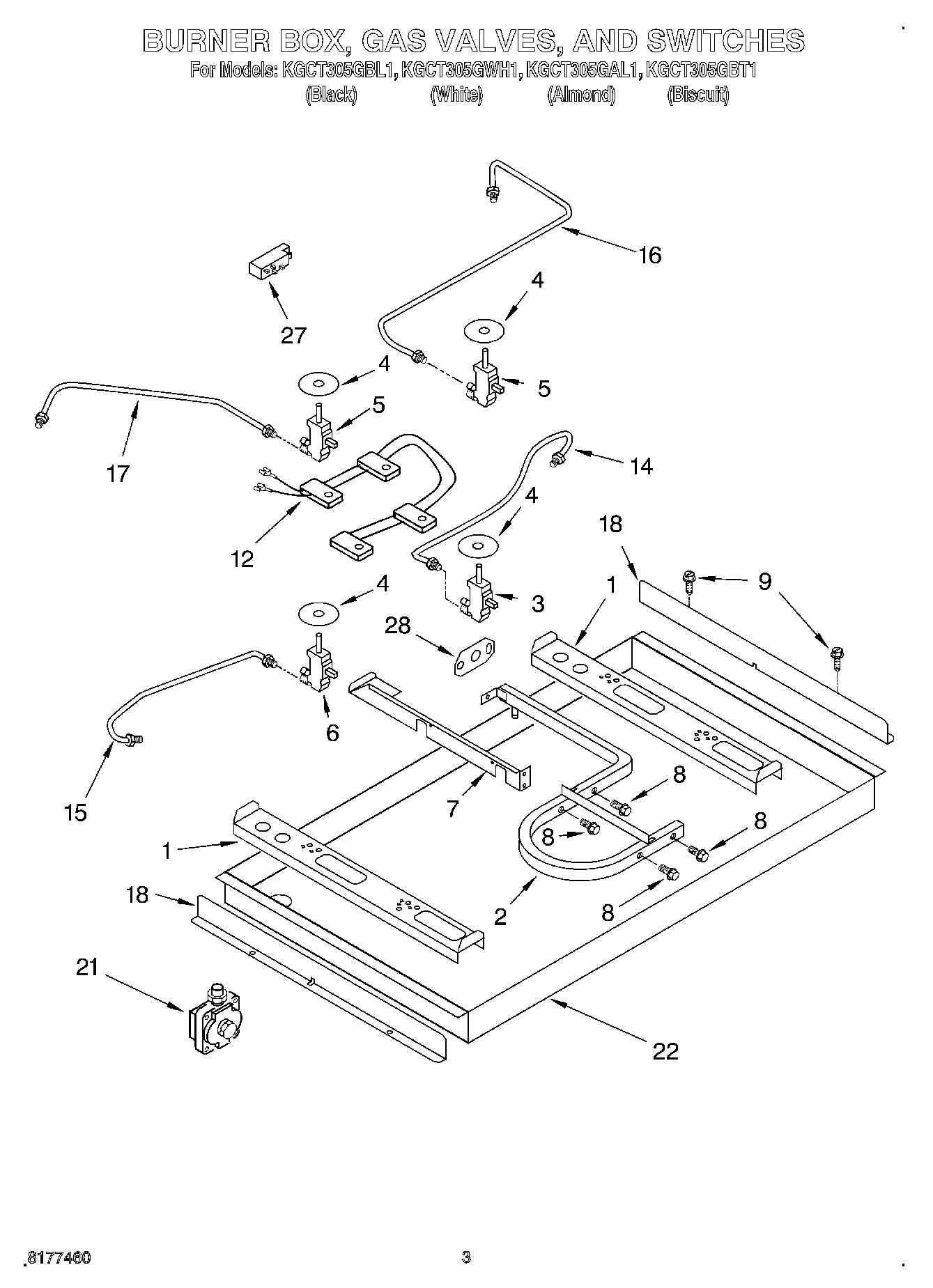

KGCT305GBL1 02 – SECTION

Products

Position	Product
	Hardware, Mounting
	28“
	WPL 3191239
	Conversion Kit Natural Gas To L.P.
	WP3177991 Whirlpool Screw
	4173634 Whirlpool Bushing
	W10392007 Whirlpool Power Cord
	Literature Parts (Use & Care Guide)
	Conversion Instructions
	Nut, Tinnerman (2)
	8186533 Whirlpool Hardware
	Wiring Diagram
	Installation Instructions
	15“
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt, Gas Valve
12	WP3191334 Whirlpool Wire Harness
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	WP8053421 Whirlpool Oven Spark Module
28	3192491 Whirlpool Support Bracket
