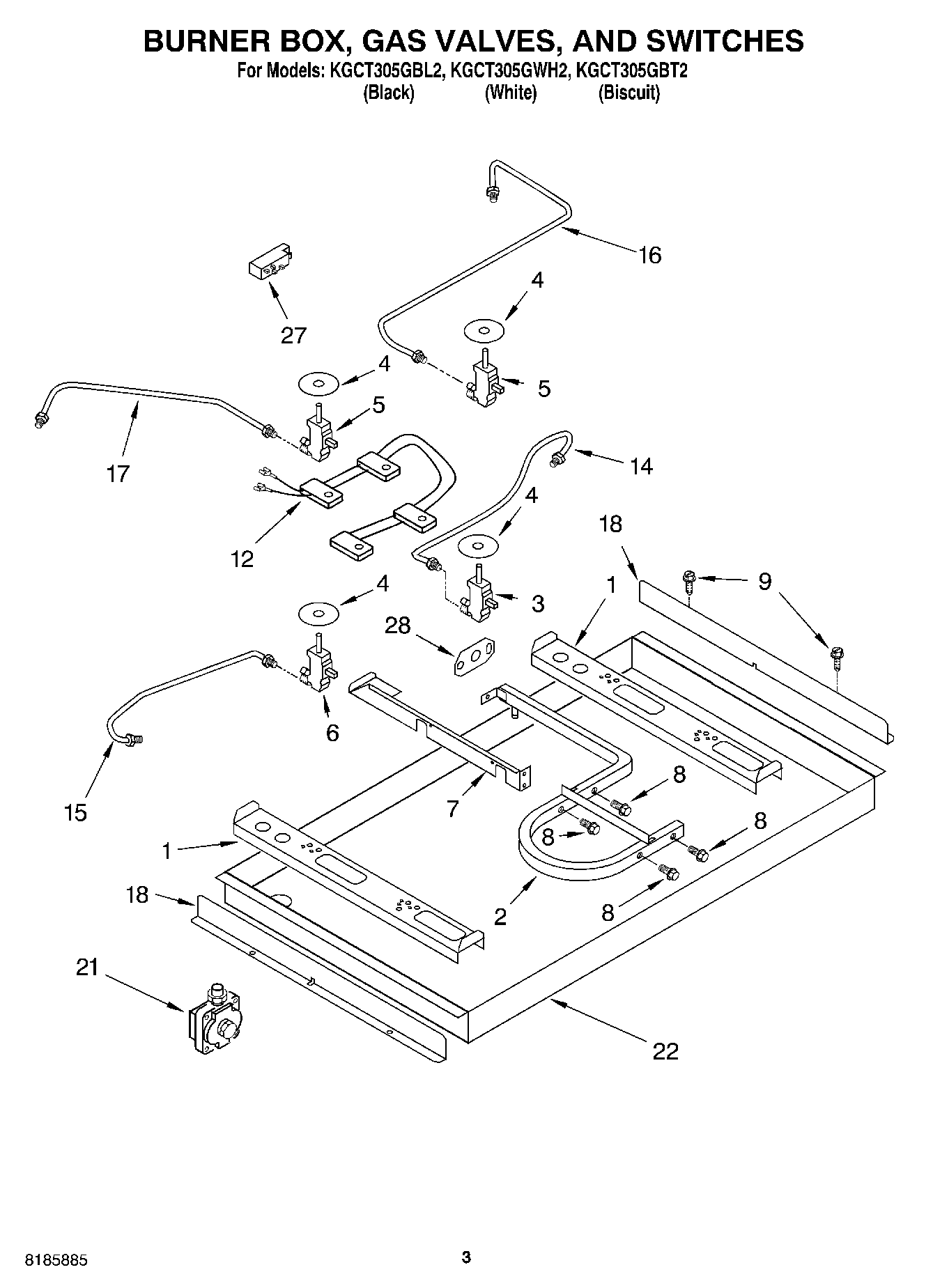

KGCT305GBT2 02 – SECTION

Products

Position	Product
1	W10203756 Whirlpool Support
2	Pipe, Manifold
3	Valve, Burner (Small (1))
4	WP3188425 Whirlpool Seal Switch
5	Valve, Burner (Large (3))
6	Valve, Burner (Silver)
7	Rail, Center
8	Bolt (Gas Valve)
12	WP3191334 Whirlpool Wire Harness
14	3191324 Whirlpool Oven Gas Tubing
15	Tubing, Burner (LF)
16	Tubing, Burner (RR)
17	Tubing, Gas Burner (LR)
18	3191462 Whirlpool Oven Heat Shield
21	Regulator, Pressure
22	Burner Box
27	WPW10110491 Whirlpool Spark Module
27	WP12990527 Whirlpool Microwave Screw
28	Conversion Kit Natural Gas To L.P.
28	WPL 3191239
28	28“
28	15“
28	3192491 Whirlpool Support Bracket
28	WP3177991 Whirlpool Screw
28	4173634 Whirlpool Bushing
28	W10392007 Whirlpool Power Cord
28	Nut, Tinnerman (2)
28	8186533 Whirlpool Hardware
28	Hardware, Mounting
