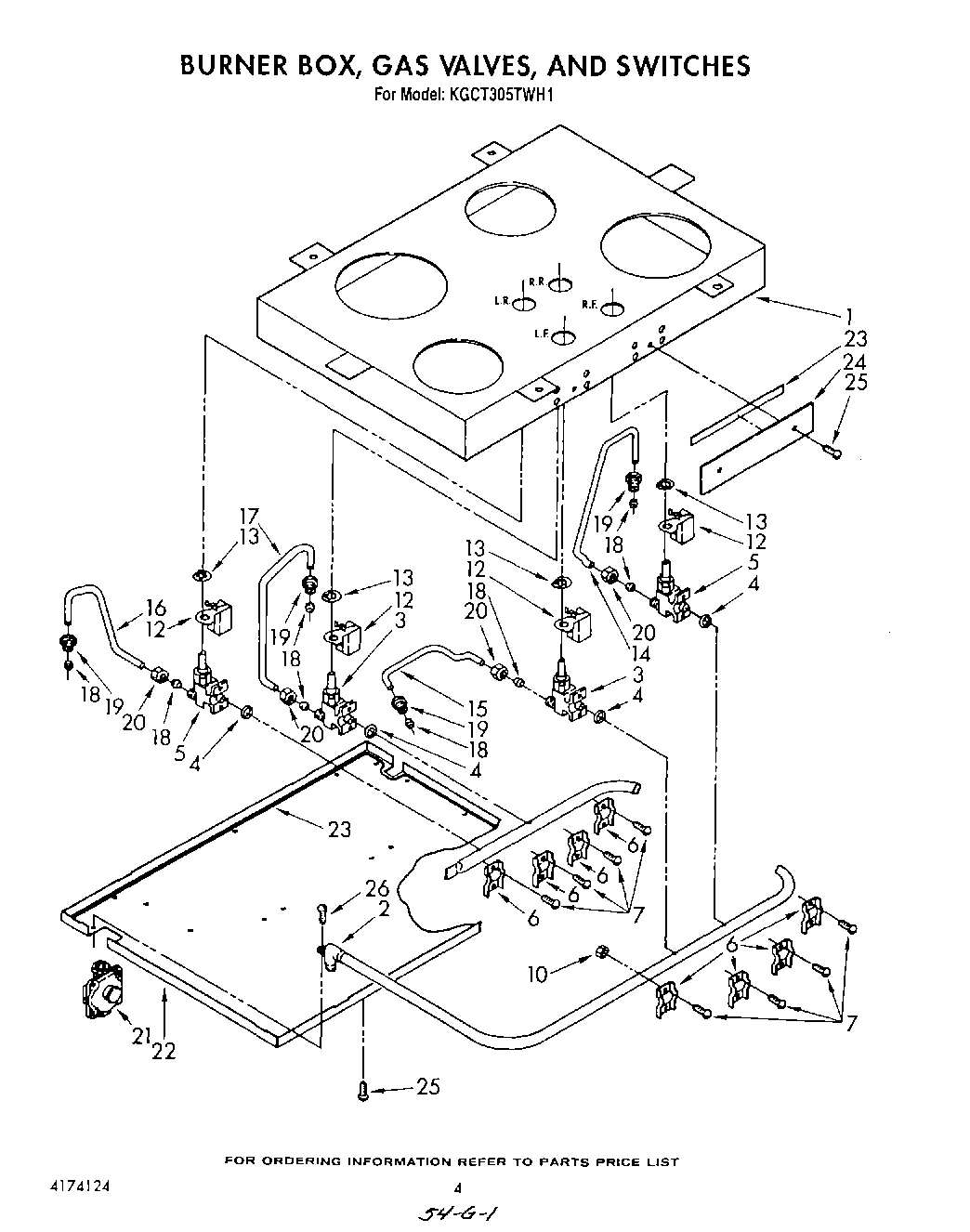

KGCT305TAL1 03 – BURNER BOX, GAS VALVES,AND SWITCHES

Products

Position	Product
	Guide, Use & Care
	List, Repair Parts
	Installation Instructions
1	Box, Burner
2	Pipe, Manifold (Complete With Elbow Connector)
3	Valve, Gas Burner (LF & RR) (Includes Illus. 4)
4	Washer, Gas Valve Sealing (4)
5	Valve, Gas Burner (RF & LR) (Includes Illus. 4)
6	Bracket, Clamp (4) (Manifold)
7	Screw, Gas Valve To Manifold (8)
10	Nut, Manifold Bracket (8)
12	Switch, Gas Burner Ignition (Includes Illus. 13)
13	Clip, Burner Switch (4)
14	Tubing, Large Gas Burner (RF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
18	Sleeving, Gas Tube (8)
19	Nut, Gas Tubing (Burner End) 4
20	Nut, Gas Tubing (Gas Valve End) 4
21	Regulator, Pressure
22	Cover, Burner Box (Includes Illus. No. 23)
23	Seal, Burner Box
24	Cover, Access (Includes Illus No. 23)
25	Screw, Mounting (Burner Box/Access Cover)
26	Screw, Manifold Mounting (At Elbow)
