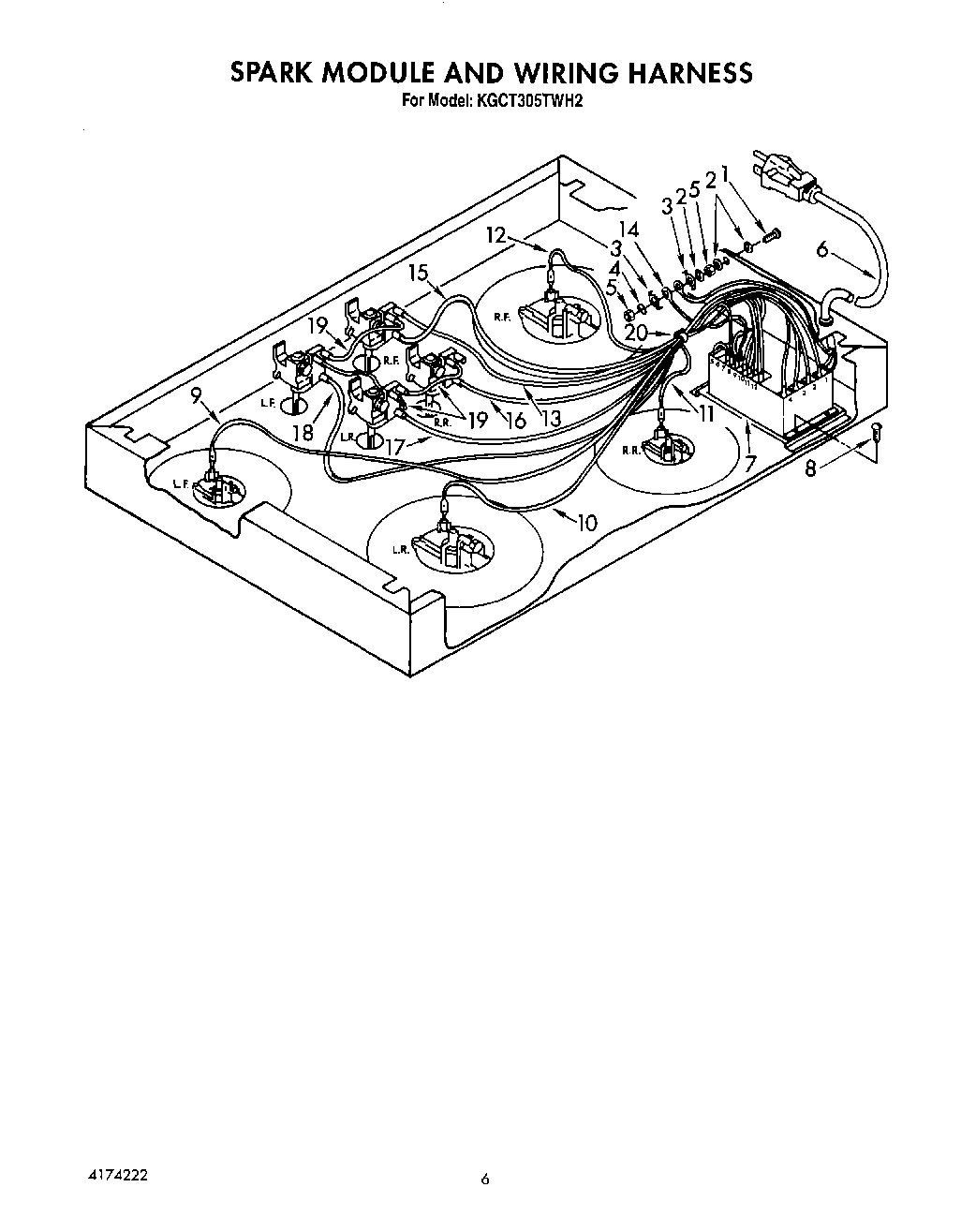

KGCT305TAL2 05 – SPARK MODULE AND WIRING HARNESSadmin2025-04-26T11:18:10+00:00KGCT305TAL2 05 – SPARK MODULE AND WIRING HARNESS ProductsPositionProduct1Screw, Grounding2Washer, Internal Tooth Grounding3Clamp, Washer (Copper)4Washer, Coil Spring5Nut, Hex (Brass)6Cord, Power7WP4454392 Whirlpool Spark Module8Screw, Spark Module (3)10Wire Assembly No.2 (White) (Spark Module to LR Jet Lighter Electrode)11Wire Assembly No.3 (White) (Spark Module to RR Jet Lighter Electrode)12Wire Assembly No.4 (White) (Spark Module to RF Jet Lighter Electrode)13Wire Assembly No.7 (Black) (Spark Module to RF Burner Switch)14Wire Assembly No.8 (Green/Yellow) (Spark Module to Ground)15Wire Assembly No.9 (Red) (Spark Module to RF Burner Switch16Wire Assembly No.10 (Red) (Spark Module to RR Burner Switch)17Wire Assembly No.11 (Red) (Spark Module To LR Burner Switch)18Wire Assembly No.12 (Red) (Spark Module to LF Burner Switch)19Wire Assembly No.13 14, and 15 (Black) (Loop Wires for Burner Switches)20Tie, Cable (Harness Wires)
